Road-environment audit · SSI v0.3

The road outsideHelios International School

S. No 7/1B/27B Wadgaon Bk, Sun City Rd, next to Sun Empire Road, II, Anand Nagar, Pune, Maharashtra 411051, India18.47383, 73.81195audited 2026-09-04

29/100

Unsafeprovisional band

Unsafe. Very little on this road protects a child crossing to the gate.

Of the five things we check, 2 are missing entirely.

This road · 29

0 · no protectioncomplete protection · 100

Checked twice, independently

Two AI readers on separate accounts · corrections logged in public

Confirmed

Corrected

Unresolved

See how each was judged

Of 153 roads scored so far, this one ranks 142 (worst first). The others scored between 0 and 41.

23.75points earned

69.25points we could see (69%)

34.3%provision

0.85exposure — collector

29.2provision × exposure

→

29SSI · rounded to nearest · v0.3

Only what the imagery could actually resolve is scored (69% of the rubric here); the rest is left uncounted rather than guessed. A road with full protective infrastructure scores near 100.

The road in context · derived from public data

Where this road sits

Before the checks: what kind of road this is, how it meets other roads, and what passes it. These lines describe the road and its surroundings — they do not change the score.

Road layout around the gate, drawn from OpenStreetMap — Road layout · drawn from OpenStreetMap · blue dot = school coordinate

FrontageThe gate opens onto a collector road (Suncity Road), on its W side

Junctionthe gate area sits at a 3-leg junction

Street activity6 mapped shops within 150 m (OpenStreetMap)

Crash recordcrash-location data is not yet available for Delhi — this line will be added when a public source lands

Exposure contextModerate — 39/100 (partial: no crash component yet). Describes how much traffic and crash risk passes this road — context only, never part of the road score (method: exposure v1, Data page)

Road layout data © OpenStreetMap contributors (ODbL), retrieved 13 Aug 2026 · crash data: Jaipur Police · derivations: `exposure_v1` on the Data page.

What we found · five checks · IRC:SP:32-2023

Five things we checked — and the photo behind each

Each check was read once, then verified blind by a second reader on a separate account. The photo each finding came from sits right beside it. Tap “see how this was judged” for the full reasoning.

Slowing traffic downP1 · Physical speed control

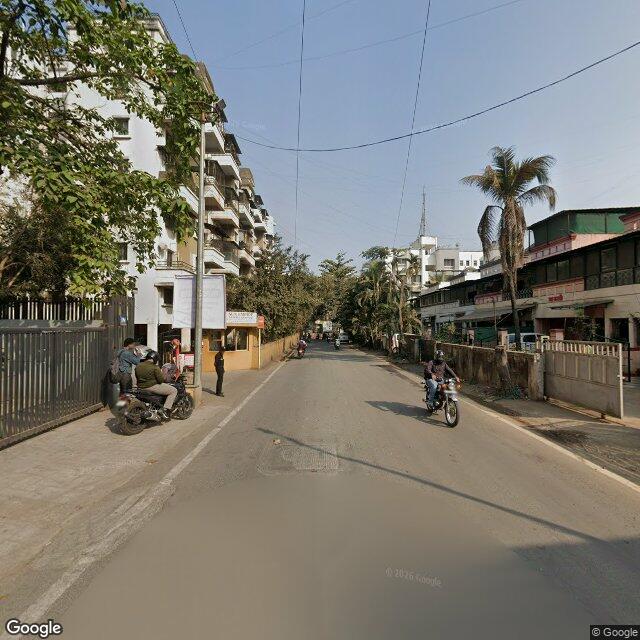

Nothing slows traffic at the gate

No speed hump, table or rumble strip on the approach — vehicles reach the gate at full speed.

Absent

0 of 30 points

LevelNone (L0)

Points0 of 30

ConfidenceHigh

Coverage seen≈75%

VerificationConfirmed — both readers agreed

The full reasoning

No speed hump, table, rumble strip or markings-based speed device visible on any usable approach or at the gate. Carriageway surface reads flat across multiple consistent views.

◑

Getting across the roadP2 · Safe crossing

A marked crossing in the zone

A legible marked crossing is present in the school zone.

Partial

12.5 of 25 points

LevelBasic (L2)

Points12.5 of 25

ConfidenceMed

Coverage seen≈55%

VerificationConfirmed — both readers agreed

The full reasoning

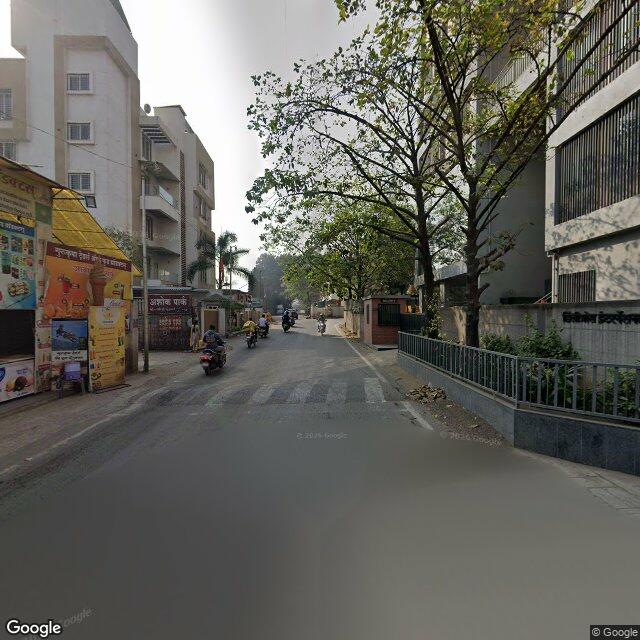

One legible marked zebra crossing with fresh white bars visible on the main frontage near the gate panorama (jEFMpYJl8jJr h180). Road is undivided ~2 lanes so no refuge required. Level held at L2: only a single clear view, so distance-to-gate (<20 m) cannot be confirmed at HIGH confidence for L3, and the crossing is flat/painted, not raised or signalised.

◑

Walking without stepping into trafficP3 · Footpath & separation

A broken walking edge

A walking edge exists but is broken or blocked for most of the frontage.

Partial

6.25 of 25 points

LevelMinimal (L1)

Points6.25 of 25

ConfidenceHigh

Coverage seen≈70%

VerificationConfirmed — both readers agreed

The full reasoning

Collector class expects raised footpath. A raised tiled footpath/plinth with metal railing runs in front of the school building on one side near the gate, but along most of the 174 m frontage the edges are earthen shoulders, compound walls with no walkway, or shop frontages with direct carriageway access; discontinuous overall. Parked vehicles ignored.

Being seen and expectedP4 · Signage & zone identity

No school-zone signs

Drivers get no warning that a school gate is here.

Absent

0 of 10 points

LevelNone (L0)

Points0 of 10

ConfidenceHigh

Coverage seen≈70%

VerificationConfirmed — both readers agreed

The full reasoning

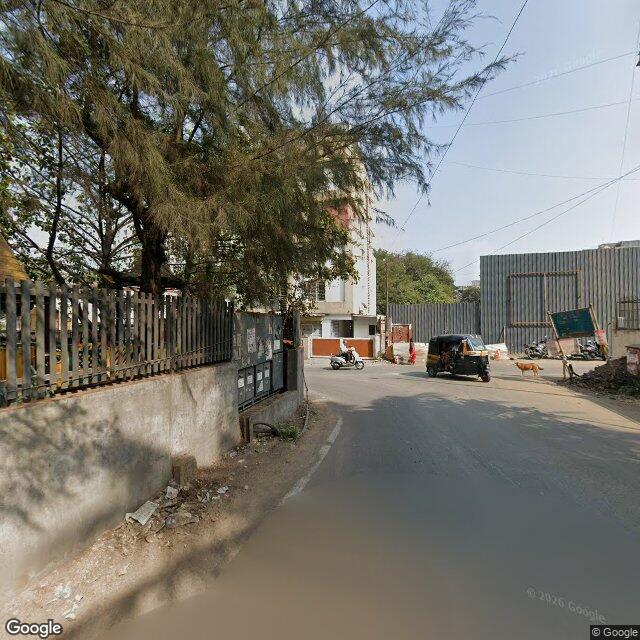

No school-warning sign, no speed-limit sign and no carriageway speed stamp visible on either approach to the gate. Only a distant green directional sign (FpUIOi1 h070) and building/name boards are present; the school name board is identity signage, not a road school-warning asset.

◑

The gate itselfP5 · Gate environment

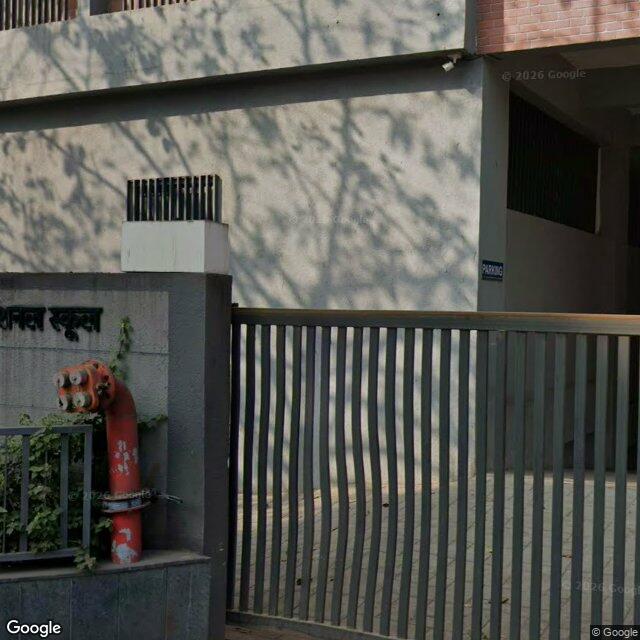

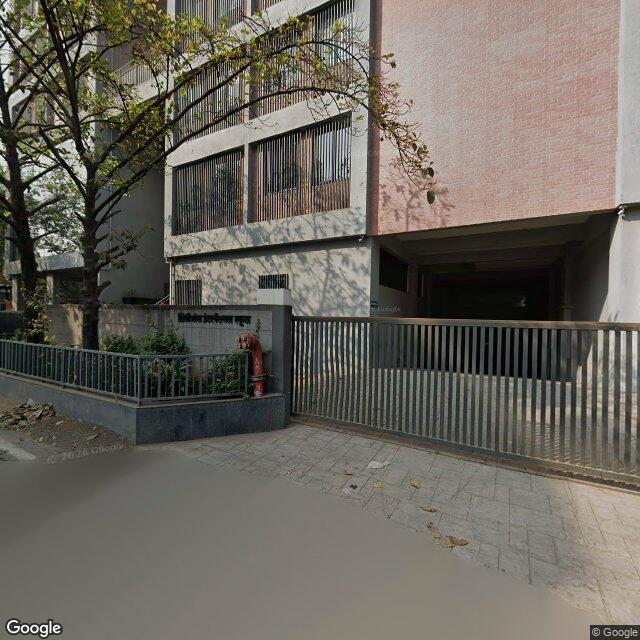

Space and a railing at the gate

A clear setback or railing gives room to gather off the carriageway.

Partial

5 of 10 points

LevelBasic (L2)

Points5 of 10

ConfidenceHigh

Coverage seen≈85%

VerificationConfirmed — both readers agreed

The full reasoning

Gate has a clear off-carriageway setback: a raised tiled forecourt/plinth with a metal railing line along the frontage giving assembly space away from the carriageway. L3 not confirmed: gate is a full-width sliding vehicle/parking rail; no distinct separate pedestrian opening is visible in the zoom and the railing cannot be confirmed continuous gate-to-crossing.

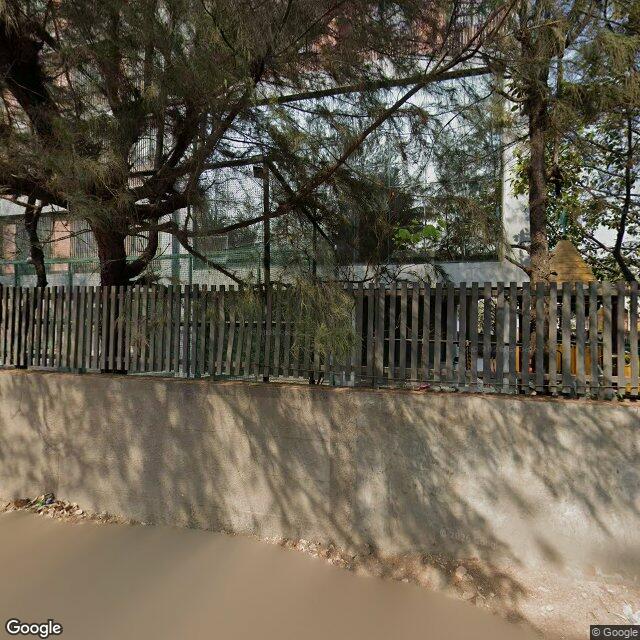

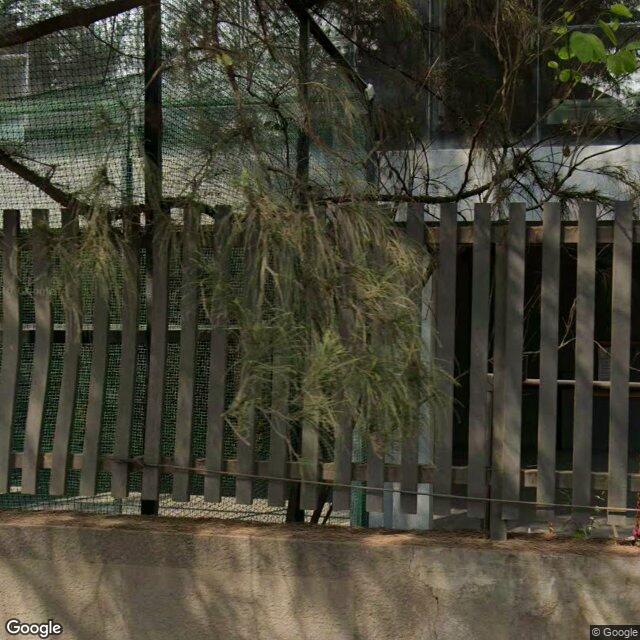

At the gate

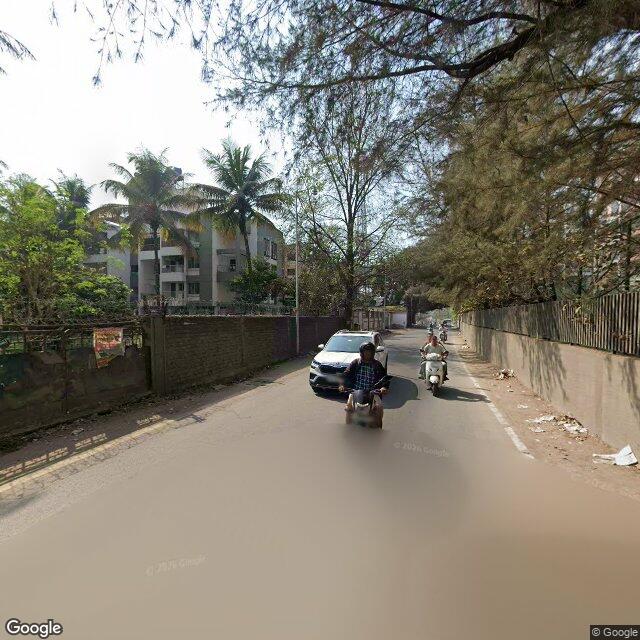

On the frontage road

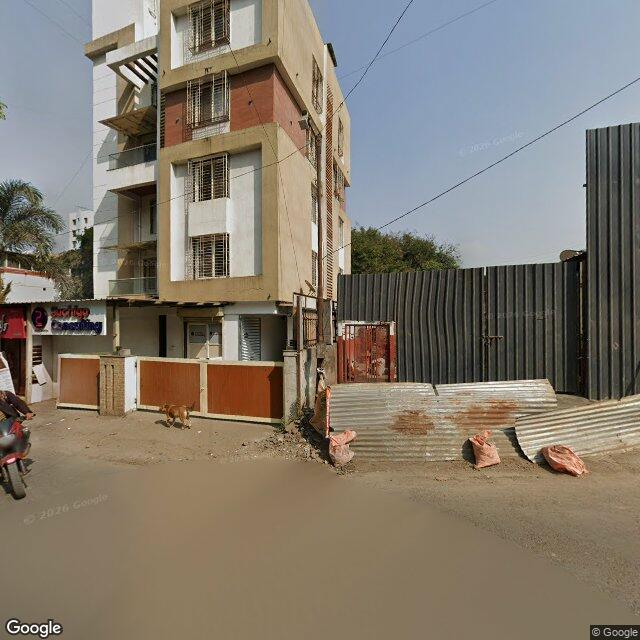

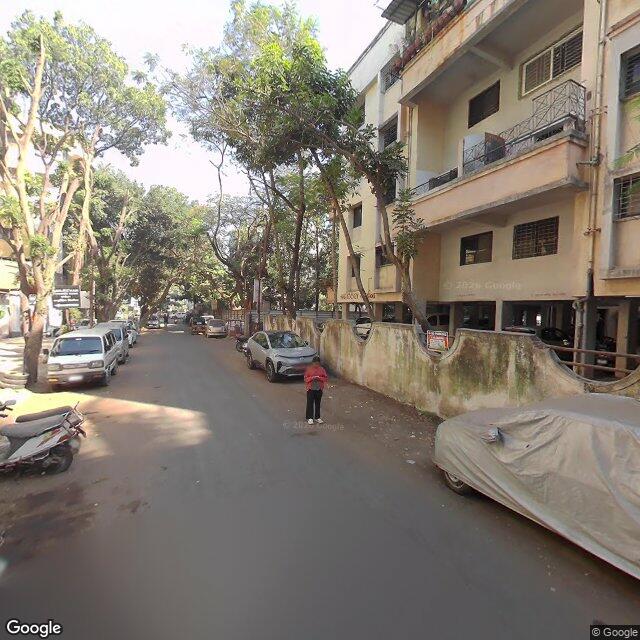

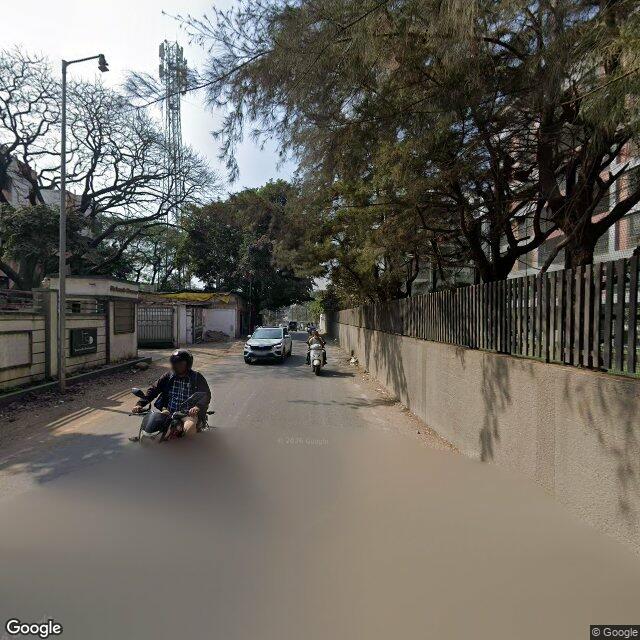

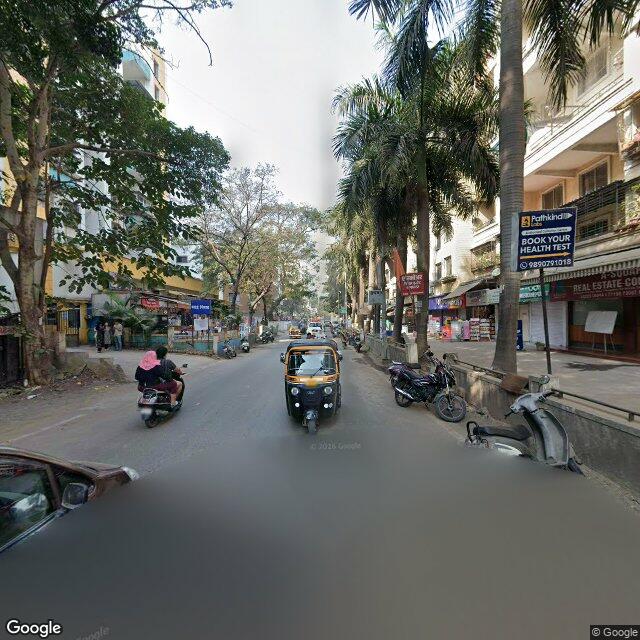

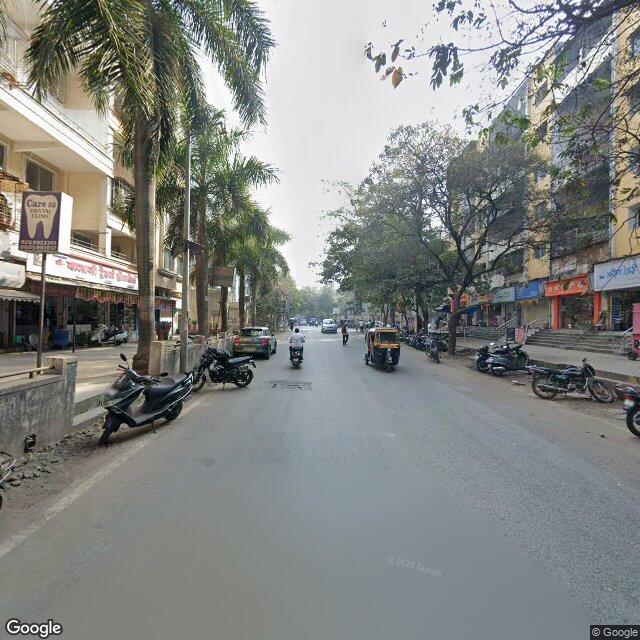

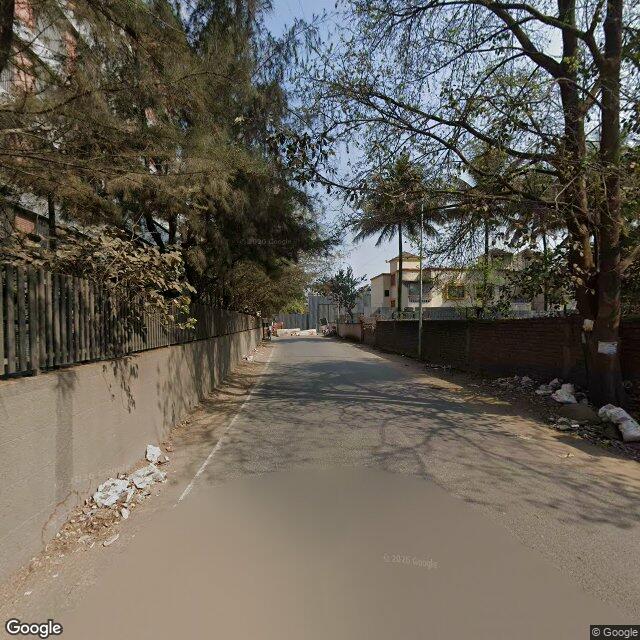

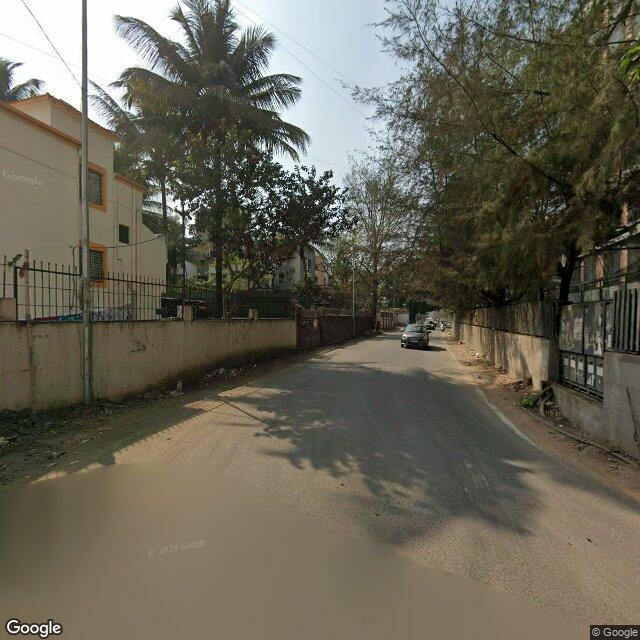

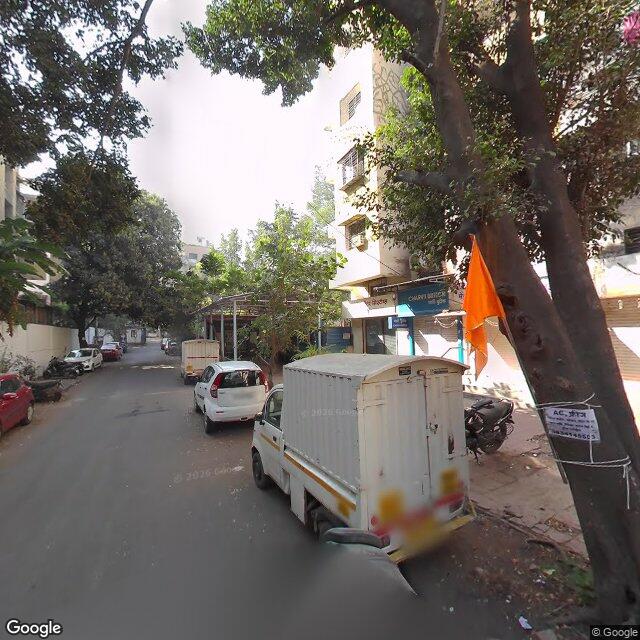

Along the street

Some captures sit on neighbouring lanes; older ones are shown greyed and were used only for context.

What must be fixed · 5 actions

What would make this road safe — and who owns each fix

Each action maps to a failing check, the relevant IRC:SP:32-2023 clause, and the responsible agency. Agency labels are provisional and correctable through the dispute channel.

01Lifts P1

Install a speed table or twin speed humps within 30 m of the gate

IRC:SP:32-2023 §5.13 · Table 5.1MCD / PWD · provisional

Speed humps near schools roughly halve child-pedestrian injury odds (Tester 2004); 30 km/h calmed zones ≈ 40% fewer casualties (Grundy 2009).

02Lifts P3

Provide a continuous clear walking edge on the school side

IRC:SP:32-2023 §5.4.1MCD / PWD · provisional

A continuous footpath keeps children off the carriageway on the approach, not only at the gate.

03Lifts P2

Mark a crossing within 20 m of the gate — table-top preferred

IRC:SP:32-2023 §5.4.3MCD / PWD · provisional

Raised crossings cut vehicle speeds at the exact conflict point.

04Lifts P4

School-zone warning signs on both approaches with the speed limit

IRC:SP:32-2023 §5.8MCD / PWD · provisional

The zone must announce itself to drivers before the gate.

05Lifts P5

Add space and a marked pick-up bay off the carriageway at the gate

IRC:SP:32-2023 §5.2MCD / PWD · provisional

Children should not step from the gate into a moving traffic lane.

Responsible-agency labels come from the CFI field instrument’s mapping and are correctable via the dispute channel.

Re-audit timeline

2026-09-04Audited

2027-03-07Re-audit due

Every published road is re-read every six months, or as soon as new Street View imagery lands, or on a sustained dispute.

Something wrong on this page?

The entrance, the imagery, a finding — if any of it is wrong, tell us. A dispute pauses this page while the audit is re-verified, and the correction is logged in the public record.

Dispute this audit
