Road-environment audit · SSI v0.3

The road outsideBVB Paranjape Vidya Mandir

S. No. 40, Hissa No. 1, 2, 3, Near Kothrud Telephone Exchange, Kothrud, Londhe Wada, Chaitanya Nagar, Kothrud, Pune, Maharashtra 411038, India18.50183, 73.80880audited 2026-08-06

16/100

Critically unsafeprovisional band

Critically unsafe. Almost nothing on this road protects a child from traffic on the way to the gate.

Of the five things we check, 2 are missing entirely.

This road · 16

0 · no protectioncomplete protection · 100

Checked twice, independently

Two AI readers on separate accounts · corrections logged in public

Confirmed

Corrected

Unresolved

See how each was judged

Of 153 roads scored so far, this one ranks 117 (worst first). The others scored between 0 and 41.

13.75points earned

63points we could see (63%)

21.8%provision

0.75exposure — arterial

16.4provision × exposure

→

16SSI · rounded to nearest · v0.3

Only what the imagery could actually resolve is scored (63% of the rubric here); the rest is left uncounted rather than guessed. A road with full protective infrastructure scores near 100.

The road in context · derived from public data

Where this road sits

Before the checks: what kind of road this is, how it meets other roads, and what passes it. These lines describe the road and its surroundings — they do not change the score.

Road layout around the gate, drawn from OpenStreetMap — Road layout · drawn from OpenStreetMap · blue dot = school coordinate

FrontageThe gate opens onto an arterial road (DP Road), on its S side

Junctionthe gate area sits at a 8-leg junction

Street activity4 mapped shops within 150 m (OpenStreetMap)

Crash recordcrash-location data is not yet available for Delhi — this line will be added when a public source lands

Exposure contextElevated — 55/100 (partial: no crash component yet). Describes how much traffic and crash risk passes this road — context only, never part of the road score (method: exposure v1, Data page)

Road layout data © OpenStreetMap contributors (ODbL), retrieved 13 Aug 2026 · crash data: Jaipur Police · derivations: `exposure_v1` on the Data page.

What we found · five checks · IRC:SP:32-2023

Five things we checked — and the photo behind each

Each check was read once, then verified blind by a second reader on a separate account. The photo each finding came from sits right beside it. Tap “see how this was judged” for the full reasoning.

Slowing traffic downP1 · Physical speed control

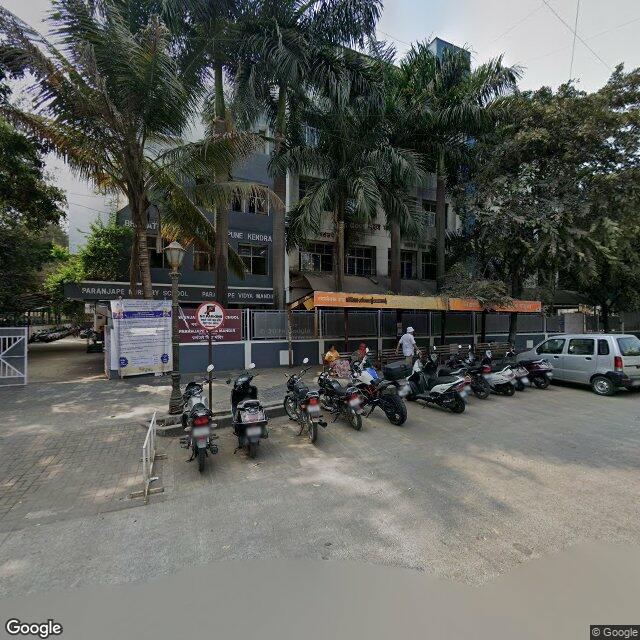

Nothing slows traffic at the gate

No speed hump, table or rumble strip on the approach — vehicles reach the gate at full speed.

Absent

Also cited for this check

0 of 30 points

LevelNone (L0)

Points0 of 30

ConfidenceHigh

Coverage seen≈65%

VerificationConfirmed — both readers agreed

The full reasoning

Frontage carriageway surface visible in multiple road/traverse views (--ce0AtPeOaq_h203, p-zAmSXihEar_h203, HT96F/Ui-pPU traverse) shows smooth asphalt with no speed hump, raised table, or rumble/marking-based device on either approach to the gate.

Getting across the roadP2 · Safe crossing

No safe place to cross

No marked or raised pedestrian crossing at or near the gate.

Absent

Also cited for this check

0 of 25 points

LevelNone (L0)

Points0 of 25

ConfidenceHigh

Coverage seen≈65%

VerificationConfirmed — both readers agreed

The full reasoning

No marked pedestrian crossing visible on the frontage or at the gate. Road in front of the gate and the divided carriageway show no zebra/ladder markings; only a dashed centre lane line appears further along. Median-divided carriageway would require a refuge for any L3+ crossing, none present.

◑

Walking without stepping into trafficP3 · Footpath & separation

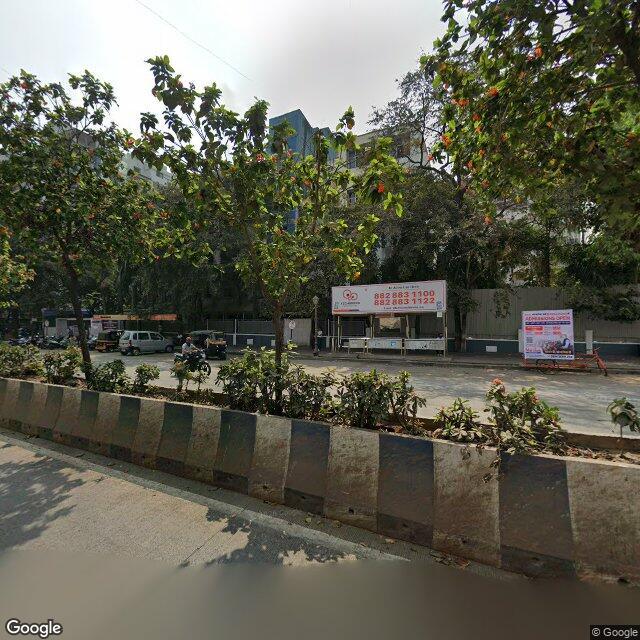

A broken walking edge

A walking edge exists but is broken or blocked for most of the frontage.

Partial

Also cited for this check

6.25 of 25 points

LevelMinimal (L1)

Points6.25 of 25

ConfidenceMed

Coverage seen≈55%

VerificationConfirmed — both readers agreed

The full reasoning

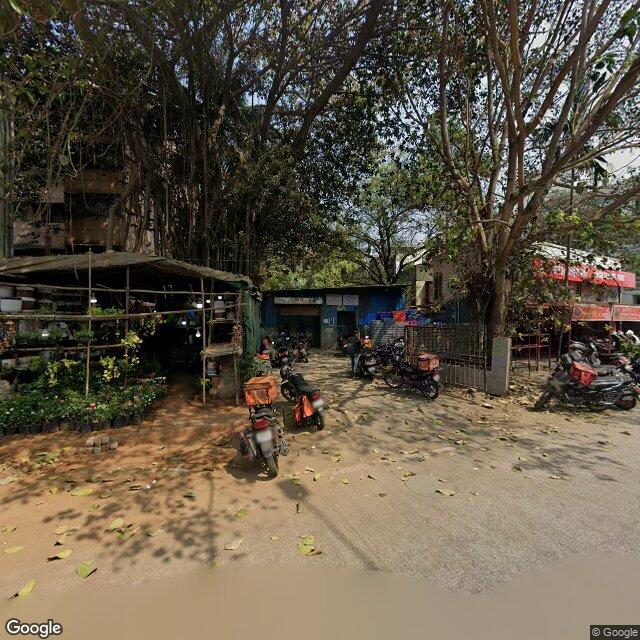

Arterial requires raised footpath. School side has a paved forecourt/apron behind a low plinth and railing but no clear continuous raised linear footpath, and it is a forecourt rather than a through walkway. Opposite frontage (plant nursery/shops) is unpaved/dirt with no raised footpath. Continuous usable raised footpath not established on either side; walkable edge broken/absent along most of frontage (permanent condition, parked vehicles excluded).

◑

Being seen and expectedP4 · Signage & zone identity

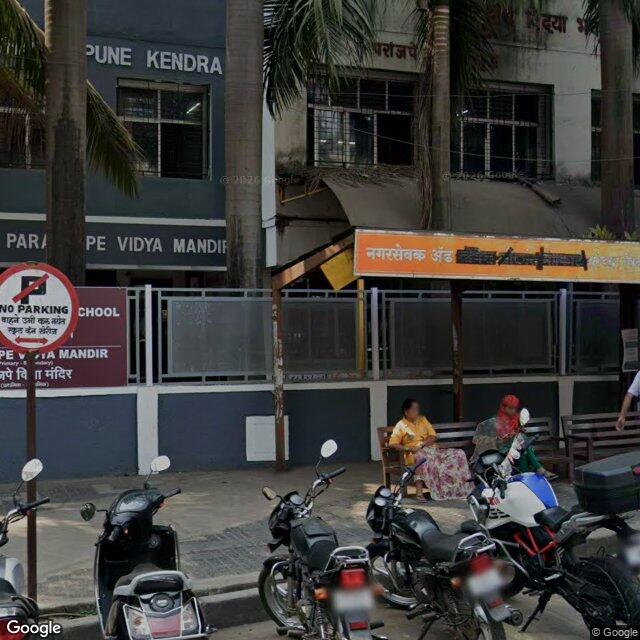

One school-warning sign

A single school-warning sign — not the full set.

Partial

2.5 of 10 points

LevelMinimal (L1)

Points2.5 of 10

ConfidenceMed

Coverage seen≈55%

VerificationConfirmed — both readers agreed

The full reasoning

A school-identity board is posted at the gate (red board reading 'NO PARKING ... SCHOOL / PARANJAPE VIDYA MANDIR'), legible in both gate zooms. It is a regulatory no-parking board referencing the school rather than a standard triangular school-children warning sign; graded L1 marginally on school-zone identity. No speed-limit sign or carriageway speed stamp visible; no 2023-identity assets (yellow-green faces, zone-start/transition signs, beacons).

◑

The gate itselfP5 · Gate environment

Space and a railing at the gate

A clear setback or railing gives room to gather off the carriageway.

Partial

5 of 10 points

LevelBasic (L2)

Points5 of 10

ConfidenceHigh

Coverage seen≈80%

VerificationConfirmed — both readers agreed

The full reasoning

Gate opens onto a clear setback: a paved forecourt/apron behind a continuous fence/railing giving off-carriageway assembly space, not directly onto the carriageway. No separate pedestrian opening confirmable in zoom and no crossing exists to run a continuous rail to, so L3 attributes not met at HIGH confidence; no marked pick-up/drop-off bay.

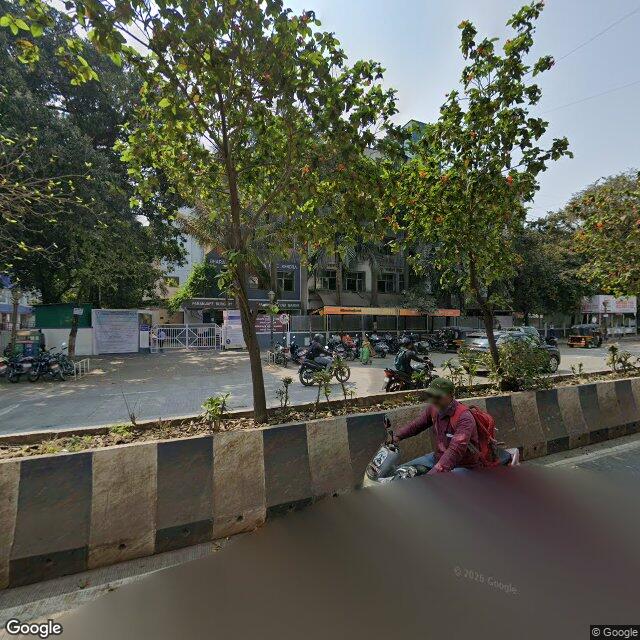

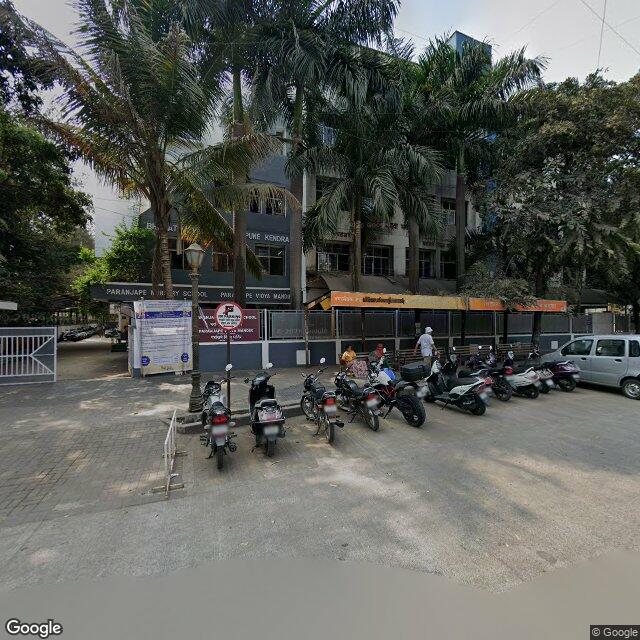

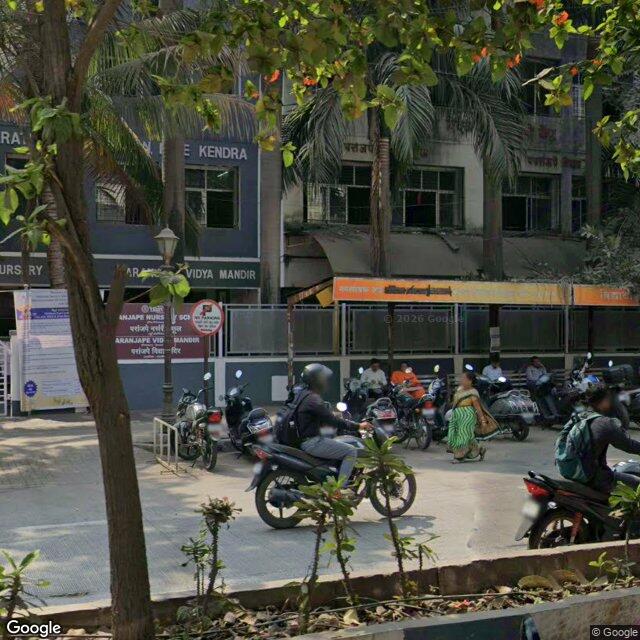

At the gate

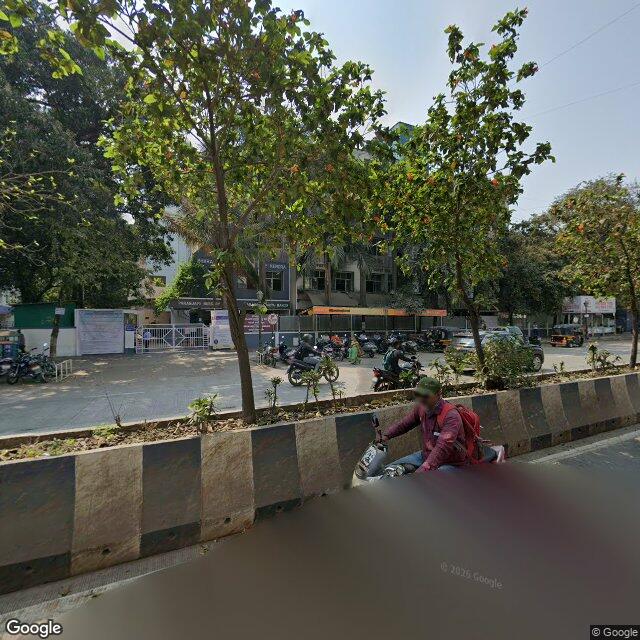

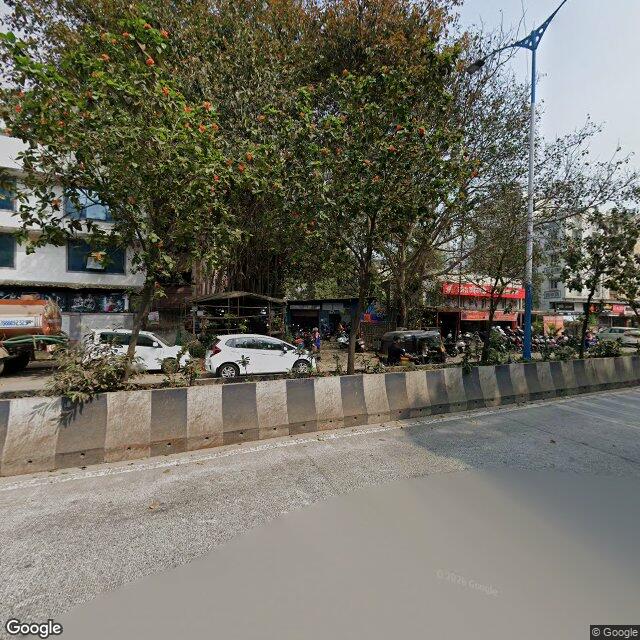

On the frontage road

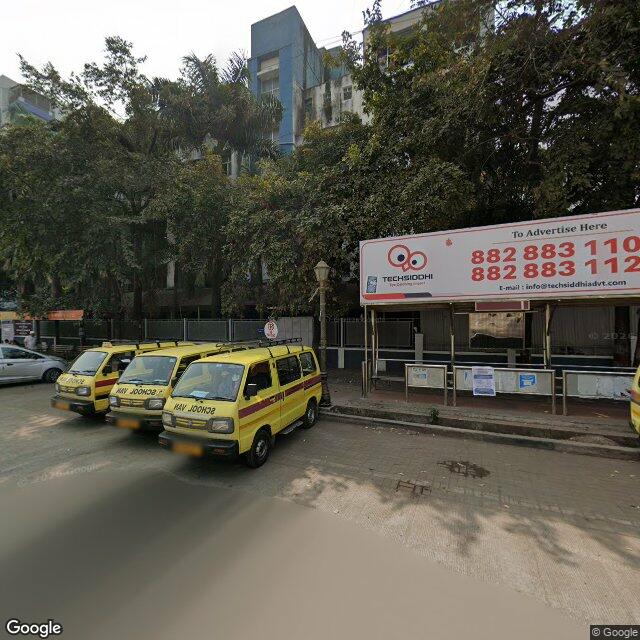

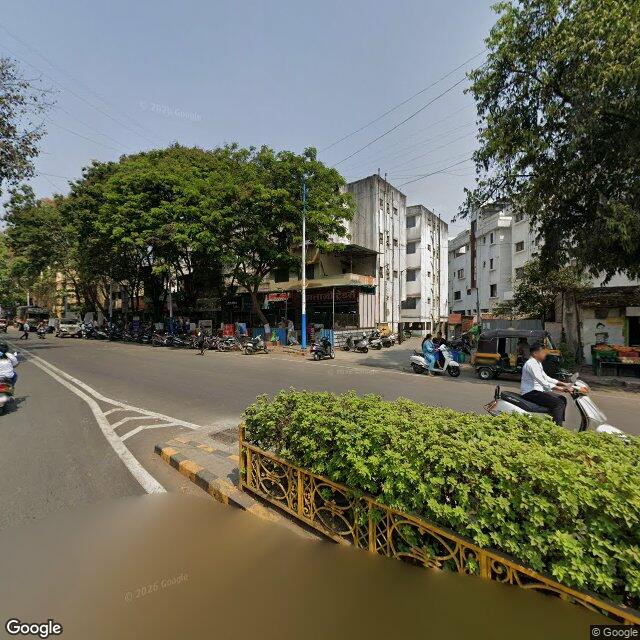

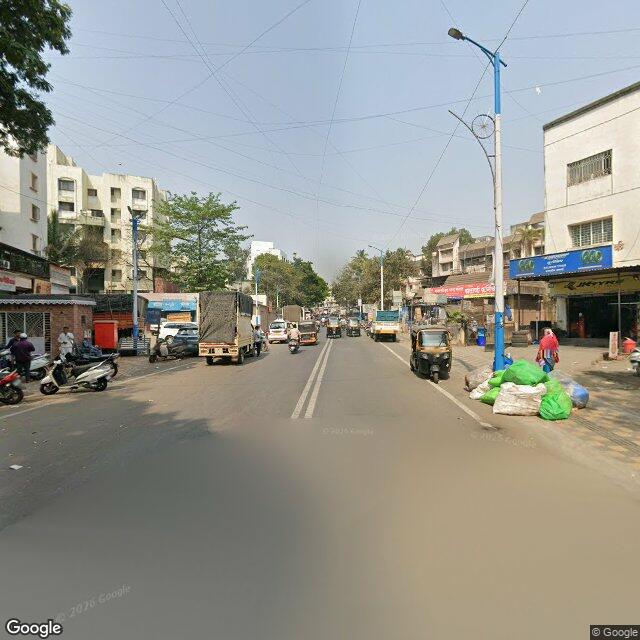

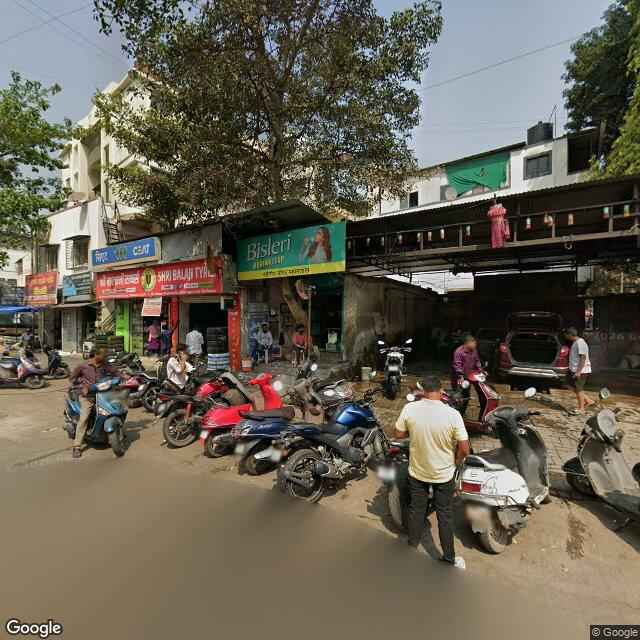

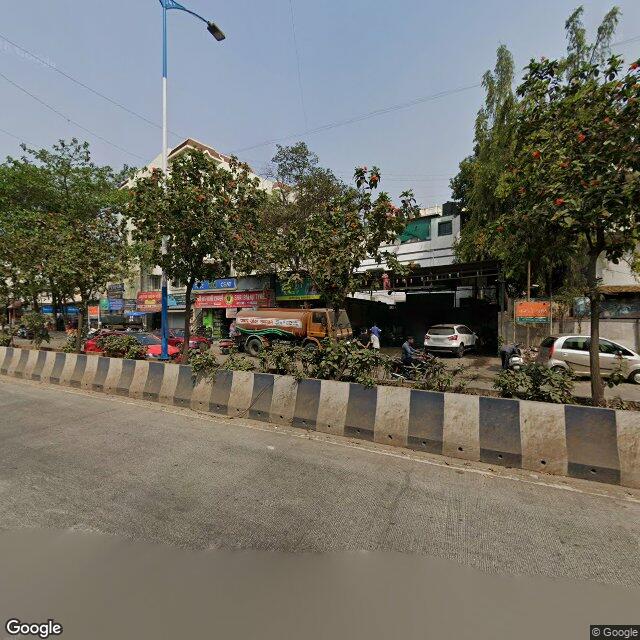

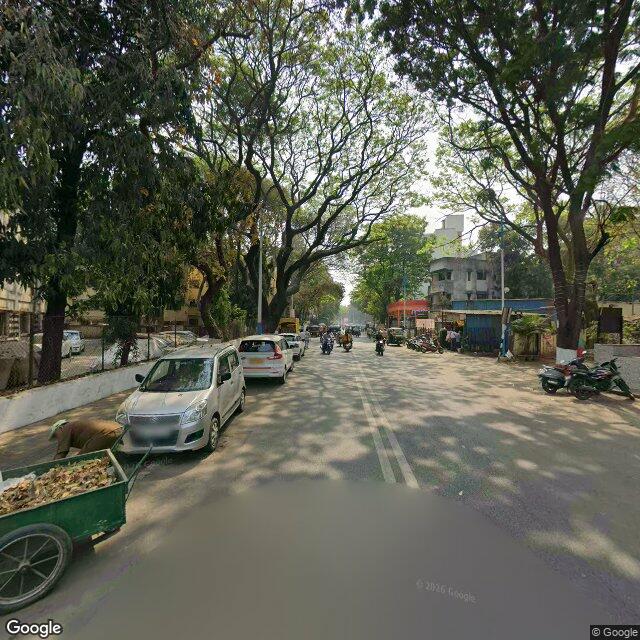

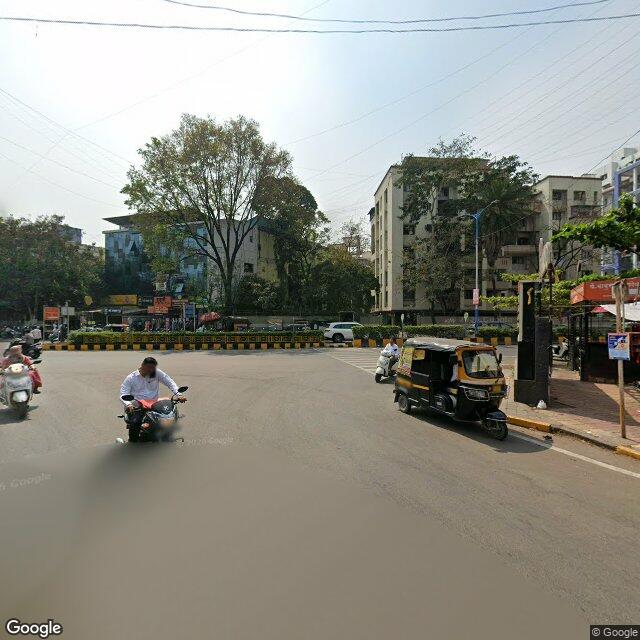

Along the street

Some captures sit on neighbouring lanes; older ones are shown greyed and were used only for context.

What must be fixed · 5 actions

What would make this road safe — and who owns each fix

Each action maps to a failing check, the relevant IRC:SP:32-2023 clause, and the responsible agency. Agency labels are provisional and correctable through the dispute channel.

01Lifts P1

Install a speed table or twin speed humps within 30 m of the gate

IRC:SP:32-2023 §5.13 · Table 5.1MCD / PWD · provisional

Speed humps near schools roughly halve child-pedestrian injury odds (Tester 2004); 30 km/h calmed zones ≈ 40% fewer casualties (Grundy 2009).

02Lifts P2

Mark a crossing within 20 m of the gate — table-top preferred

IRC:SP:32-2023 §5.4.3MCD / PWD · provisional

Raised crossings cut vehicle speeds at the exact conflict point.

03Lifts P3

Provide a continuous clear walking edge on the school side

IRC:SP:32-2023 §5.4.1MCD / PWD · provisional

A continuous footpath keeps children off the carriageway on the approach, not only at the gate.

04Lifts P4

School-zone warning signs on both approaches with the speed limit

IRC:SP:32-2023 §5.8MCD / PWD · provisional

The zone must announce itself to drivers before the gate.

05Lifts P5

Add space and a marked pick-up bay off the carriageway at the gate

IRC:SP:32-2023 §5.2MCD / PWD · provisional

Children should not step from the gate into a moving traffic lane.

Responsible-agency labels come from the CFI field instrument’s mapping and are correctable via the dispute channel.

Re-audit timeline

2026-08-06Audited

2027-02-06Re-audit due

Every published road is re-read every six months, or as soon as new Street View imagery lands, or on a sustained dispute.

Something wrong on this page?

The entrance, the imagery, a finding — if any of it is wrong, tell us. A dispute pauses this page while the audit is re-verified, and the correction is logged in the public record.

Dispute this audit
