The road outsideMODERN HERITAGE SR. SEC. SCHOOL JAIPUR

A-117 block-A, Ajmer Rd, behind Heerapura Power House, near jagdmba nagar, Jagdamba Nagar, circle, Jaipur, Rajasthan 302021, India26.88747, 75.72625audited 2026-08-08

6/100

Critically unsafeprovisional band

Critically unsafe. Almost nothing on this road protects a child from traffic on the way to the gate.

Of the five things we check, 4 are missing entirely.

This road · 6

0 · no protectioncomplete protection · 100

Checked twice, independently

Two AI readers on separate accounts · corrections logged in public

Confirmed

Corrected

Unresolved

See how each was judged

Of 153 roads scored so far, this one ranks 57 (worst first). The others scored between 0 and 41.

5points earned

84.5points we could see (84%)

5.9%provision

1exposure — local

5.9provision × exposure

→

6SSI · rounded to nearest · v0.3

Only what the imagery could actually resolve is scored (84% of the rubric here); the rest is left uncounted rather than guessed. A road with full protective infrastructure scores near 100.

The road in context · derived from public data

Where this road sits

Before the checks: what kind of road this is, how it meets other roads, and what passes it. These lines describe the road and its surroundings — they do not change the score.

Road layout around the gate, drawn from OpenStreetMap — Road layout · drawn from OpenStreetMap · blue dot = school coordinate · red = fatal-crash points (Jaipur Police)

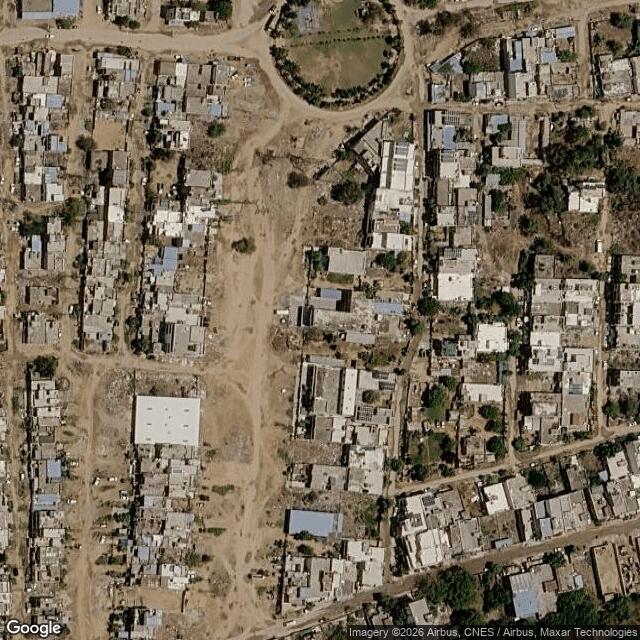

Satellite view of the same area — Satellite · © Google · retrieved 2026-08-13 (capture date not published by the imagery API)

FrontageThe gate opens onto a local street, on its N side

Junctionthe gate area sits at a 3-leg junction

Street activityno bus stop or shops mapped within 150 m (OpenStreetMap)

Crash record11 road deaths within 500 m of the gate; 4 of the recorded crashes fell on school days, 7 am–6 pm (Jaipur Police crash data)

Exposure contextElevated — 50/100. Describes how much traffic and crash risk passes this road — context only, never part of the road score (method: exposure v1, Data page)

Road layout data © OpenStreetMap contributors (ODbL), retrieved 13 Aug 2026 · crash data: Jaipur Police · derivations: `exposure_v1` on the Data page.

What we found · five checks · IRC:SP:32-2023

Five things we checked — and the photo behind each

Each check was read once, then verified blind by a second reader on a separate account. The photo each finding came from sits right beside it. Tap “see how this was judged” for the full reasoning.

Slowing traffic downP1 · Physical speed control

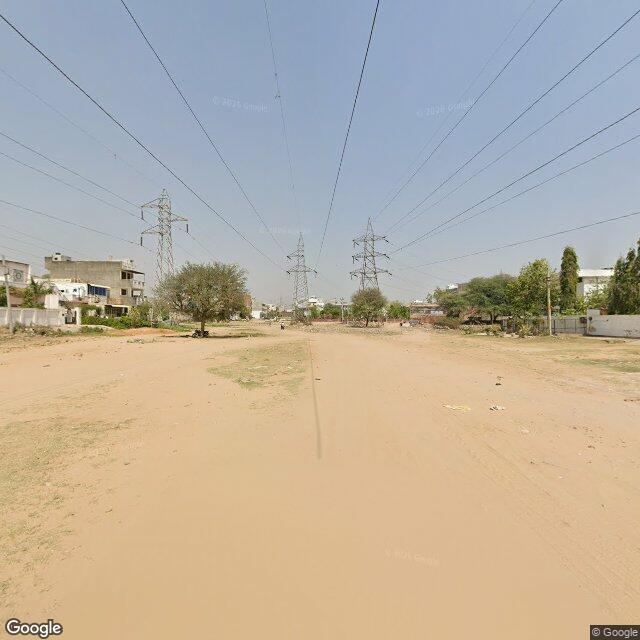

Nothing slows traffic at the gate

No speed hump, table or rumble strip on the approach — vehicles reach the gate at full speed.

Absent

Also cited for this check

0 of 30 points

LevelNone (L0)

Points0 of 30

ConfidenceHigh

Coverage seen≈85%

VerificationConfirmed — both readers agreed

The full reasoning

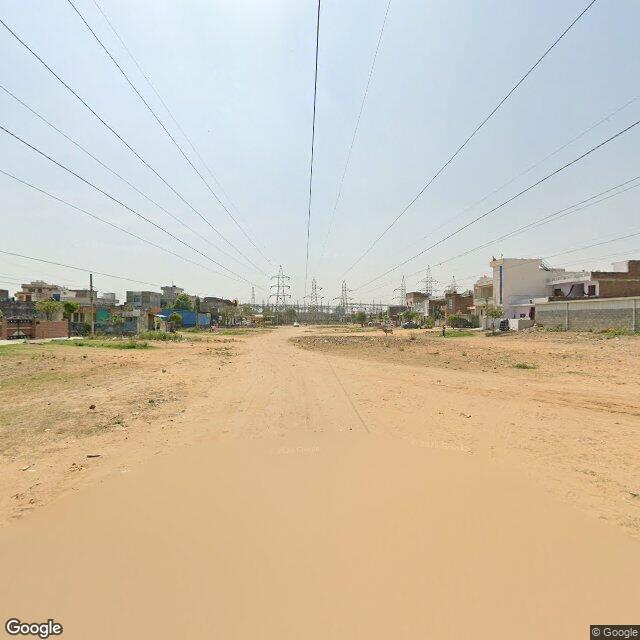

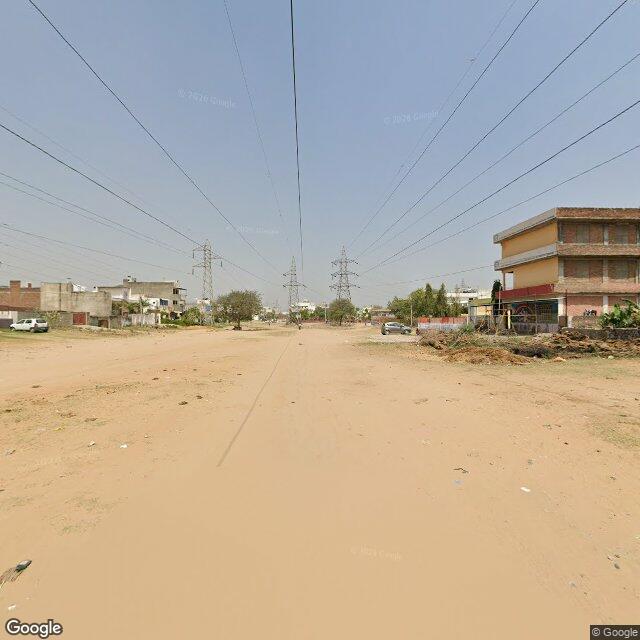

Frontage and both road-axis approaches (N heading ~7, S heading ~187) plus traversal panos at 45-50 m show bare unpaved earth; no speed hump, raised table, rumble strip or any marking-based device anywhere in the assessable zone. Surface is loose sand under HT power lines, so built calming devices are absent, not merely unseen.

Getting across the roadP2 · Safe crossing

No safe place to cross

No marked or raised pedestrian crossing at or near the gate.

Absent

Also cited for this check

0 of 25 points

LevelNone (L0)

Points0 of 25

ConfidenceHigh

Coverage seen≈85%

VerificationConfirmed — both readers agreed

The full reasoning

No marked pedestrian crossing, refuge island or median anywhere in the zone; the carriageway is bare earth on which no markings could exist. Gate frontage and both approaches clearly visible, so absence is assessed, not inferred.

Walking without stepping into trafficP3 · Footpath & separation

No footpath — children share the road

No usable walking edge; children walk in the traffic lane.

Absent

Also cited for this check

0 of 25 points

LevelNone (L0)

Points0 of 25

ConfidenceHigh

Coverage seen≈85%

VerificationConfirmed — both readers agreed

The full reasoning

Local street standard (continuous clear walkable edge). No footpath or delineated walkable edge exists on either side; the frontage and the whole corridor are one undifferentiated sand expanse shared by pedestrians and vehicles, with vacant plots and set-back buildings at the sides. This is not a footpath that exists-but-is-broken (L1) but a total absence of any footpath (L0).

Being seen and expectedP4 · Signage & zone identity

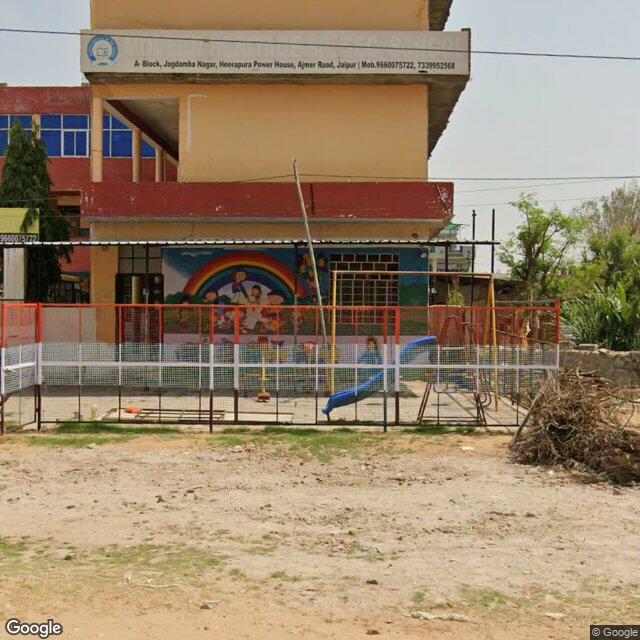

No school-zone signs

Drivers get no warning that a school gate is here.

Absent

Also cited for this check

0 of 10 points

LevelNone (L0)

Points0 of 10

ConfidenceHigh

Coverage seen≈80%

VerificationConfirmed — both readers agreed

The full reasoning

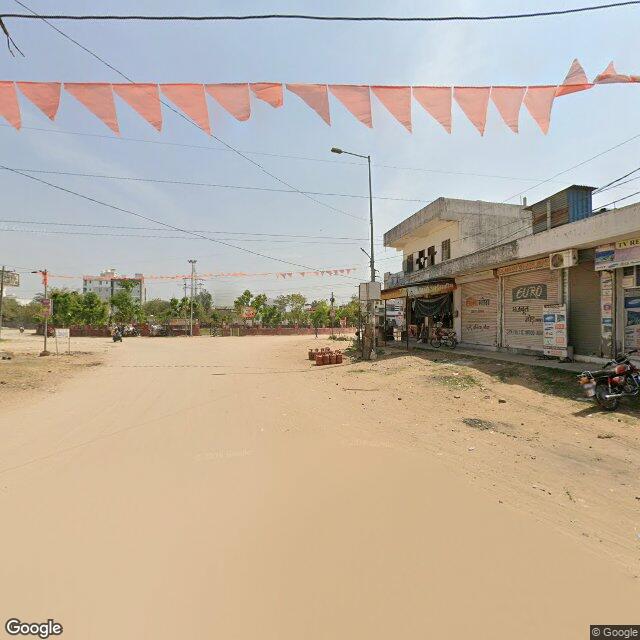

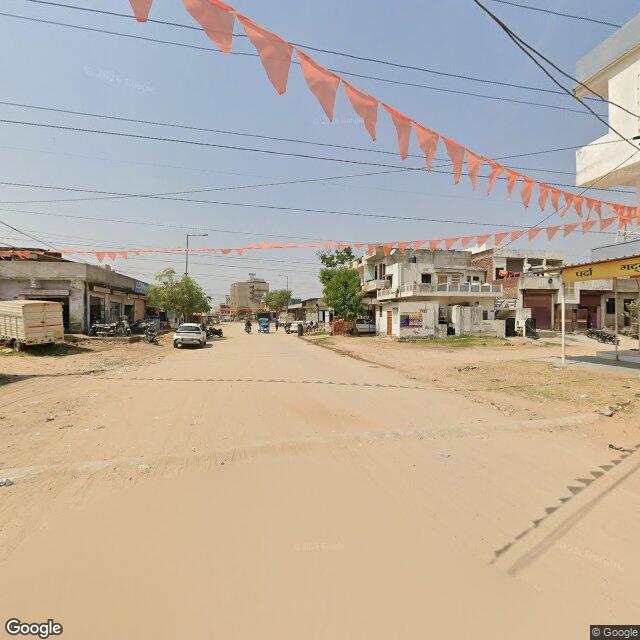

No school-warning sign, speed-limit sign or any zone-identity asset visible at the frontage or on either approach. The building name boards are premises identification, not road signage. Overhead festive pennants seen at the market end (bi_AI9JkcYM8) are decorative, not signage.

◑

The gate itselfP5 · Gate environment

Space and a railing at the gate

A clear setback or railing gives room to gather off the carriageway.

Partial

Also cited for this check

5 of 10 points

LevelBasic (L2)

Points5 of 10

ConfidenceHigh

Coverage seen≈85%

VerificationConfirmed — both readers agreed

The full reasoning

Built form: the gate does not open onto the traveled way. The compound sits behind an orange mesh railing enclosing a playground, with a large open sandy forecourt (tens of metres) between the compound and the central vehicle track - a clear setback plus railing giving ample off-carriageway assembly space (L2). No distinct separate pedestrian opening, and no continuous rail from gate to a crossing (no crossing exists), resolvable to HIGH confidence, so not L3.

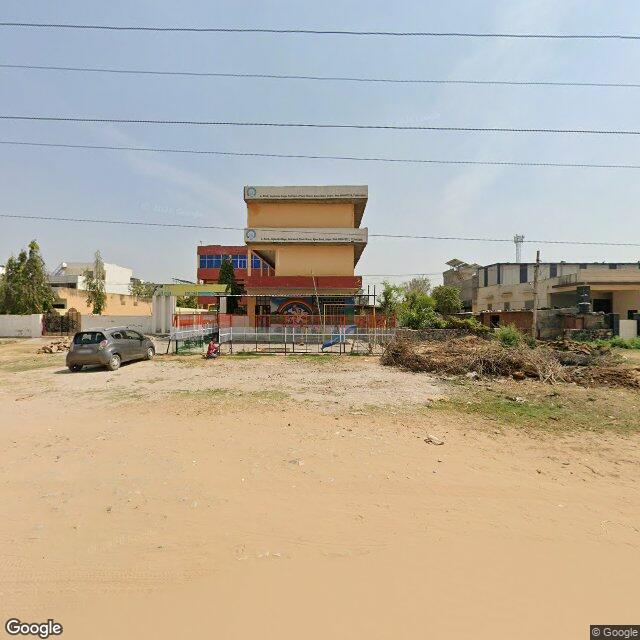

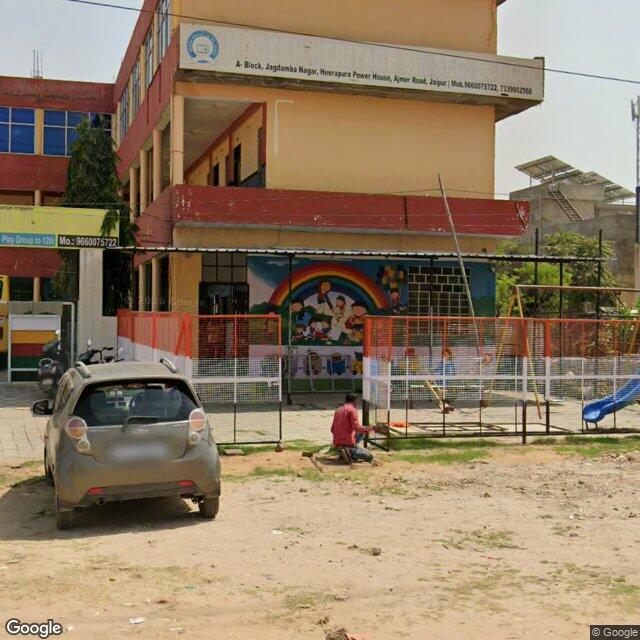

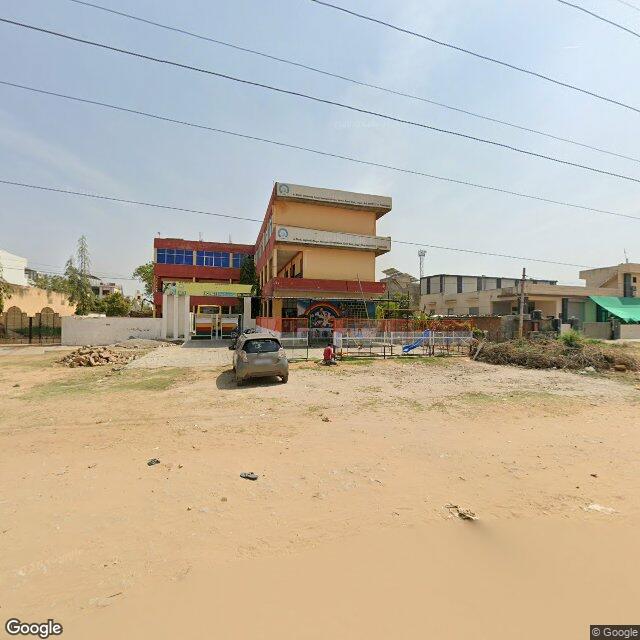

At the gate

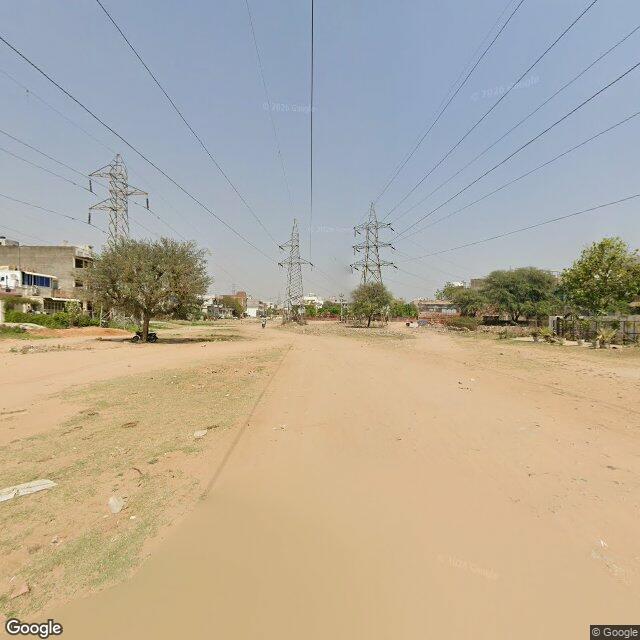

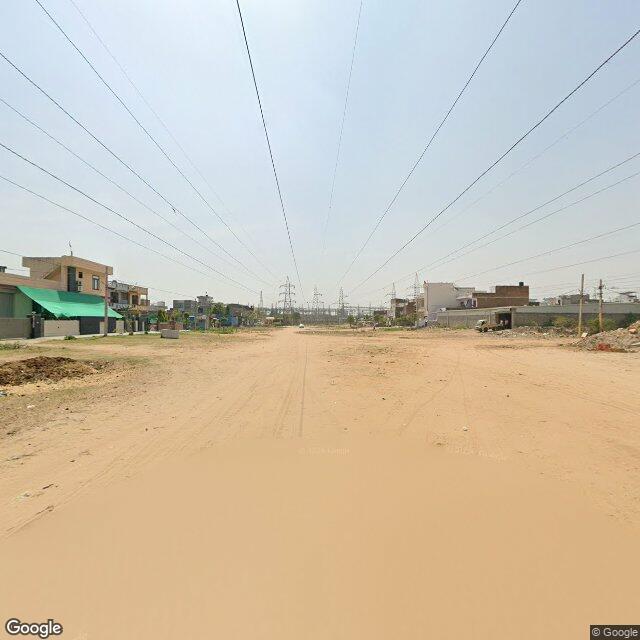

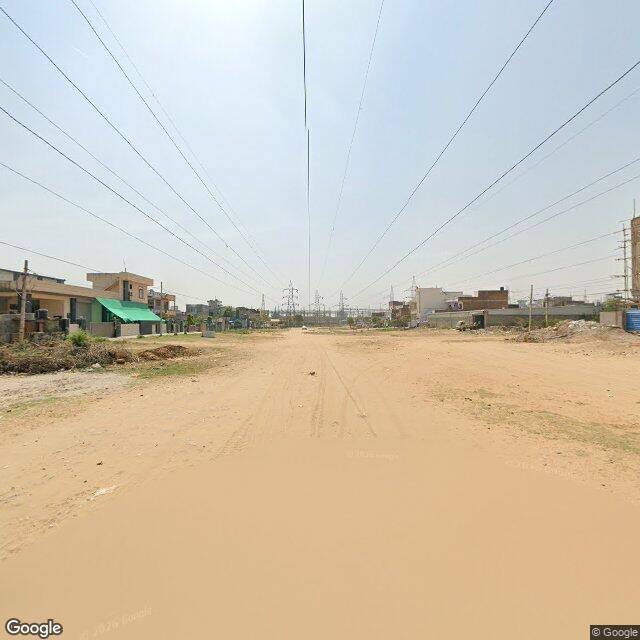

On the frontage road

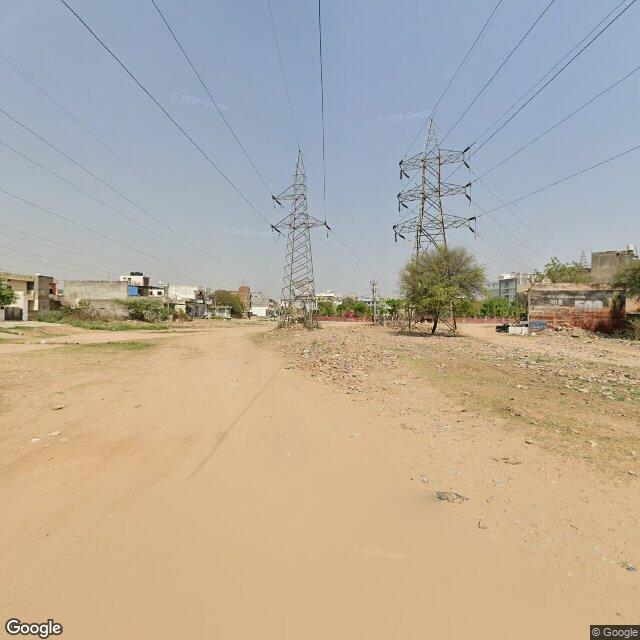

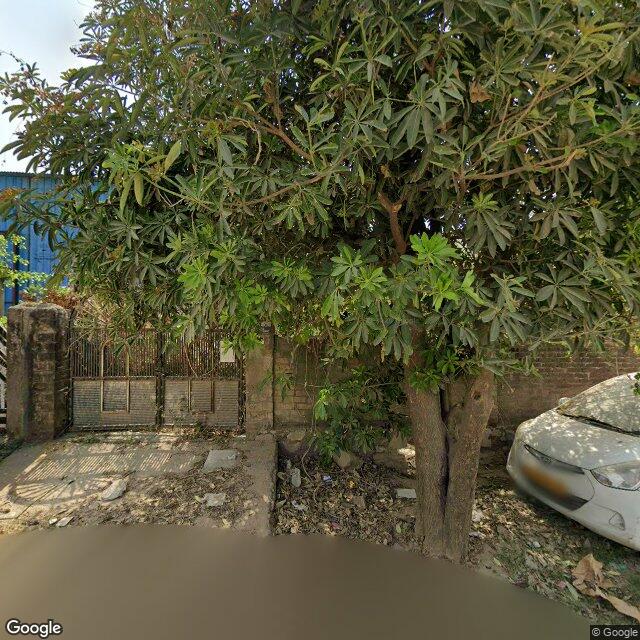

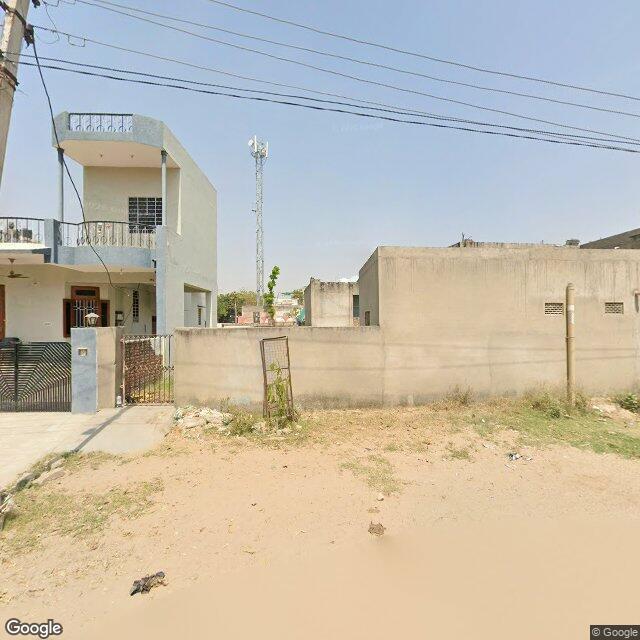

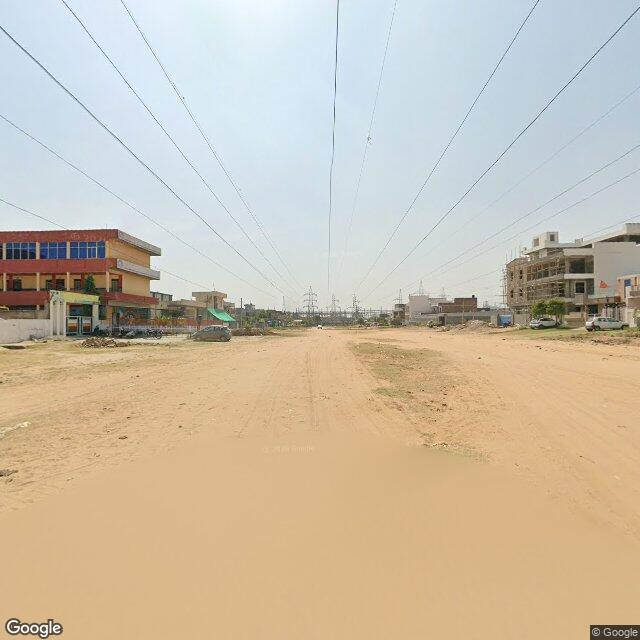

Along the street

Some captures sit on neighbouring lanes; older ones are shown greyed and were used only for context.

What must be fixed · 5 actions

What would make this road safe — and who owns each fix

Each action maps to a failing check, the relevant IRC:SP:32-2023 clause, and the responsible agency. Agency labels are provisional and correctable through the dispute channel.

01Lifts P1

Install a speed table or twin speed humps within 30 m of the gate

IRC:SP:32-2023 §5.13 · Table 5.1MCD / PWD · provisional

Speed humps near schools roughly halve child-pedestrian injury odds (Tester 2004); 30 km/h calmed zones ≈ 40% fewer casualties (Grundy 2009).

02Lifts P2

Mark a crossing within 20 m of the gate — table-top preferred

IRC:SP:32-2023 §5.4.3MCD / PWD · provisional

Raised crossings cut vehicle speeds at the exact conflict point.

03Lifts P3

Provide a continuous clear walking edge on the school side

IRC:SP:32-2023 §5.4.1MCD / PWD · provisional

A continuous footpath keeps children off the carriageway on the approach, not only at the gate.

04Lifts P4

School-zone warning signs on both approaches with the speed limit

IRC:SP:32-2023 §5.8MCD / PWD · provisional

The zone must announce itself to drivers before the gate.

05Lifts P5

Add space and a marked pick-up bay off the carriageway at the gate

IRC:SP:32-2023 §5.2MCD / PWD · provisional

Children should not step from the gate into a moving traffic lane.

Responsible-agency labels come from the CFI field instrument’s mapping and are correctable via the dispute channel.

Re-audit timeline

2026-08-08Audited

2027-02-08Re-audit due

Every published road is re-read every six months, or as soon as new Street View imagery lands, or on a sustained dispute.
