Road-environment audit · SSI v0.3

The road outsideLBS Public School

RR25+936, Tonk Rd, Sanganer, Sector 5, Pratap Nagar, Jaipur, Rajasthan 302033, India26.80117, 75.80802audited 2026-08-09

15/100

Critically unsafeprovisional band

Critically unsafe. Almost nothing on this road protects a child from traffic on the way to the gate.

Of the five things we check, 3 are missing entirely.

This road · 15

0 · no protectioncomplete protection · 100

Checked twice, independently

Two AI readers on separate accounts · corrections logged in public

Confirmed

Corrected

Unresolved

See how each was judged

Of 153 roads scored so far, this one ranks 105 (worst first). The others scored between 0 and 41.

11.25points earned

72.75points we could see (73%)

15.46%provision

1exposure — local

15.46provision × exposure

→

15SSI · rounded to nearest · v0.3

Only what the imagery could actually resolve is scored (73% of the rubric here); the rest is left uncounted rather than guessed. A road with full protective infrastructure scores near 100.

The road in context · derived from public data

Where this road sits

Before the checks: what kind of road this is, how it meets other roads, and what passes it. These lines describe the road and its surroundings — they do not change the score.

Road layout around the gate, drawn from OpenStreetMap — Road layout · drawn from OpenStreetMap · blue dot = school coordinate · red = fatal-crash points (Jaipur Police)

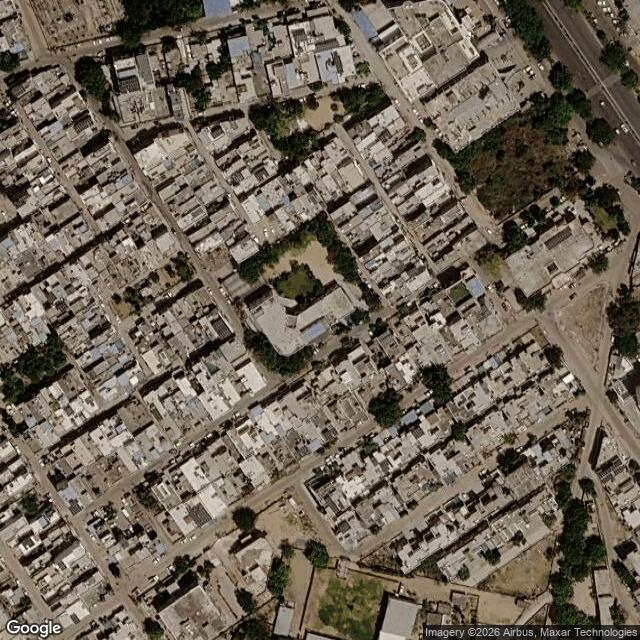

Satellite view of the same area — Satellite · © Google · retrieved 2026-08-13 (capture date not published by the imagery API)

FrontageThe gate opens onto a local street, on its NW side

Junctionthe gate area sits at a 6-leg junction

Street activityno bus stop or shops mapped within 150 m (OpenStreetMap)

Crash record3 road deaths within 500 m of the gate; 4 of the recorded crashes fell on school days, 7 am–6 pm (Jaipur Police crash data)

Exposure contextModerate — 32/100. Describes how much traffic and crash risk passes this road — context only, never part of the road score (method: exposure v1, Data page)

Road layout data © OpenStreetMap contributors (ODbL), retrieved 13 Aug 2026 · crash data: Jaipur Police · derivations: `exposure_v1` on the Data page.

What we found · five checks · IRC:SP:32-2023

Five things we checked — and the photo behind each

Each check was read once, then verified blind by a second reader on a separate account. The photo each finding came from sits right beside it. Tap “see how this was judged” for the full reasoning.

Slowing traffic downP1 · Physical speed control

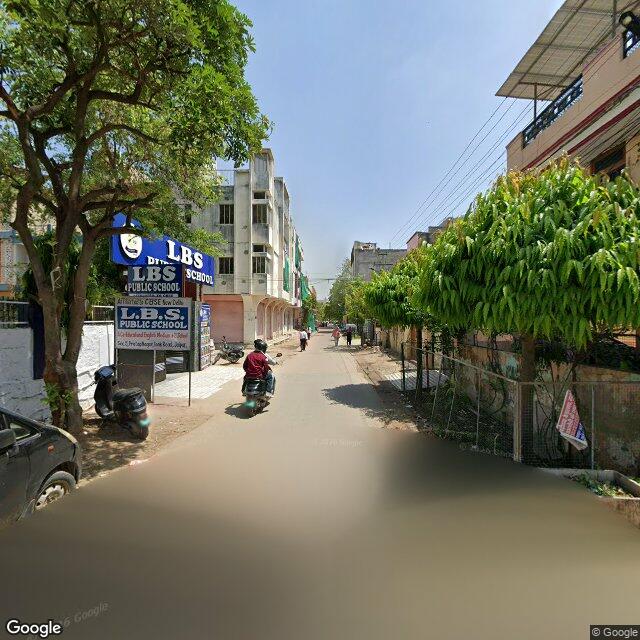

Nothing slows traffic at the gate

No speed hump, table or rumble strip on the approach — vehicles reach the gate at full speed.

Absent

Also cited for this check

0 of 30 points

LevelNone (L0)

Points0 of 30

ConfidenceHigh

Coverage seen≈80%

VerificationConfirmed — both readers agreed

The full reasoning

No speed hump, table, rumble strip or thermoplastic bar marking anywhere in view. Plain asphalt across the frontage and both approaches in multiple consistent views. Some Google privacy blur on the road immediately at the gate, but the approach surfaces are clearly uncalmed.

Getting across the roadP2 · Safe crossing

No safe place to cross

No marked or raised pedestrian crossing at or near the gate.

Absent

Also cited for this check

0 of 25 points

LevelNone (L0)

Points0 of 25

ConfidenceHigh

Coverage seen≈72%

VerificationConfirmed — both readers agreed

The full reasoning

No marked pedestrian crossing and no refuge anywhere on the undivided single carriageway. Road surface unmarked across the frontage and both approaches. Foreground privacy blur covers the immediate gate apron, but a crossing would extend across the carriageway and none is visible beyond the blur.

◑

Walking without stepping into trafficP3 · Footpath & separation

A broken walking edge

A walking edge exists but is broken or blocked for most of the frontage.

Partial

Also cited for this check

6.25 of 25 points

LevelMinimal (L1)

Points6.25 of 25

ConfidenceMed

Coverage seen≈75%

VerificationConfirmed — both readers agreed

The full reasoning

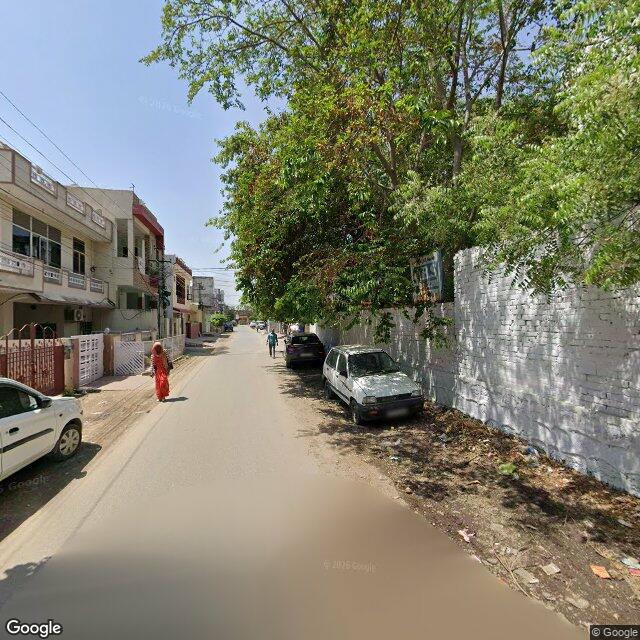

No dedicated footpath. School-wall side has only a dirt margin against the boundary wall; residential side has intermittent private paved/tiled frontage aprons broken by gates, ramps, level changes and vegetation. No continuous walkable edge on either side; pedestrians observed on the carriageway. Assessed as a walkable edge that exists but is broken/blocked along most of the frontage (permanent causes), i.e. L1; borderline against L0. Parked vehicles ignored per rubric.

Being seen and expectedP4 · Signage & zone identity

No school-zone signs

Drivers get no warning that a school gate is here.

Absent⟳ Corrected in review

MinimalNone

An independent second reader changed this — the two readings disagreed, and the evidence below settled it.

Also cited for this check

0 of 10 points

LevelNone (L0)

Points0 of 10

ConfidenceHigh

Coverage seen≈70%

VerificationCorrected in the second reading

The full reasoning

Audit read fell. Only institutional name boards present (LBS PUBLIC SCHOOL/AFFILIATED TO CBSE); these are not traffic warning signs. No cautionary school sign, speed sign or identity asset on either approach or the zone edges.

◑

The gate itselfP5 · Gate environment

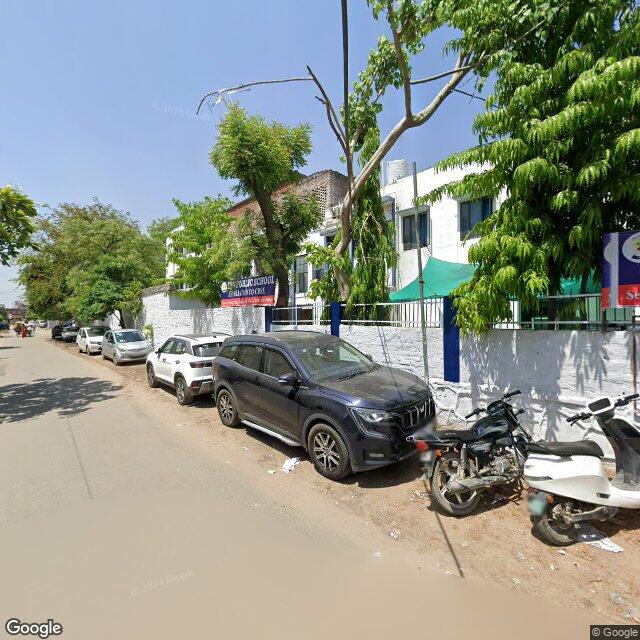

Space and a railing at the gate

A clear setback or railing gives room to gather off the carriageway.

Partial⟳ Corrected in review

MinimalBasic

An independent second reader changed this — the two readings disagreed, and the evidence below settled it.

5 of 10 points

LevelBasic (L2)

Points5 of 10

ConfidenceMed

Coverage seen≈50%

VerificationCorrected in the second reading

The full reasoning

Audit read fell. Continuous blue metal railing on a plinth fronts a setback forecourt (trees, building set back), giving off-carriageway assembly space = L2. Gate leaf occluded by tent and cars, so no L3 wicket confirmable.

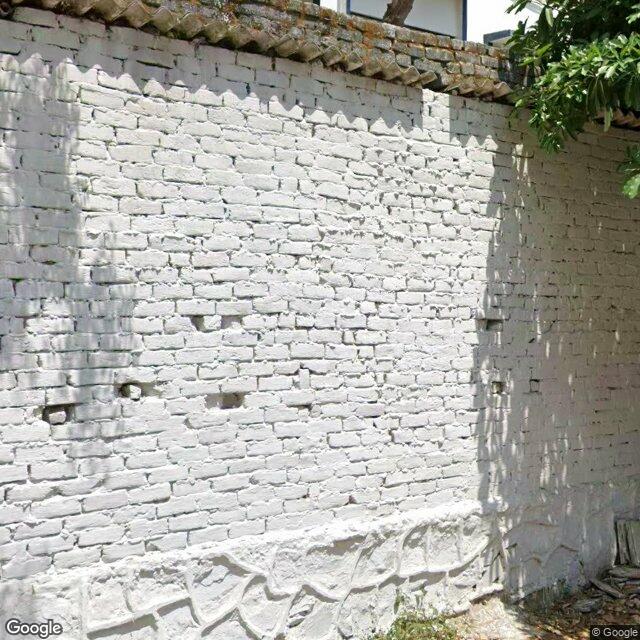

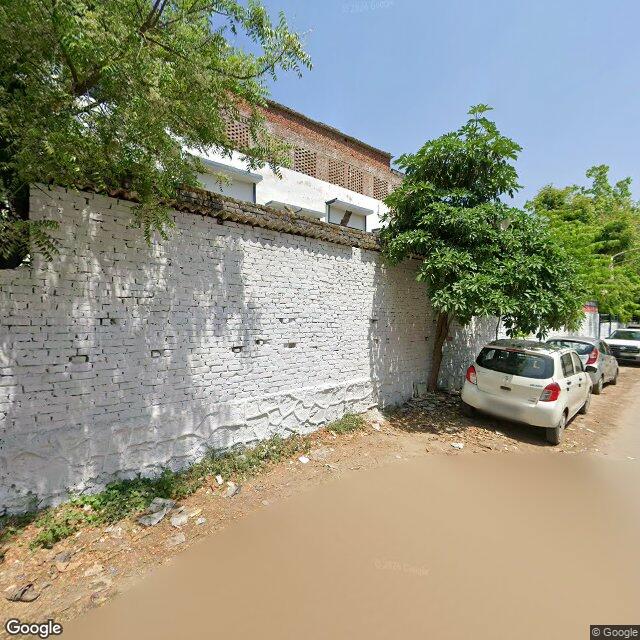

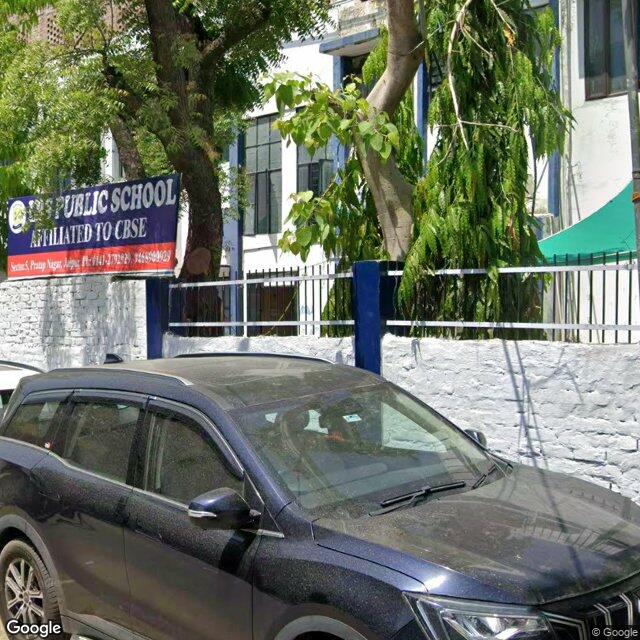

At the gate

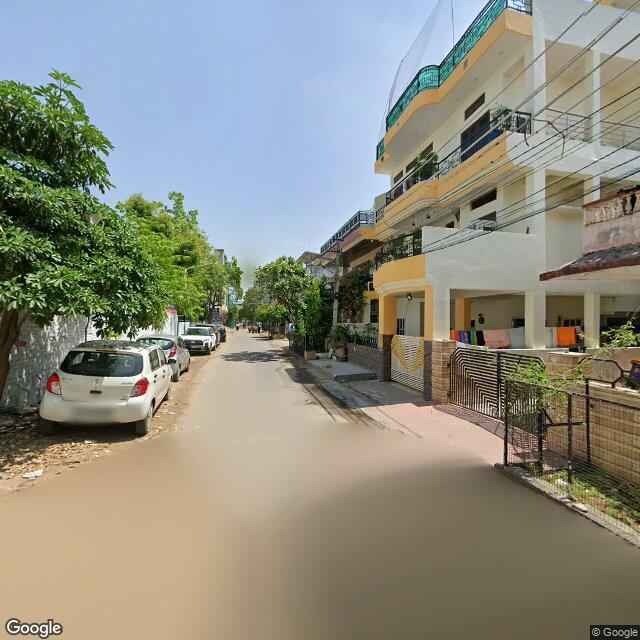

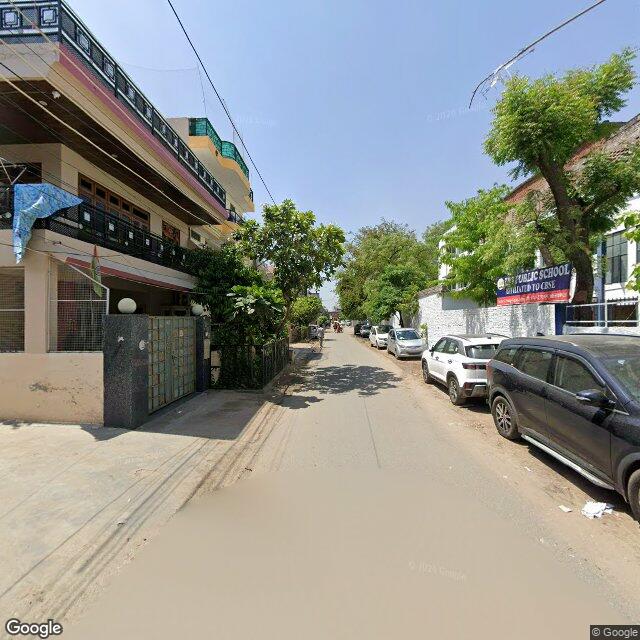

On the frontage road

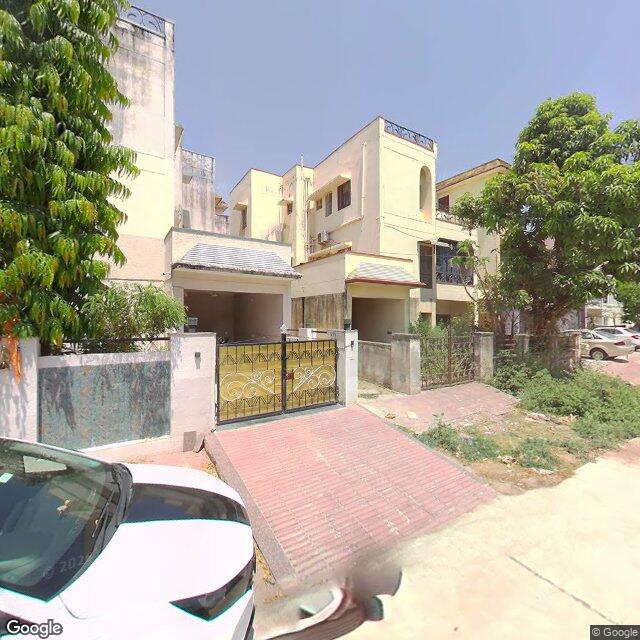

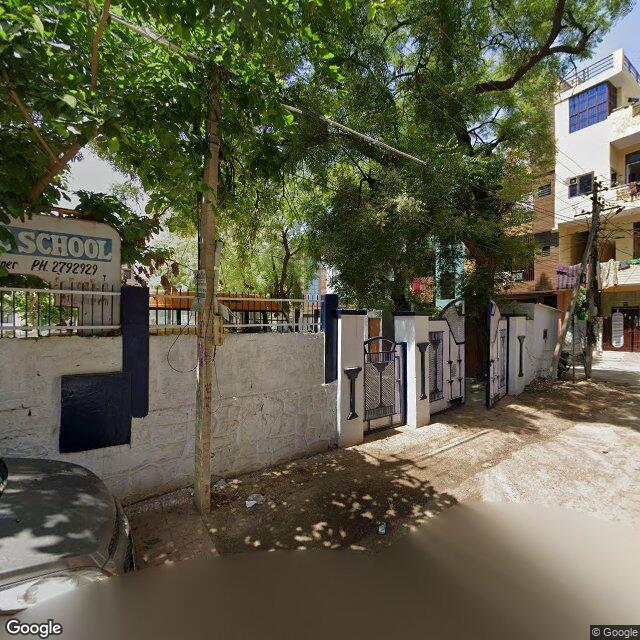

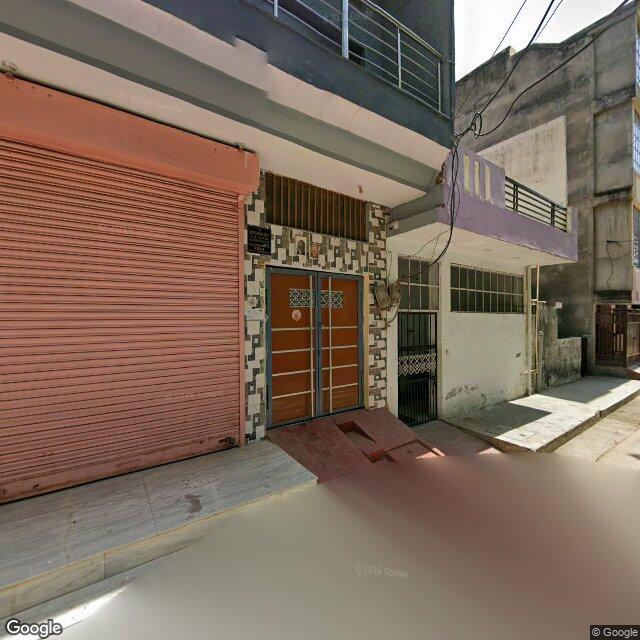

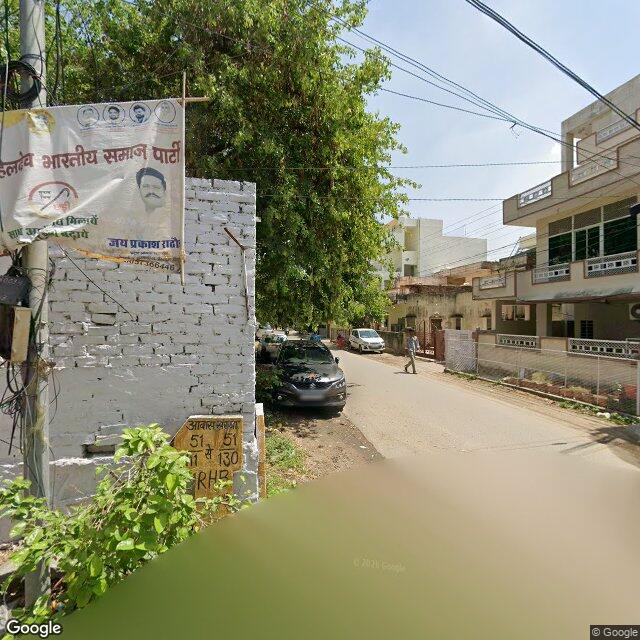

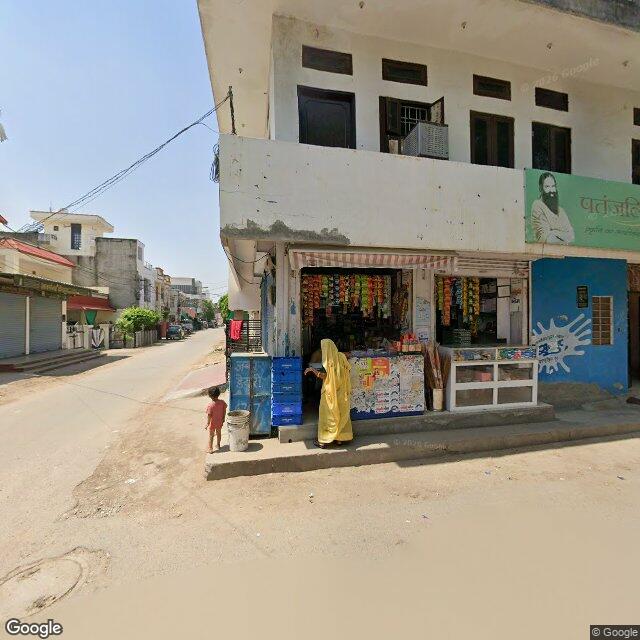

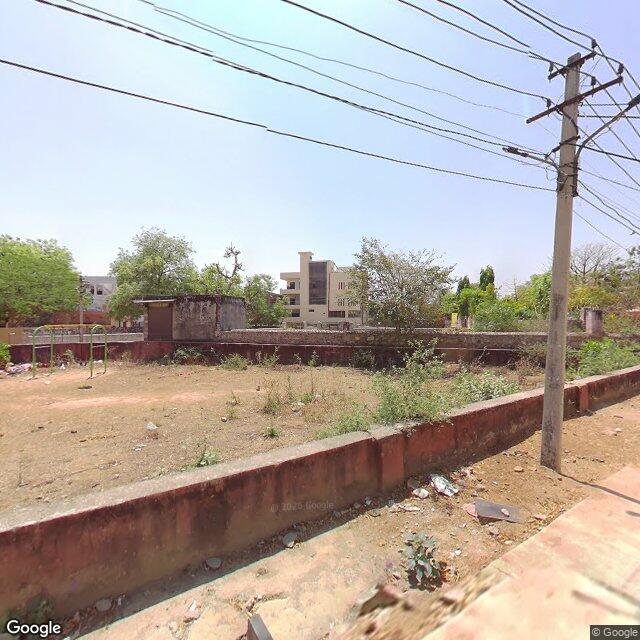

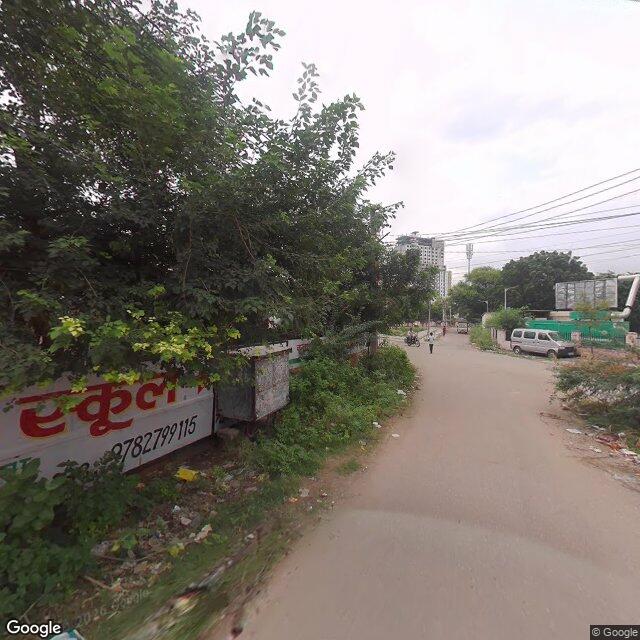

Along the street

Some captures sit on neighbouring lanes; older ones are shown greyed and were used only for context.

What must be fixed · 5 actions

What would make this road safe — and who owns each fix

Each action maps to a failing check, the relevant IRC:SP:32-2023 clause, and the responsible agency. Agency labels are provisional and correctable through the dispute channel.

01Lifts P1

Install a speed table or twin speed humps within 30 m of the gate

IRC:SP:32-2023 §5.13 · Table 5.1MCD / PWD · provisional

Speed humps near schools roughly halve child-pedestrian injury odds (Tester 2004); 30 km/h calmed zones ≈ 40% fewer casualties (Grundy 2009).

02Lifts P2

Mark a crossing within 20 m of the gate — table-top preferred

IRC:SP:32-2023 §5.4.3MCD / PWD · provisional

Raised crossings cut vehicle speeds at the exact conflict point.

03Lifts P3

Provide a continuous clear walking edge on the school side

IRC:SP:32-2023 §5.4.1MCD / PWD · provisional

A continuous footpath keeps children off the carriageway on the approach, not only at the gate.

04Lifts P4

School-zone warning signs on both approaches with the speed limit

IRC:SP:32-2023 §5.8MCD / PWD · provisional

The zone must announce itself to drivers before the gate.

05Lifts P5

Add space and a marked pick-up bay off the carriageway at the gate

IRC:SP:32-2023 §5.2MCD / PWD · provisional

Children should not step from the gate into a moving traffic lane.

Responsible-agency labels come from the CFI field instrument’s mapping and are correctable via the dispute channel.

Re-audit timeline

2026-08-09Audited

2027-02-09Re-audit due

Every published road is re-read every six months, or as soon as new Street View imagery lands, or on a sustained dispute.
