Road-environment audit · SSI v0.3

The road outsideNBI FUTURE KIDS INTERNATIONAL SCHOOL

25, PANCHWATI COLONY, KAMLA NEHRU NAGAR, Ajmer Rd, Kana Vihar, Jaipur, Rajasthan 302021, India26.88134, 75.71404audited 2026-08-09

15/100

Critically unsafeprovisional band

Critically unsafe. Almost nothing on this road protects a child from traffic on the way to the gate.

Of the five things we check, 3 are missing entirely.

This road · 15

0 · no protectioncomplete protection · 100

Checked twice, independently

Two AI readers on separate accounts · corrections logged in public

Confirmed

Corrected

Unresolved

See how each was judged

Of 153 roads scored so far, this one ranks 105 (worst first). The others scored between 0 and 41.

11.25points earned

77.3points we could see (77%)

14.6%provision

1exposure — local

14.6provision × exposure

→

15SSI · rounded to nearest · v0.3

Only what the imagery could actually resolve is scored (77% of the rubric here); the rest is left uncounted rather than guessed. A road with full protective infrastructure scores near 100.

The road in context · derived from public data

Where this road sits

Before the checks: what kind of road this is, how it meets other roads, and what passes it. These lines describe the road and its surroundings — they do not change the score.

Road layout around the gate, drawn from OpenStreetMap — Road layout · drawn from OpenStreetMap · blue dot = school coordinate · red = fatal-crash points (Jaipur Police)

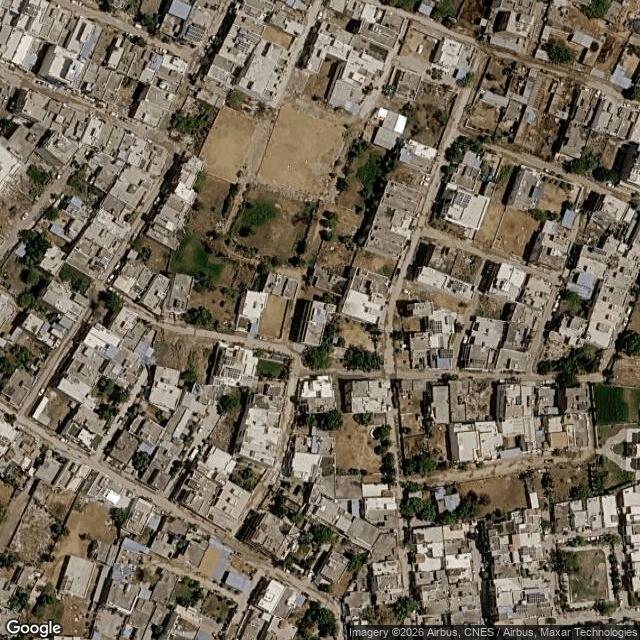

Satellite view of the same area — Satellite · © Google · retrieved 2026-08-13 (capture date not published by the imagery API)

FrontageThe gate opens onto a local street, on its N side

Junctionthe gate area sits at a 12-leg junction

Street activityno bus stop or shops mapped within 150 m (OpenStreetMap)

Crash record4 road deaths within 500 m of the gate; 2 of the recorded crashes fell on school days, 7 am–6 pm (Jaipur Police crash data)

Exposure contextModerate — 35/100. Describes how much traffic and crash risk passes this road — context only, never part of the road score (method: exposure v1, Data page)

Road layout data © OpenStreetMap contributors (ODbL), retrieved 13 Aug 2026 · crash data: Jaipur Police · derivations: `exposure_v1` on the Data page.

What we found · five checks · IRC:SP:32-2023

Five things we checked — and the photo behind each

Each check was read once, then verified blind by a second reader on a separate account. The photo each finding came from sits right beside it. Tap “see how this was judged” for the full reasoning.

Slowing traffic downP1 · Physical speed control

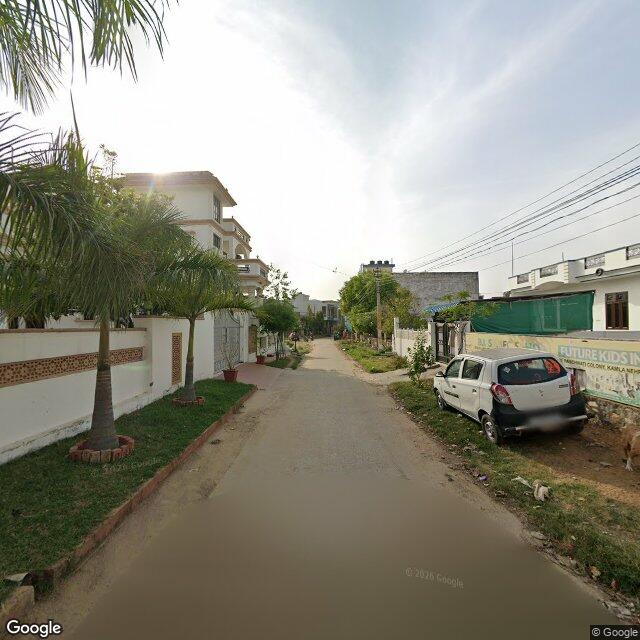

Nothing slows traffic at the gate

No speed hump, table or rumble strip on the approach — vehicles reach the gate at full speed.

Absent

Also cited for this check

0 of 30 points

LevelNone (L0)

Points0 of 30

ConfidenceHigh

Coverage seen≈80%

VerificationConfirmed — both readers agreed

The full reasoning

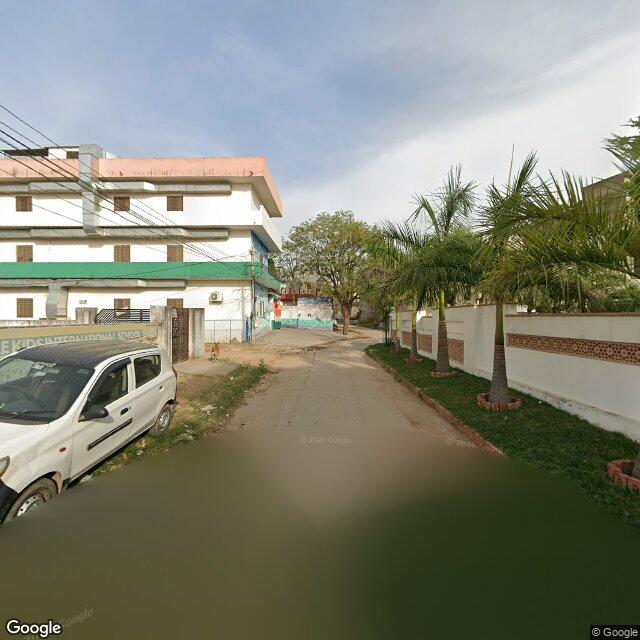

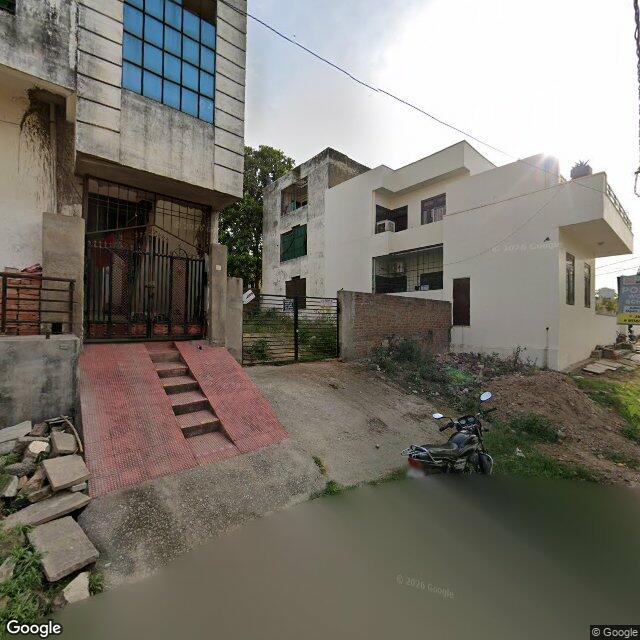

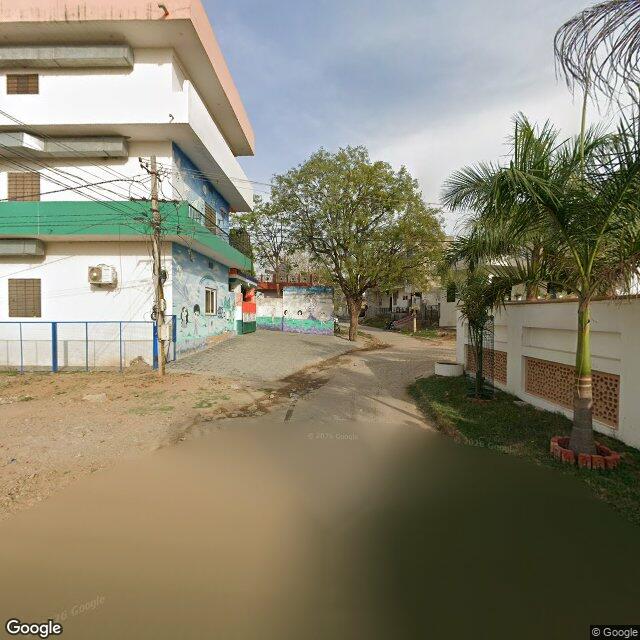

No physical speed-control devices of any kind visible on the frontage or on either approach along the main lane: no speed hump, speed table, raised crossing, rumble strip or transverse bar markings. Frontage surface is largely unpaved so no painted devices, and no built humps present. Approaches viewed in onM8U3n6D87E_h281_f90_road.jpg, onM8U3n6D87E_h101_f90_road.jpg, Q4hRVRBF8_f-_h101_f90_trav.jpg, nX83kSBP9Lem_h218_f90_road.jpg. Coverage of the full ~150 m zone across all approaches is partial.

Getting across the roadP2 · Safe crossing

No safe place to cross

No marked or raised pedestrian crossing at or near the gate.

Absent

Also cited for this check

0 of 25 points

LevelNone (L0)

Points0 of 25

ConfidenceHigh

Coverage seen≈80%

VerificationConfirmed — both readers agreed

The full reasoning

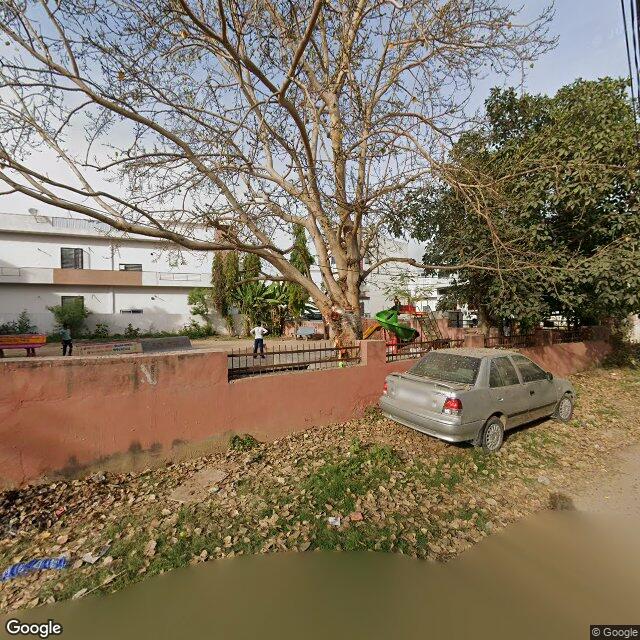

No marked pedestrian crossing (zebra or otherwise) and no refuge island observed on the frontage or within the near-gate area. Frontage carriageway is a narrow undivided local lane, largely unpaved, so no painted crossing exists; refuge not required at this width/class. Near-gate crossing zone visible in onM8U3n6D87E_h281_f90_road.jpg, Q4hRVRBF8_f-_h101_f90_trav.jpg, onM8U3n6D87E_h101_f90_road.jpg, nX83kSBP9Lem_h038_f90_road.jpg.

◑

Walking without stepping into trafficP3 · Footpath & separation

A broken walking edge

A walking edge exists but is broken or blocked for most of the frontage.

Partial

Also cited for this check

6.25 of 25 points

LevelMinimal (L1)

Points6.25 of 25

ConfidenceMed

Coverage seen≈78%

VerificationConfirmed — both readers agreed

The full reasoning

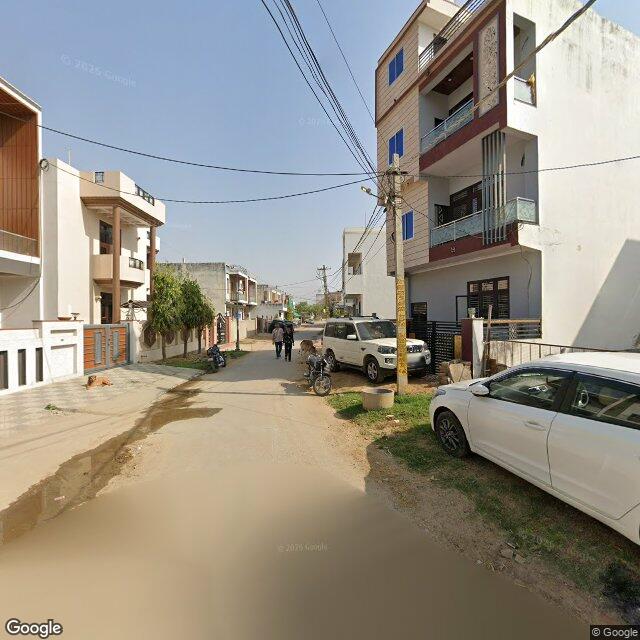

No raised or constructed footpath on either side. Earthen walkable margins exist along parts of the frontage on both sides (school side and the palm-planted strip opposite) but are unpaved and broken/blocked along most of the frontage by an open drainage nala on the school side, construction rubble, utility poles and planted trees. Pedestrians observed walking on the carriageway on a connecting stretch (AQzfVDryrRGn_h018_f90_trav.jpg). Assessed as a local-street walkable edge that exists but is broken/blocked. MED: borderline with 'none / on carriageway'; parked vehicles and Street View nadir blur occlude parts of the near-gate edge.

Being seen and expectedP4 · Signage & zone identity

No school-zone signs

Drivers get no warning that a school gate is here.

Absent

Also cited for this check

0 of 10 points

LevelNone (L0)

Points0 of 10

ConfidenceMed

Coverage seen≈78%

VerificationConfirmed — both readers agreed

The full reasoning

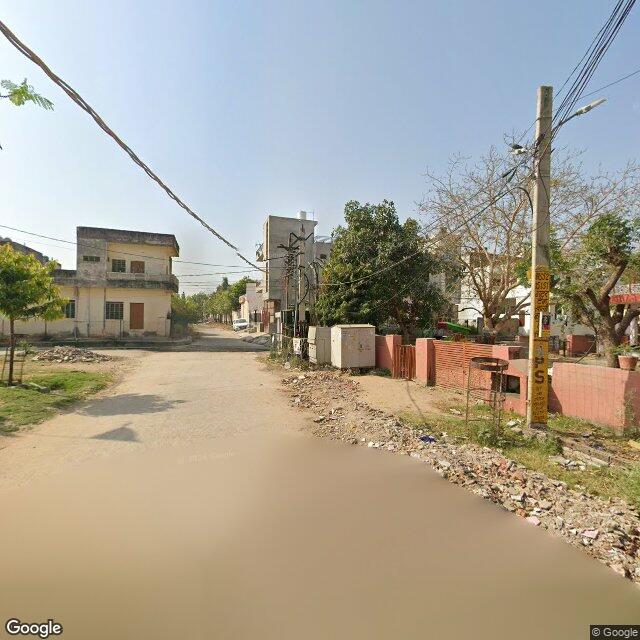

No traffic school-warning sign, no speed-limit sign and no 2023-identity zone assets (fluorescent yellow-green faces, zone-start/transition signs, red-white school-zone markings, beacon hardware) identified on either approach. The 'FUTURE KIDS INTERNATIONAL SCHOOL' text is the school's own name board on the building, not a road-safety warning sign, so it does not qualify. One unreadable yellow/red vertical sign on an electric pole appears in AQzfVDryrRGn_h198_f90_trav.jpg but cannot be confirmed as a school/traffic sign. MED: signage could sit outside captured frames.

◑

The gate itselfP5 · Gate environment

Space and a railing at the gate

A clear setback or railing gives room to gather off the carriageway.

Partial⟳ Corrected in review

BasicBasic

An independent second reader changed this — the two readings disagreed, and the evidence below settled it.

Also cited for this check

5 of 10 points

LevelBasic (L2)

Points5 of 10

ConfidenceMed

Coverage seen≈60%

VerificationCorrected in the second reading

The full reasoning

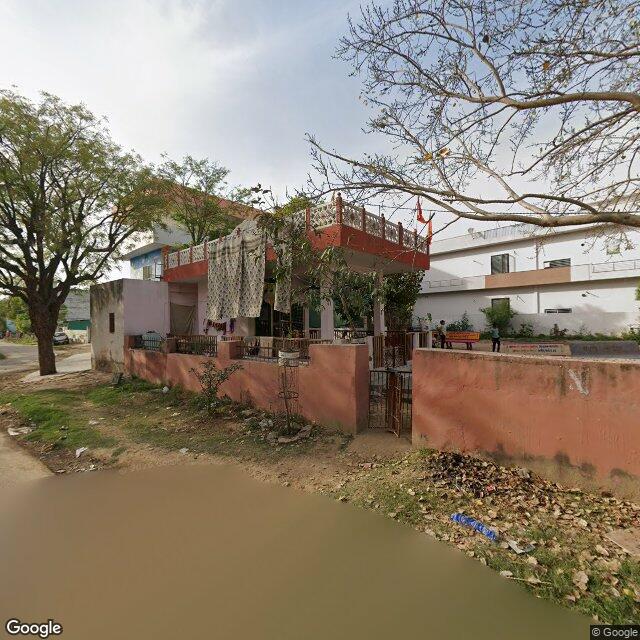

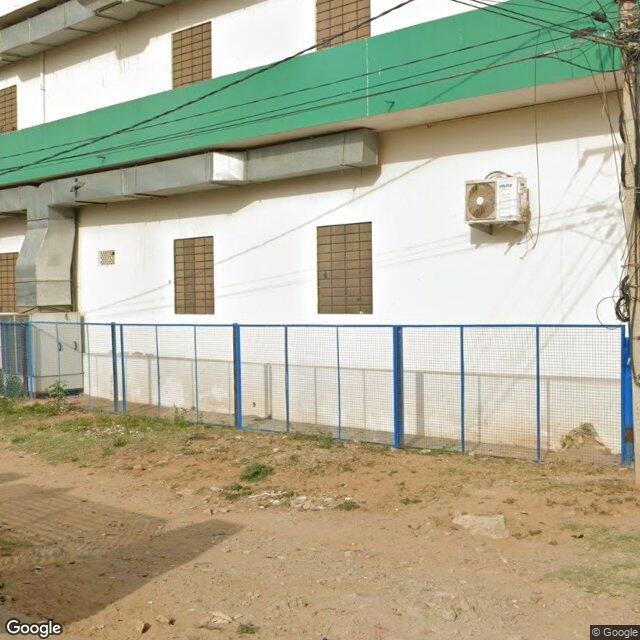

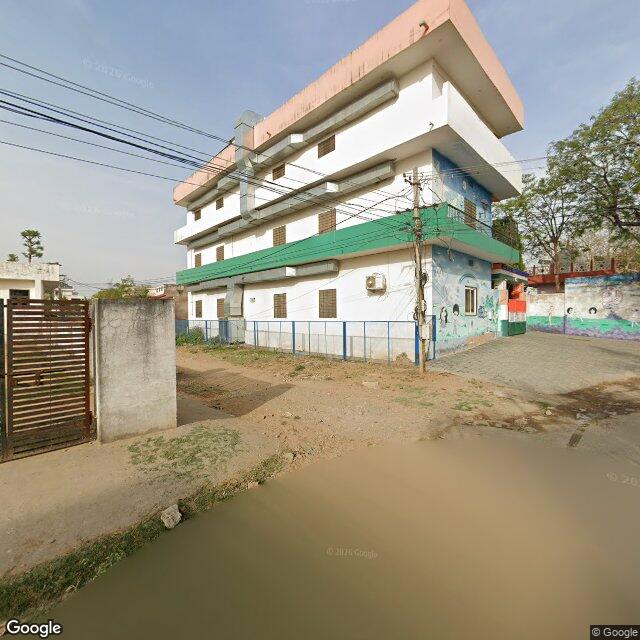

Differ; blind read fell. Gate shots show a blue mesh railing along the frontage, a setback, and a paved apron at the mural-side entrance - off-carriageway assembly space, so L2. Not L3: no separate pedestrian opening or continuous rail to a crossing.

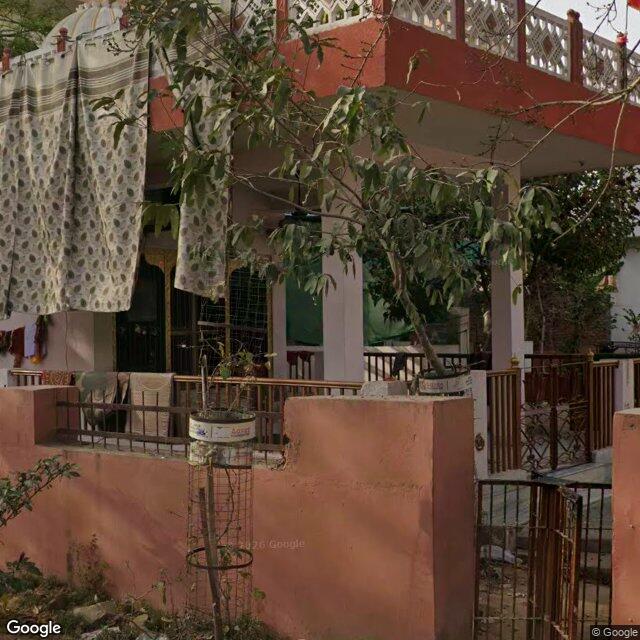

At the gate

On the frontage road

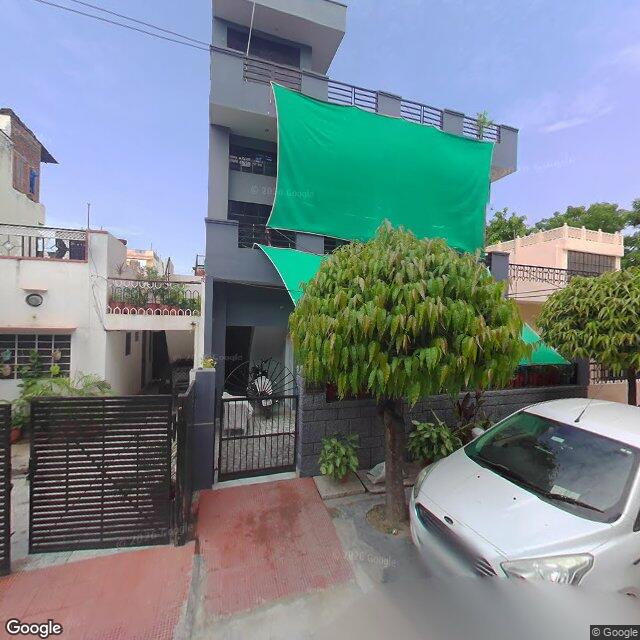

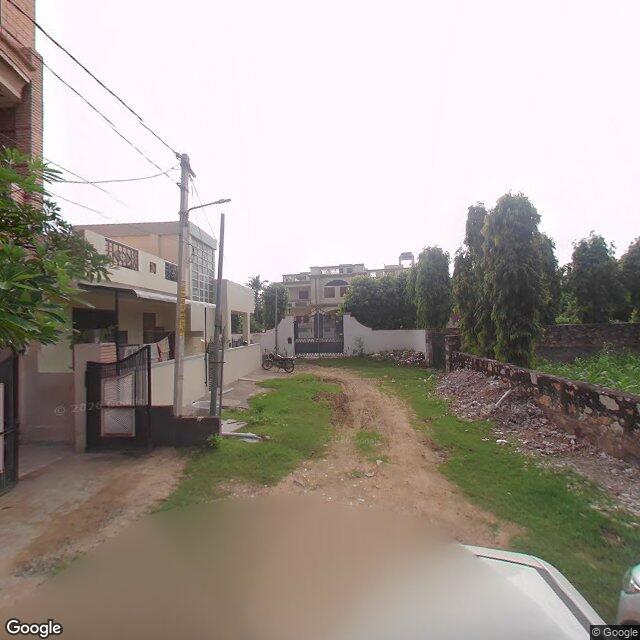

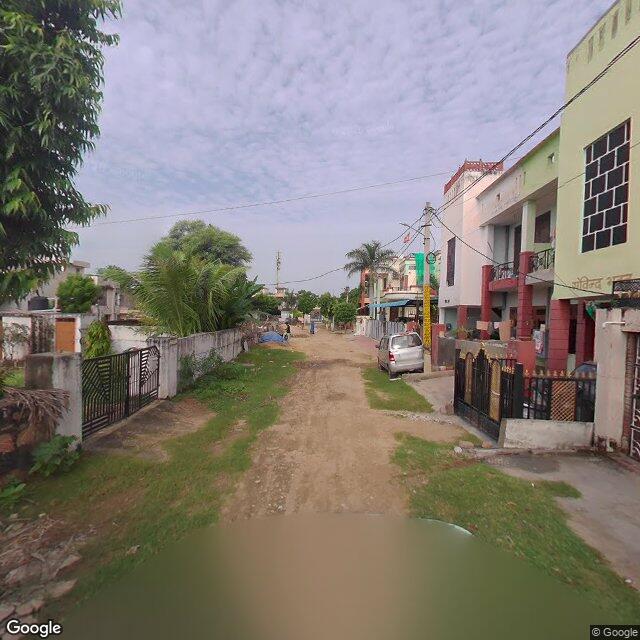

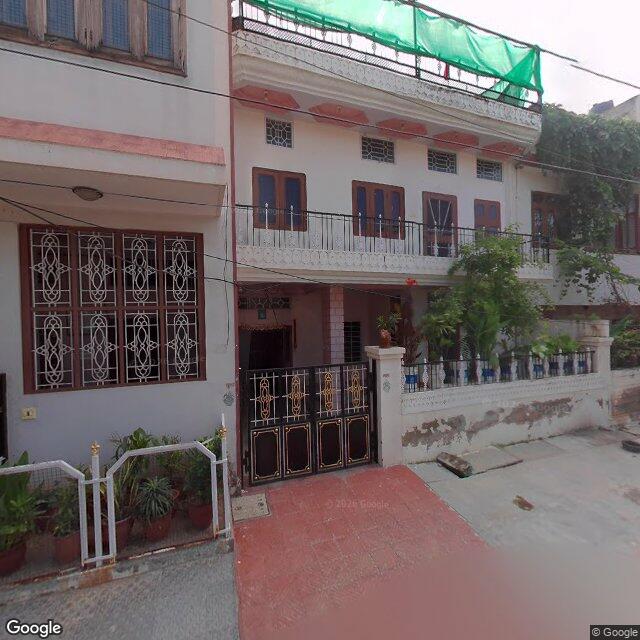

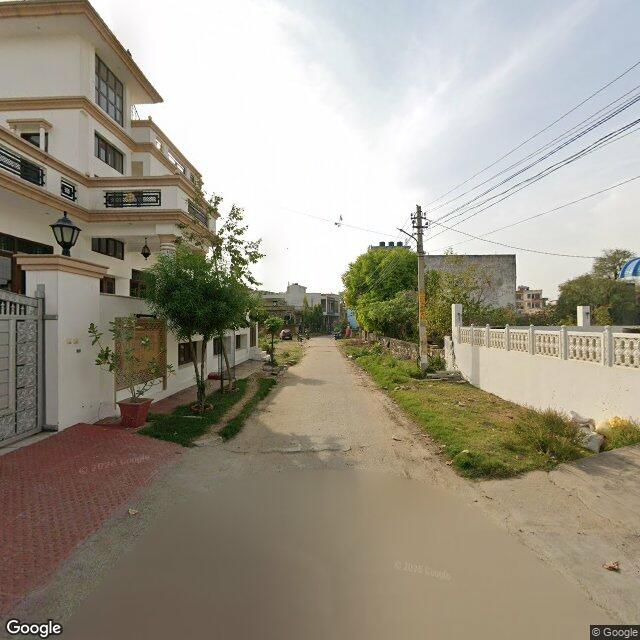

Along the street

Some captures sit on neighbouring lanes; older ones are shown greyed and were used only for context.

What must be fixed · 5 actions

What would make this road safe — and who owns each fix

Each action maps to a failing check, the relevant IRC:SP:32-2023 clause, and the responsible agency. Agency labels are provisional and correctable through the dispute channel.

01Lifts P1

Install a speed table or twin speed humps within 30 m of the gate

IRC:SP:32-2023 §5.13 · Table 5.1MCD / PWD · provisional

Speed humps near schools roughly halve child-pedestrian injury odds (Tester 2004); 30 km/h calmed zones ≈ 40% fewer casualties (Grundy 2009).

02Lifts P2

Mark a crossing within 20 m of the gate — table-top preferred

IRC:SP:32-2023 §5.4.3MCD / PWD · provisional

Raised crossings cut vehicle speeds at the exact conflict point.

03Lifts P3

Provide a continuous clear walking edge on the school side

IRC:SP:32-2023 §5.4.1MCD / PWD · provisional

A continuous footpath keeps children off the carriageway on the approach, not only at the gate.

04Lifts P4

School-zone warning signs on both approaches with the speed limit

IRC:SP:32-2023 §5.8MCD / PWD · provisional

The zone must announce itself to drivers before the gate.

05Lifts P5

Add space and a marked pick-up bay off the carriageway at the gate

IRC:SP:32-2023 §5.2MCD / PWD · provisional

Children should not step from the gate into a moving traffic lane.

Responsible-agency labels come from the CFI field instrument’s mapping and are correctable via the dispute channel.

Re-audit timeline

2026-08-09Audited

2027-02-09Re-audit due

Every published road is re-read every six months, or as soon as new Street View imagery lands, or on a sustained dispute.

Something wrong on this page?

The entrance, the imagery, a finding — if any of it is wrong, tell us. A dispute pauses this page while the audit is re-verified, and the correction is logged in the public record.

Dispute this audit
