Road-environment audit · SSI v0.3

The road outsideZest Studio by Priyanka

Shop #101, 1st Floor, 63/2, near Krsna Specs, near Prajakta Society, Bhugaon, Bavdhan, Pune, Maharashtra 411021, India18.50380, 73.76293audited 2026-08-06

12/100

Critically unsafeprovisional band

Critically unsafe. Almost nothing on this road protects a child from traffic on the way to the gate.

Of the five things we check, 3 are missing entirely.

This road · 12

0 · no protectioncomplete protection · 100

Checked twice, independently

Two AI readers on separate accounts · corrections logged in public

Confirmed

Corrected

Unresolved

See how each was judged

Of 153 roads scored so far, this one ranks 82 (worst first). The others scored between 0 and 41.

11.25points earned

64.75points we could see (65%)

17.4%provision

0.7exposure — arterial

12.2provision × exposure

→

12SSI · rounded to nearest · v0.3

Only what the imagery could actually resolve is scored (65% of the rubric here); the rest is left uncounted rather than guessed. A road with full protective infrastructure scores near 100.

The road in context · derived from public data

Where this road sits

Before the checks: what kind of road this is, how it meets other roads, and what passes it. These lines describe the road and its surroundings — they do not change the score.

Road layout around the gate, drawn from OpenStreetMap — Road layout · drawn from OpenStreetMap · blue dot = school coordinate

FrontageThe gate opens onto an arterial road (Paud Road), on its S side

Junctionthe gate area sits at a 4-leg junction

Street activityno bus stop or shops mapped within 150 m (OpenStreetMap)

Crash recordcrash-location data is not yet available for Delhi — this line will be added when a public source lands

Exposure contextElevated — 52/100 (partial: no crash component yet). Describes how much traffic and crash risk passes this road — context only, never part of the road score (method: exposure v1, Data page)

Road layout data © OpenStreetMap contributors (ODbL), retrieved 13 Aug 2026 · crash data: Jaipur Police · derivations: `exposure_v1` on the Data page.

What we found · five checks · IRC:SP:32-2023

Five things we checked — and the photo behind each

Each check was read once, then verified blind by a second reader on a separate account. The photo each finding came from sits right beside it. Tap “see how this was judged” for the full reasoning.

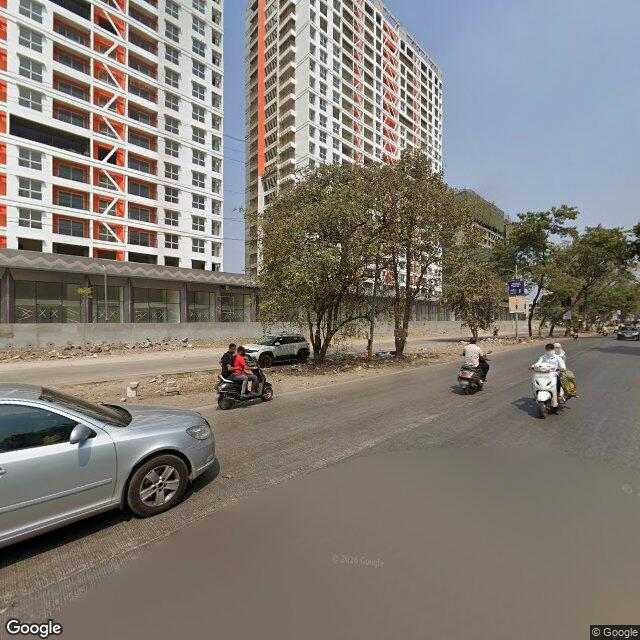

Slowing traffic downP1 · Physical speed control

Nothing slows traffic at the gate

No speed hump, table or rumble strip on the approach — vehicles reach the gate at full speed.

Absent

0 of 30 points

LevelNone (L0)

Points0 of 30

ConfidenceHigh

Coverage seen≈70%

VerificationConfirmed — both readers agreed

The full reasoning

No physical speed-control device (hump, table, rumble strip) visible on any observed stretch of the arterial frontage; carriageway surface is plain asphalt in all approach views.

Getting across the roadP2 · Safe crossing

No safe place to cross

No marked or raised pedestrian crossing at or near the gate.

Absent

0 of 25 points

LevelNone (L0)

Points0 of 25

ConfidenceMed

Coverage seen≈65%

VerificationConfirmed — both readers agreed

The full reasoning

No marked pedestrian crossing (zebra or otherwise) visible on the frontage carriageway in any view; no refuge island present. Undivided wide carriageway.

◑

Walking without stepping into trafficP3 · Footpath & separation

A broken walking edge

A walking edge exists but is broken or blocked for most of the frontage.

Partial⟳ Corrected in review

MinimalMinimal

An independent second reader changed this — the two readings disagreed, and the evidence below settled it.

Also cited for this check

6.25 of 25 points

LevelMinimal (L1)

Points6.25 of 25

ConfidenceMed

Coverage seen≈60%

VerificationCorrected in the second reading

The full reasoning

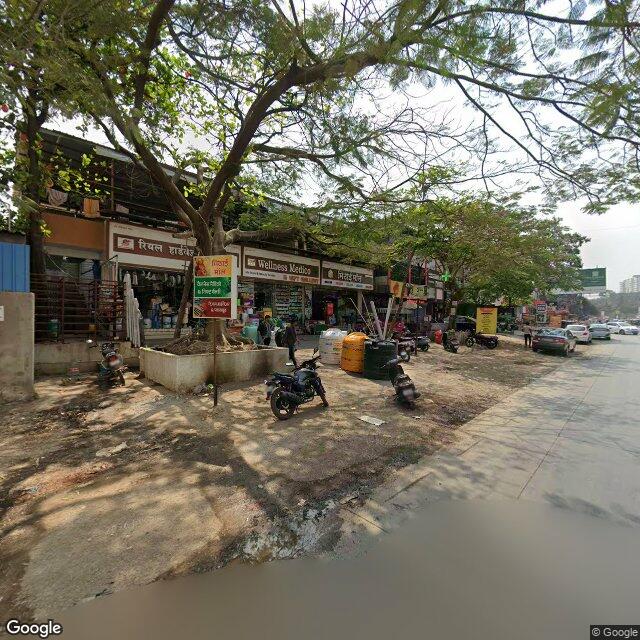

Disagreement (audit L1 vs blind L0) decided by paczcWSGZXDJ_h204 and the gate_wide frame. paczcWSGZXDJ_h204 shows a built curbed tree-pit/planter and patches of paved apron in front of the shop row, evidence that footpath surface exists in places; but it is broken and gives way to bare dirt/parking over most of the frontage, and the road-view side is an undeveloped earth shoulder. Arterial (Collector+) requires a raised footpath, which is absent/discontinuous rather than wholly non-existent. That is L1 (exists but broken/blocked along most of frontage), not L0. Blind's L0 fell for missing the patchy built surface.

Being seen and expectedP4 · Signage & zone identity

No school-zone signs

Drivers get no warning that a school gate is here.

Absent

0 of 10 points

LevelNone (L0)

Points0 of 10

ConfidenceMed

Coverage seen≈55%

VerificationConfirmed — both readers agreed

The full reasoning

No school-warning sign, speed-limit sign, or school-zone identity asset observed on the frontage. Poles carry only directional/informational boards (green directional, purple arrow, blue informational); none read as school warning or speed limit.

◑

The gate itselfP5 · Gate environment

Space and a railing at the gate

A clear setback or railing gives room to gather off the carriageway.

Partial⟳ Corrected in review

MinimalBasic

An independent second reader changed this — the two readings disagreed, and the evidence below settled it.

5 of 10 points

LevelBasic (L2)

Points5 of 10

ConfidenceMed

Coverage seen≈70%

VerificationCorrected in the second reading

The full reasoning

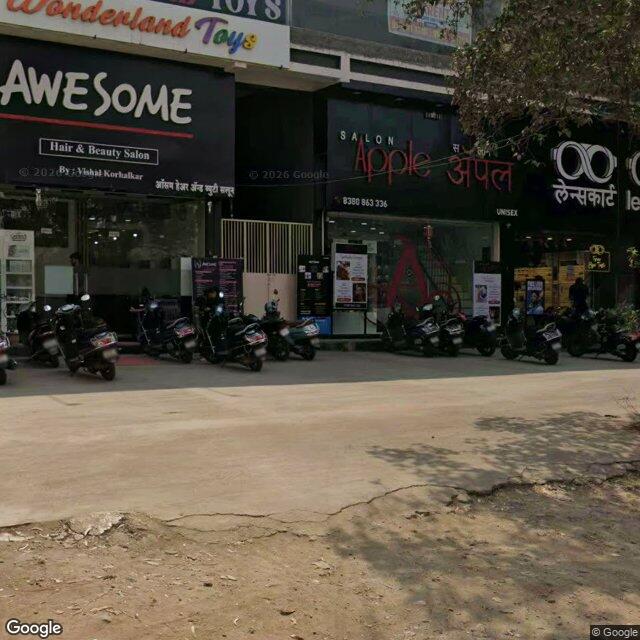

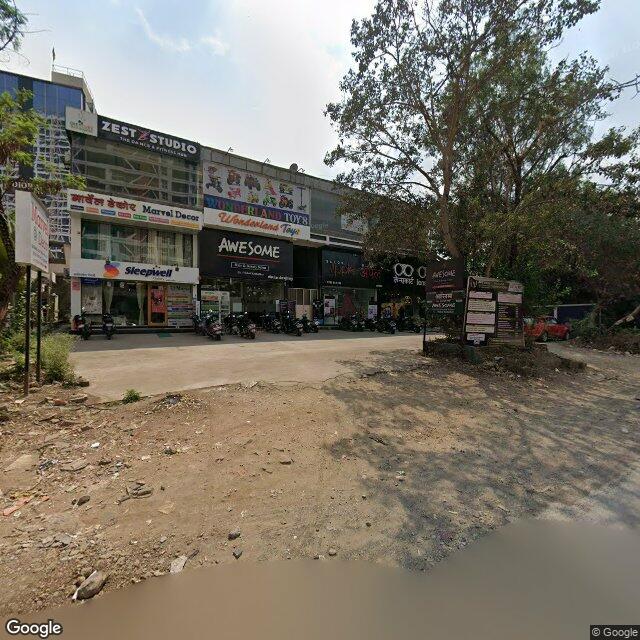

Disagreement (blind L2 vs audit L1) decided by the two gate frames (pYNdSXkyHHBd_h192 wide+zoom). They show the shopfront row set well back behind a paved apron and a large, deep open forecourt before the arterial carriageway, giving substantial off-carriageway assembly space away from moving traffic. That satisfies L2 (clear setback giving off-carriageway assembly space). No separate pedestrian opening, continuous rail, or marked pick-up/drop-off bay is visible, so it caps at L2. The audit's 'minimal informal setback' (L1) understated the forecourt depth; audit's read fell. Confidence MED as the setback is undeveloped/shared rather than a built assembly area.

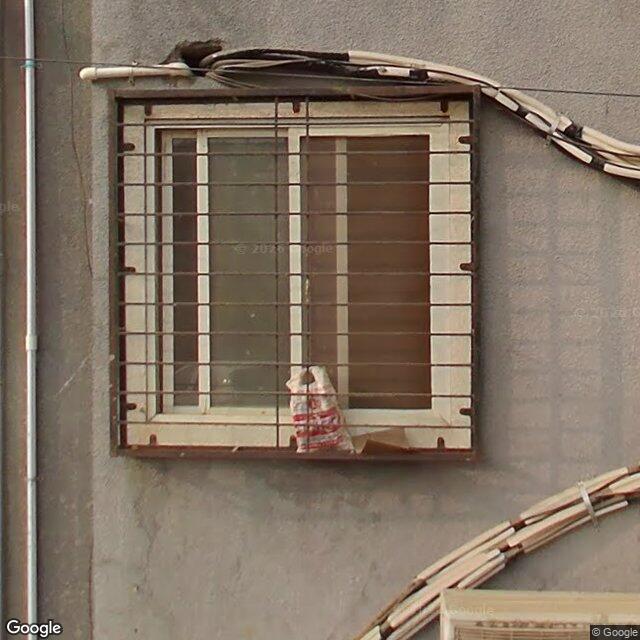

At the gate

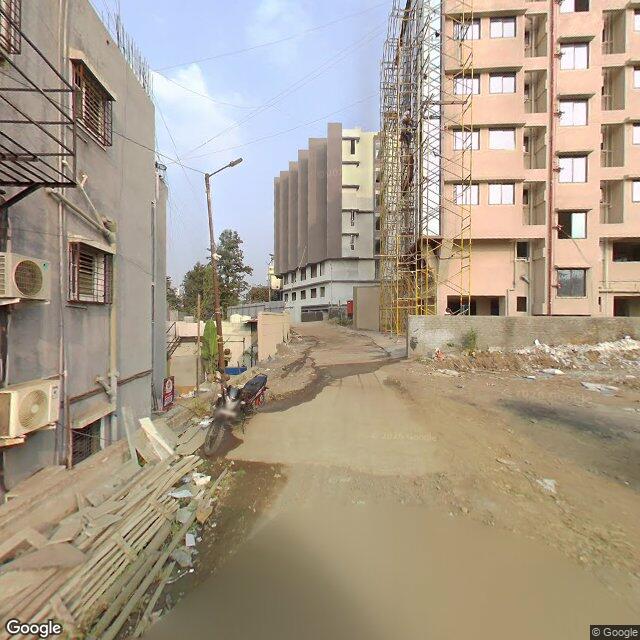

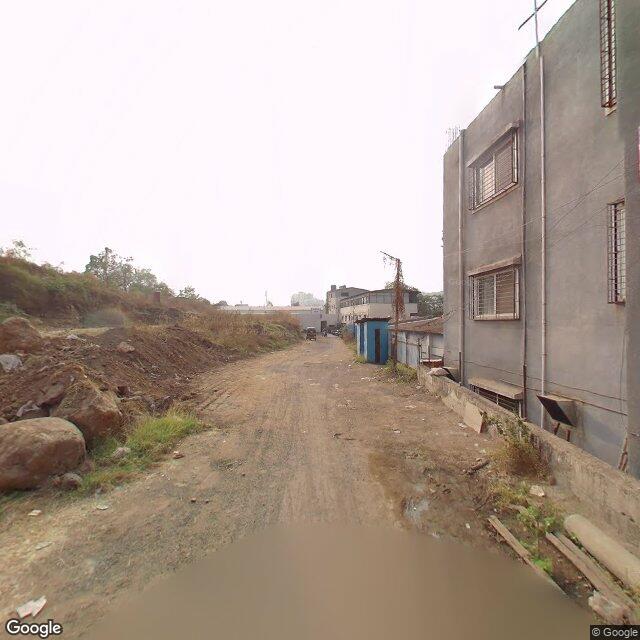

On the frontage road

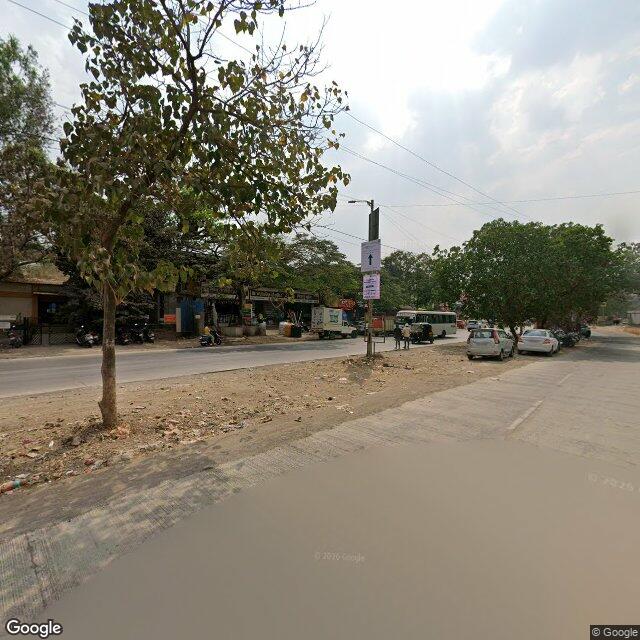

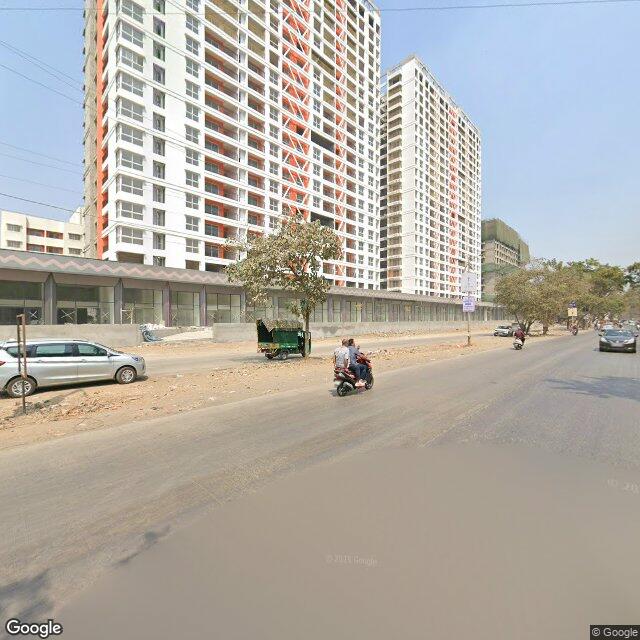

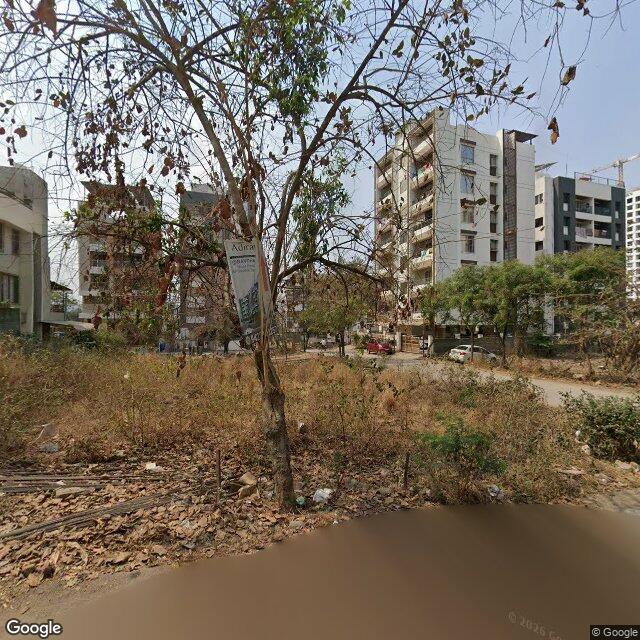

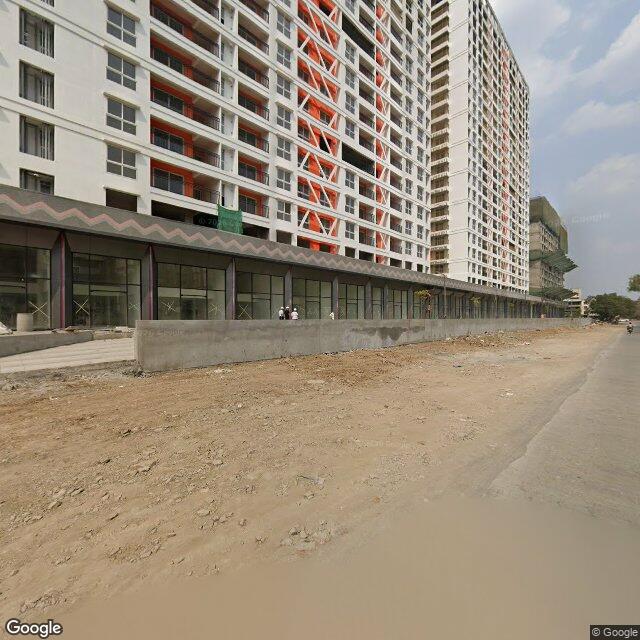

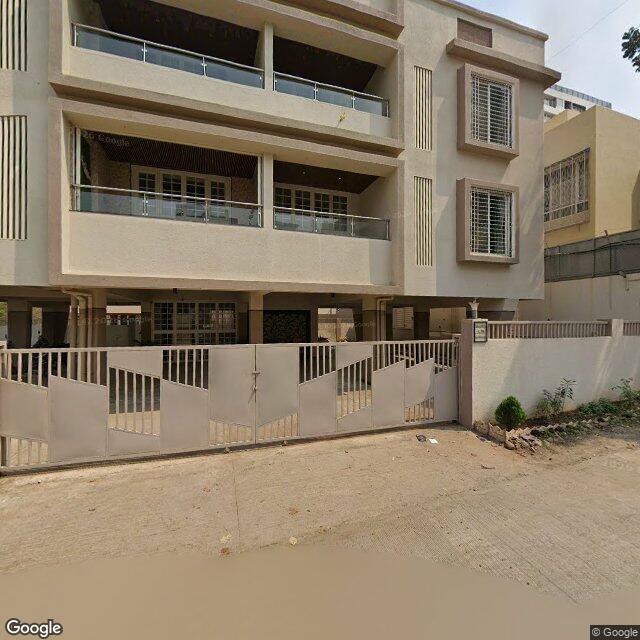

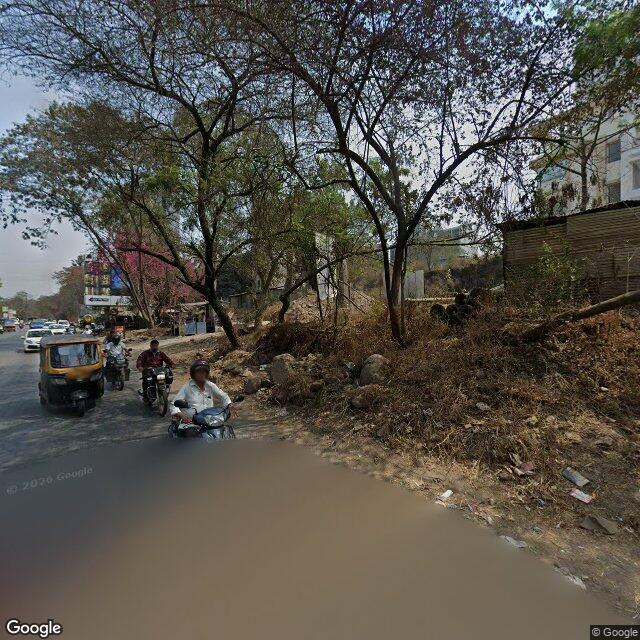

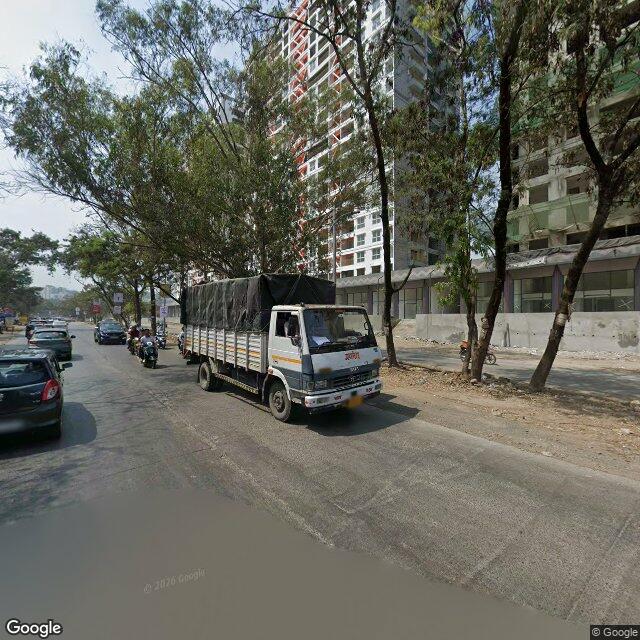

Along the street

Some captures sit on neighbouring lanes; older ones are shown greyed and were used only for context.

What must be fixed · 5 actions

What would make this road safe — and who owns each fix

Each action maps to a failing check, the relevant IRC:SP:32-2023 clause, and the responsible agency. Agency labels are provisional and correctable through the dispute channel.

01Lifts P1

Install a speed table or twin speed humps within 30 m of the gate

IRC:SP:32-2023 §5.13 · Table 5.1MCD / PWD · provisional

Speed humps near schools roughly halve child-pedestrian injury odds (Tester 2004); 30 km/h calmed zones ≈ 40% fewer casualties (Grundy 2009).

02Lifts P2

Mark a crossing within 20 m of the gate — table-top preferred

IRC:SP:32-2023 §5.4.3MCD / PWD · provisional

Raised crossings cut vehicle speeds at the exact conflict point.

03Lifts P3

Provide a continuous clear walking edge on the school side

IRC:SP:32-2023 §5.4.1MCD / PWD · provisional

A continuous footpath keeps children off the carriageway on the approach, not only at the gate.

04Lifts P4

School-zone warning signs on both approaches with the speed limit

IRC:SP:32-2023 §5.8MCD / PWD · provisional

The zone must announce itself to drivers before the gate.

05Lifts P5

Add space and a marked pick-up bay off the carriageway at the gate

IRC:SP:32-2023 §5.2MCD / PWD · provisional

Children should not step from the gate into a moving traffic lane.

Responsible-agency labels come from the CFI field instrument’s mapping and are correctable via the dispute channel.

Re-audit timeline

2026-08-06Audited

2027-02-06Re-audit due

Every published road is re-read every six months, or as soon as new Street View imagery lands, or on a sustained dispute.

Something wrong on this page?

The entrance, the imagery, a finding — if any of it is wrong, tell us. A dispute pauses this page while the audit is re-verified, and the correction is logged in the public record.

Dispute this audit
