Road-environment audit · SSI v0.3

The road outsideGoodwill Public School

XQW7+J3P, New Loha Mandi Rd, Shankar Colony, Harmada, Jaipur, Rajasthan 302013, India26.99658, 75.76271audited 2026-08-09

15/100

Critically unsafeprovisional band

Critically unsafe. Almost nothing on this road protects a child from traffic on the way to the gate.

Of the five things we check, 3 are missing entirely.

This road · 15

0 · no protectioncomplete protection · 100

Checked twice, independently

Two AI readers on separate accounts · corrections logged in public

Confirmed

Corrected

Unresolved

See how each was judged

Of 153 roads scored so far, this one ranks 105 (worst first). The others scored between 0 and 41.

11.25points earned

69.25points we could see (69%)

16.2%provision

0.9exposure — collector

14.6provision × exposure

→

15SSI · rounded to nearest · v0.3

Only what the imagery could actually resolve is scored (69% of the rubric here); the rest is left uncounted rather than guessed. A road with full protective infrastructure scores near 100.

The road in context · derived from public data

Where this road sits

Before the checks: what kind of road this is, how it meets other roads, and what passes it. These lines describe the road and its surroundings — they do not change the score.

Road layout around the gate, drawn from OpenStreetMap — Road layout · drawn from OpenStreetMap · blue dot = school coordinate · red = fatal-crash points (Jaipur Police)

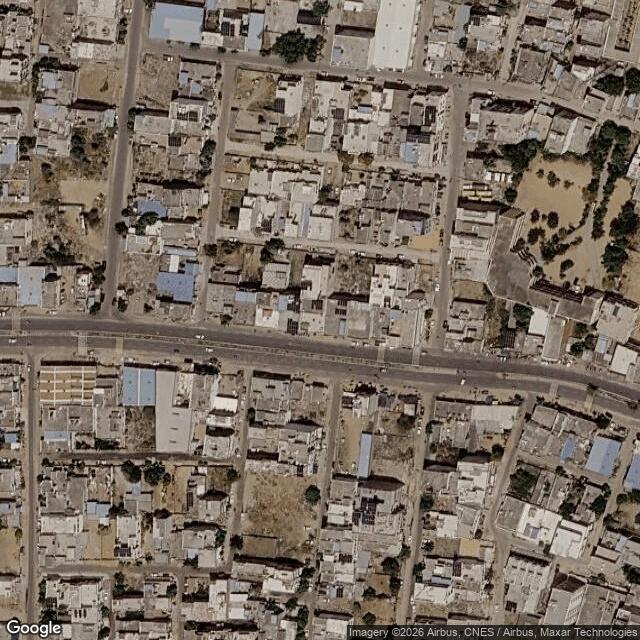

Satellite view of the same area — Satellite · © Google · retrieved 2026-08-13 (capture date not published by the imagery API)

FrontageThe gate opens onto a collector road, on its N side

Junctionthe gate area sits at a 4-leg junction

Street activityno bus stop or shops mapped within 150 m (OpenStreetMap)

Crash record2 road deaths within 500 m of the gate; 3 of the recorded crashes fell on school days, 7 am–6 pm (Jaipur Police crash data)

Exposure contextElevated — 43/100. Describes how much traffic and crash risk passes this road — context only, never part of the road score (method: exposure v1, Data page)

Road layout data © OpenStreetMap contributors (ODbL), retrieved 13 Aug 2026 · crash data: Jaipur Police · derivations: `exposure_v1` on the Data page.

What we found · five checks · IRC:SP:32-2023

Five things we checked — and the photo behind each

Each check was read once, then verified blind by a second reader on a separate account. The photo each finding came from sits right beside it. Tap “see how this was judged” for the full reasoning.

Slowing traffic downP1 · Physical speed control

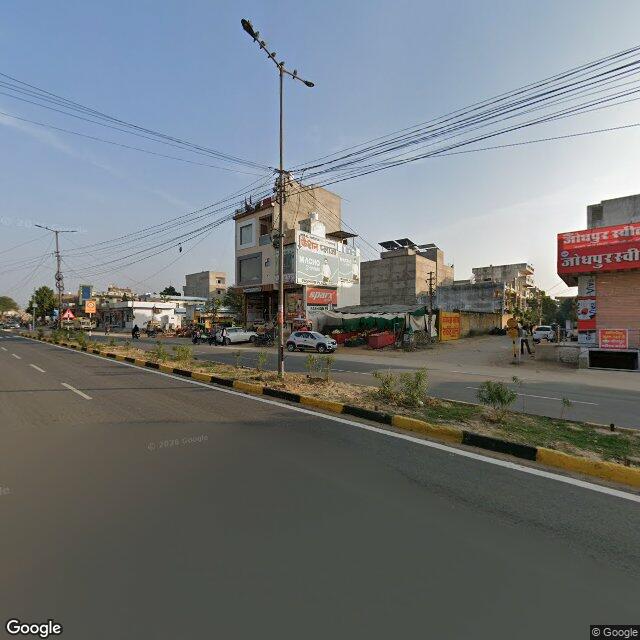

Nothing slows traffic at the gate

No speed hump, table or rumble strip on the approach — vehicles reach the gate at full speed.

Absent

Also cited for this check

0 of 30 points

LevelNone (L0)

Points0 of 30

ConfidenceHigh

Coverage seen≈70%

VerificationConfirmed — both readers agreed

The full reasoning

No speed humps, tables, rumble strips or raised crossings visible anywhere in the zone. Frontage carriageway in both directions and along-zone samples show plain asphalt with ordinary lane-dividing dashes only (not traffic-calming markings). No calming device within 30 m of the gate on either approach.

Getting across the roadP2 · Safe crossing

No safe place to cross

No marked or raised pedestrian crossing at or near the gate.

Absent

Also cited for this check

0 of 25 points

LevelNone (L0)

Points0 of 25

ConfidenceHigh

Coverage seen≈65%

VerificationConfirmed — both readers agreed

The full reasoning

No marked pedestrian crossing (zebra) at the gate or along the frontage in either direction, not even a faded remnant. The immediate gate frontage is an unpaved dirt shoulder where no marking could exist. A planted median is present and could serve as a refuge, but no crossing is provided to pair with it.

◑

Walking without stepping into trafficP3 · Footpath & separation

A broken walking edge

A walking edge exists but is broken or blocked for most of the frontage.

Partial⟳ Corrected in review

NoneMinimal

An independent second reader changed this — the two readings disagreed, and the evidence below settled it.

Also cited for this check

6.25 of 25 points

LevelMinimal (L1)

Points6.25 of 25

ConfidenceMed

Coverage seen≈70%

VerificationCorrected in the second reading

The full reasoning

Audit L0 understates: paved forecourts at gate and adjacent shopfronts give intermittent walkable edge, broken by dirt shoulder along most frontage = L1. No continuous raised footpath. Audit's L0 falls.

Being seen and expectedP4 · Signage & zone identity

No school-zone signs

Drivers get no warning that a school gate is here.

Absent

Also cited for this check

0 of 10 points

LevelNone (L0)

Points0 of 10

ConfidenceMed

Coverage seen≈60%

VerificationConfirmed — both readers agreed

The full reasoning

No school-warning signs on either approach, no speed-limit sign or carriageway speed stamp, and no 2023 zone-identity assets (transition sign, zone-start, fluorescent yellow-green faces, red-white markings, beacon hardware) observed. All visible signage is commercial (shops, hospital, coaching boards). Roadside poles near the gate are only partly visible so signage may be under-sampled.

◑

The gate itselfP5 · Gate environment

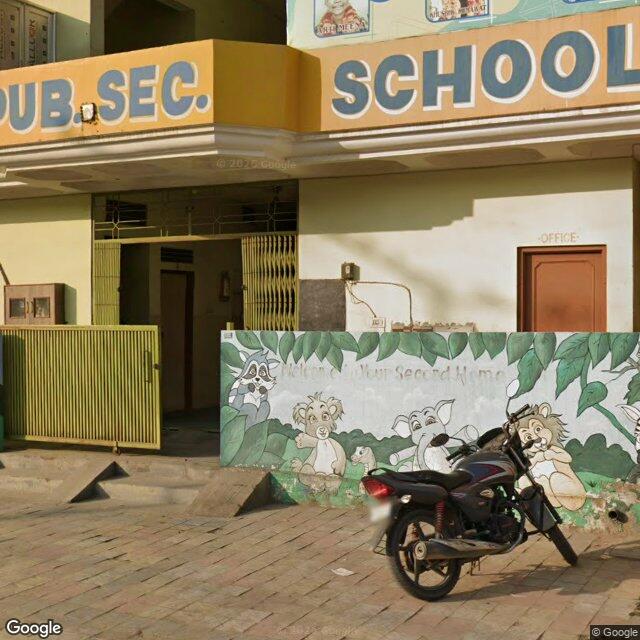

Space and a railing at the gate

A clear setback or railing gives room to gather off the carriageway.

Partial⟳ Corrected in review

MinimalBasic

An independent second reader changed this — the two readings disagreed, and the evidence below settled it.

Also cited for this check

5 of 10 points

LevelBasic (L2)

Points5 of 10

ConfidenceHigh

Coverage seen≈85%

VerificationCorrected in the second reading

The full reasoning

Audit L1 understates: gate sits behind a clear brick forecourt with triangular bollards giving genuine off-carriageway assembly space = L2. No separate pedestrian wicket or gate-to-crossing rail, so not L3. Audit's L1 falls.

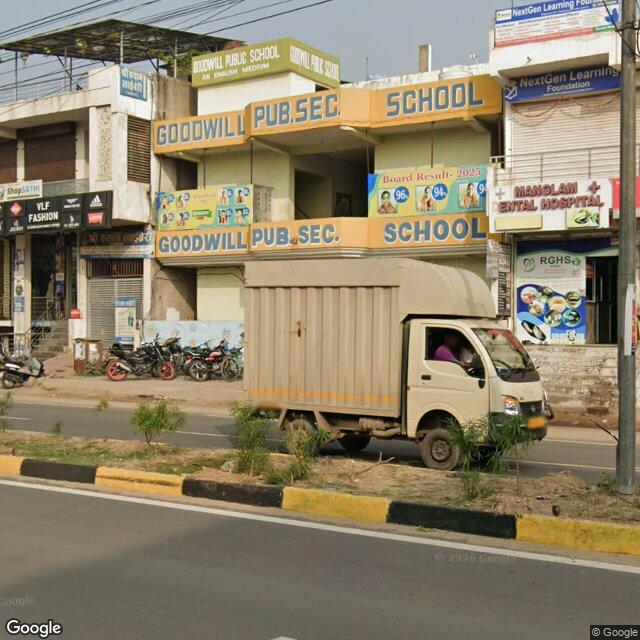

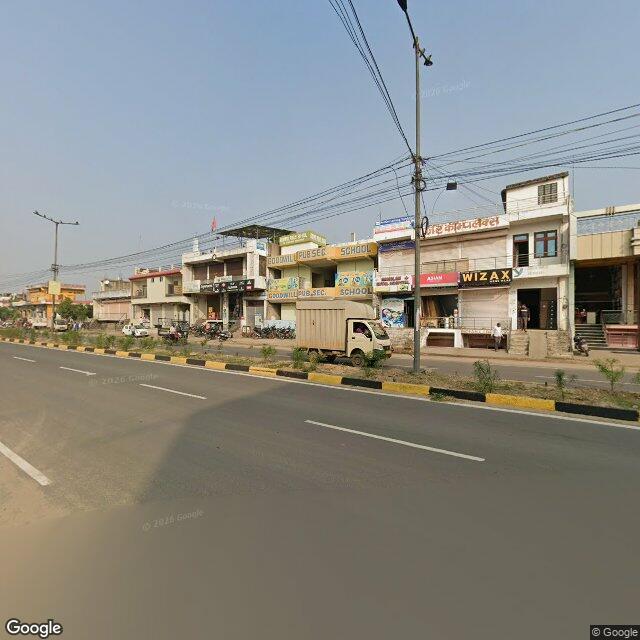

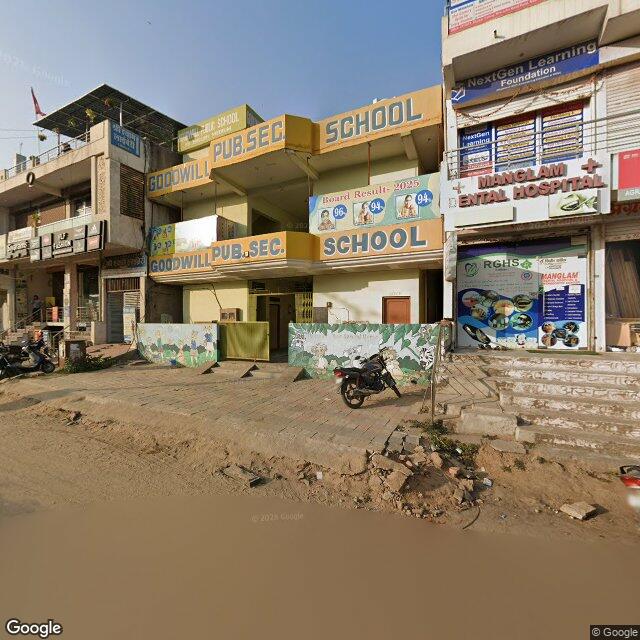

At the gate

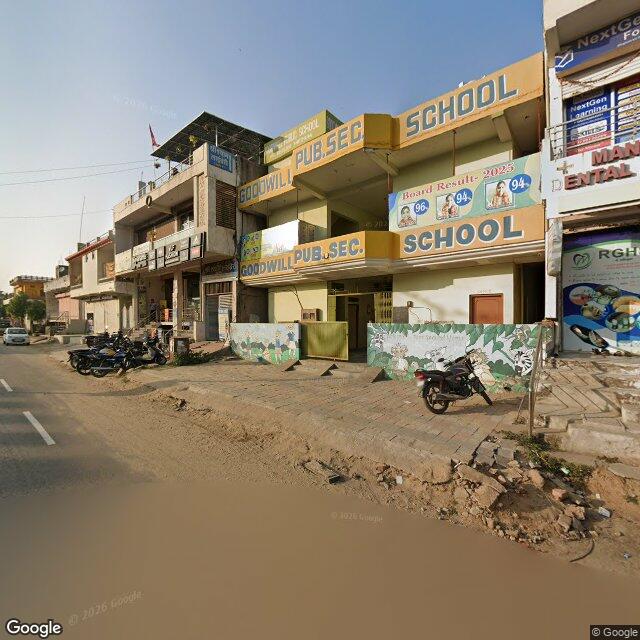

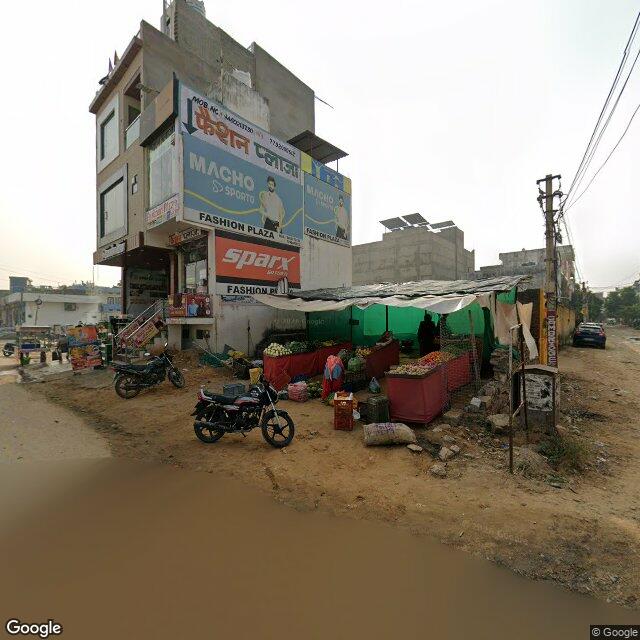

On the frontage road

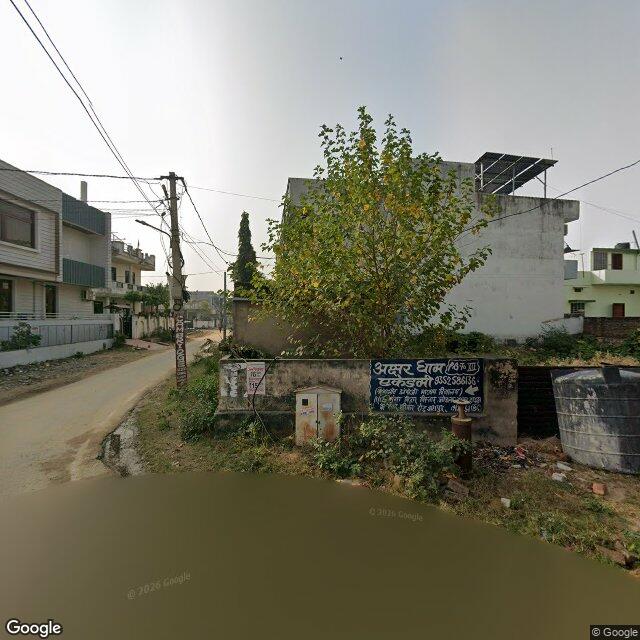

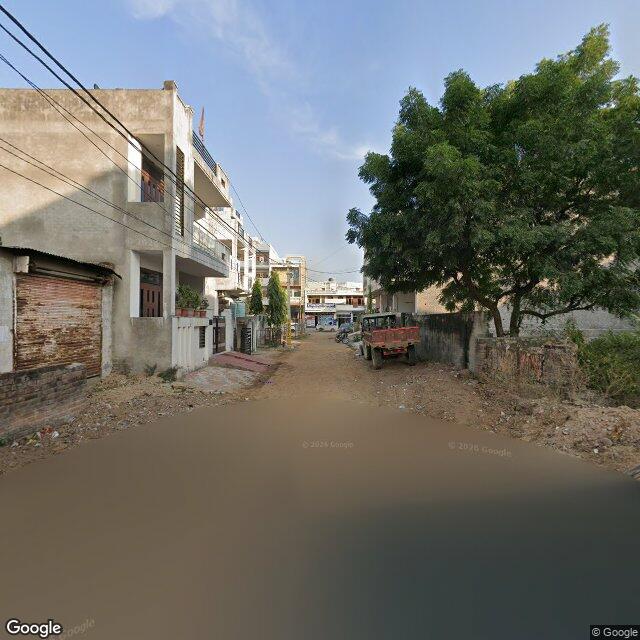

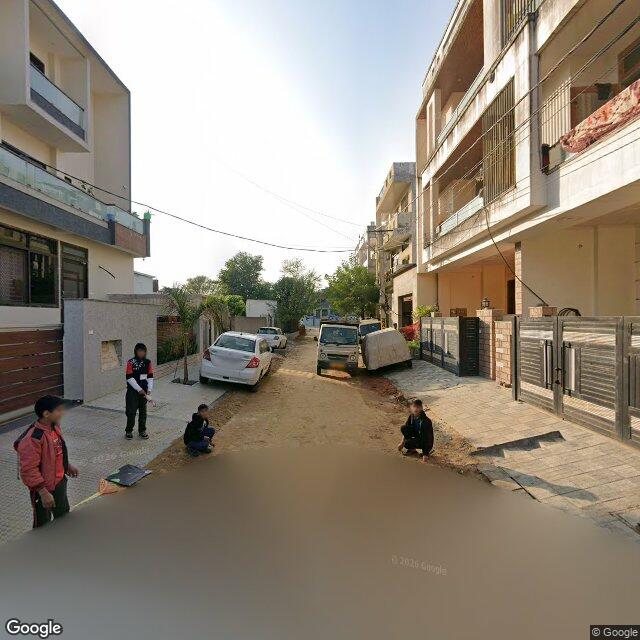

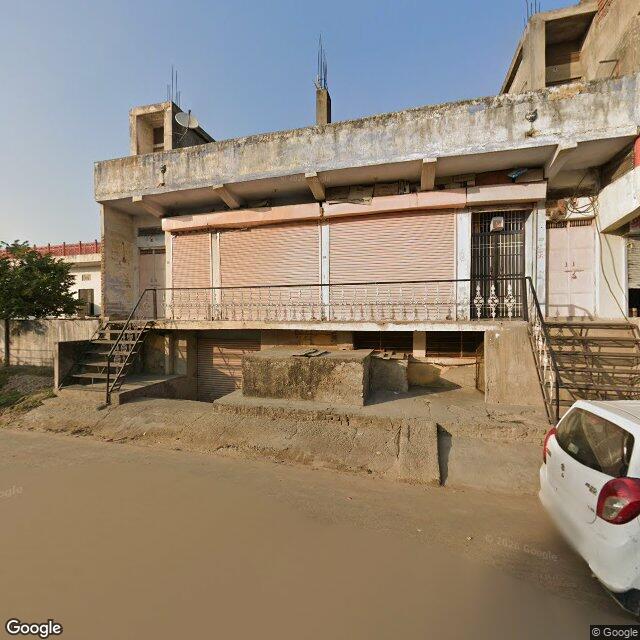

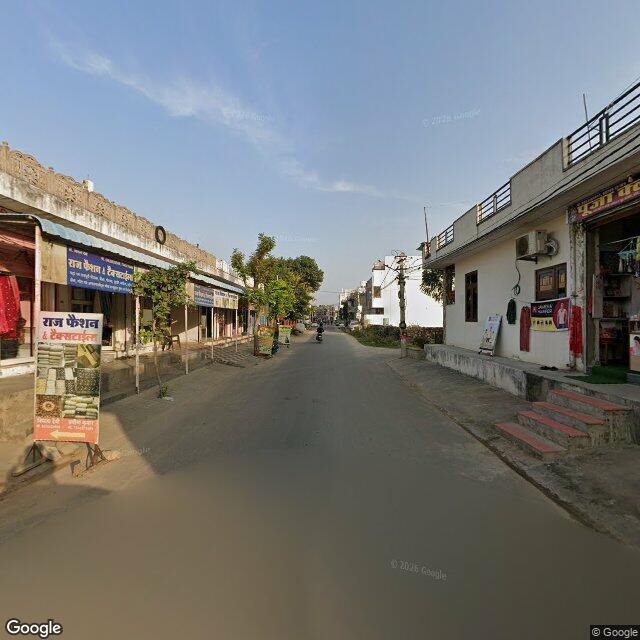

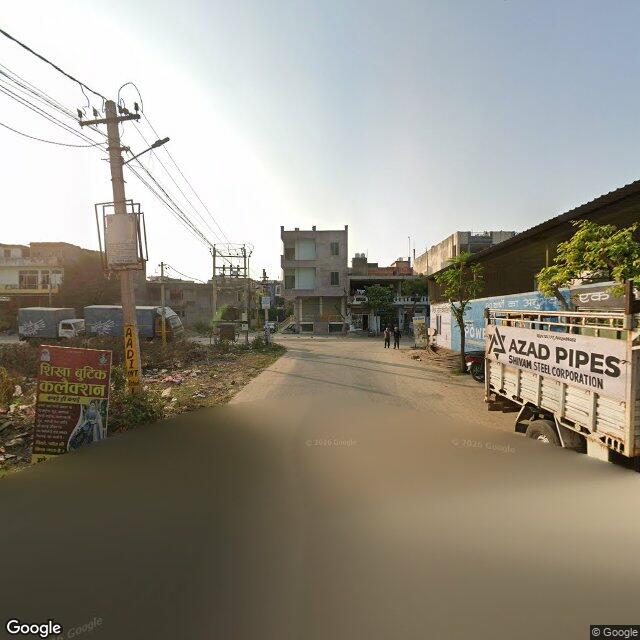

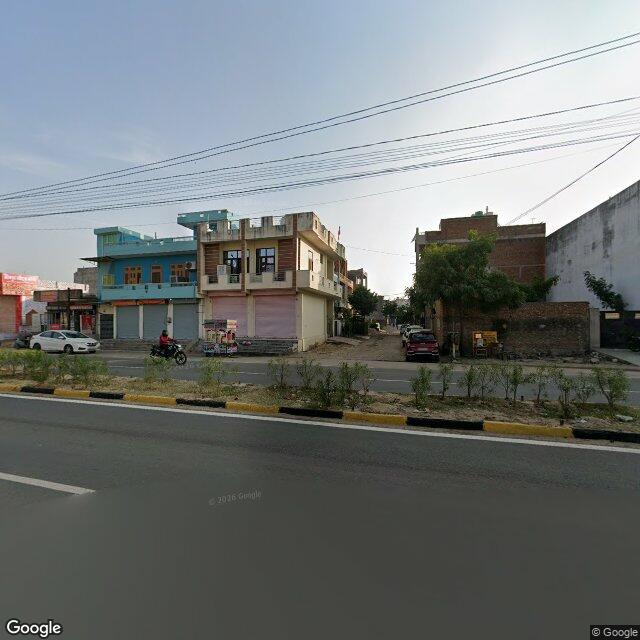

Along the street

Some captures sit on neighbouring lanes; older ones are shown greyed and were used only for context.

What must be fixed · 5 actions

What would make this road safe — and who owns each fix

Each action maps to a failing check, the relevant IRC:SP:32-2023 clause, and the responsible agency. Agency labels are provisional and correctable through the dispute channel.

01Lifts P1

Install a speed table or twin speed humps within 30 m of the gate

IRC:SP:32-2023 §5.13 · Table 5.1MCD / PWD · provisional

Speed humps near schools roughly halve child-pedestrian injury odds (Tester 2004); 30 km/h calmed zones ≈ 40% fewer casualties (Grundy 2009).

02Lifts P2

Mark a crossing within 20 m of the gate — table-top preferred

IRC:SP:32-2023 §5.4.3MCD / PWD · provisional

Raised crossings cut vehicle speeds at the exact conflict point.

03Lifts P3

Provide a continuous clear walking edge on the school side

IRC:SP:32-2023 §5.4.1MCD / PWD · provisional

A continuous footpath keeps children off the carriageway on the approach, not only at the gate.

04Lifts P4

School-zone warning signs on both approaches with the speed limit

IRC:SP:32-2023 §5.8MCD / PWD · provisional

The zone must announce itself to drivers before the gate.

05Lifts P5

Add space and a marked pick-up bay off the carriageway at the gate

IRC:SP:32-2023 §5.2MCD / PWD · provisional

Children should not step from the gate into a moving traffic lane.

Responsible-agency labels come from the CFI field instrument’s mapping and are correctable via the dispute channel.

Re-audit timeline

2026-08-09Audited

2027-02-09Re-audit due

Every published road is re-read every six months, or as soon as new Street View imagery lands, or on a sustained dispute.
