Road-environment audit · SSI v0.3

The road outsideBharat English School & jr. College

19/2, TP scheme, Shivajinagar, Narveer Tanaji Wadi, Shivajinagar, Pune, Maharashtra 411005, India18.53183, 73.84897audited 2026-08-06

24/100

Unsafeprovisional band

Unsafe. Very little on this road protects a child crossing to the gate.

Of the five things we check, 3 are missing entirely.

This road · 24

0 · no protectioncomplete protection · 100

Checked twice, independently

Two AI readers on separate accounts · corrections logged in public

Confirmed

Corrected

Unresolved

See how each was judged

Of 153 roads scored so far, this one ranks 134 (worst first). The others scored between 0 and 41.

23.75points earned

68points we could see (68%)

34.9%provision

0.7exposure — arterial

24.4provision × exposure

→

24SSI · rounded to nearest · v0.3

Only what the imagery could actually resolve is scored (68% of the rubric here); the rest is left uncounted rather than guessed. A road with full protective infrastructure scores near 100.

The road in context · derived from public data

Where this road sits

Before the checks: what kind of road this is, how it meets other roads, and what passes it. These lines describe the road and its surroundings — they do not change the score.

Road layout around the gate, drawn from OpenStreetMap — Road layout · drawn from OpenStreetMap · blue dot = school coordinate

FrontageThe gate opens onto an arterial road, on its W side

Junctionthe gate area sits at a 3-leg junction

Street activityno bus stop or shops mapped within 150 m (OpenStreetMap)

Crash recordcrash-location data is not yet available for Delhi — this line will be added when a public source lands

Exposure contextElevated — 48/100 (partial: no crash component yet). Describes how much traffic and crash risk passes this road — context only, never part of the road score (method: exposure v1, Data page)

Road layout data © OpenStreetMap contributors (ODbL), retrieved 13 Aug 2026 · crash data: Jaipur Police · derivations: `exposure_v1` on the Data page.

What we found · five checks · IRC:SP:32-2023

Five things we checked — and the photo behind each

Each check was read once, then verified blind by a second reader on a separate account. The photo each finding came from sits right beside it. Tap “see how this was judged” for the full reasoning.

Slowing traffic downP1 · Physical speed control

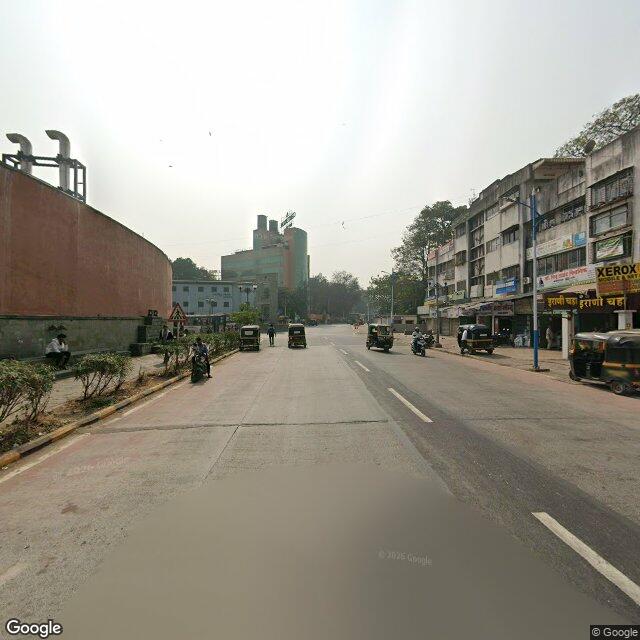

Nothing slows traffic at the gate

No speed hump, table or rumble strip on the approach — vehicles reach the gate at full speed.

Absent

Also cited for this check

0 of 30 points

LevelNone (L0)

Points0 of 30

ConfidenceHigh

Coverage seen≈70%

VerificationConfirmed — both readers agreed

The full reasoning

No speed humps, raised tables, or rumble strips visible on the arterial carriageway along the frontage or on the approaches to either candidate gate; surface is smooth asphalt with lane markings only. Google foreground blur limits the immediate at-gate strip, but 20-40 m approaches are visible in multiple road/trav frames.

Getting across the roadP2 · Safe crossing

No safe place to cross

No marked or raised pedestrian crossing at or near the gate.

Absent

Also cited for this check

0 of 25 points

LevelNone (L0)

Points0 of 25

ConfidenceMed

Coverage seen≈60%

VerificationConfirmed — both readers agreed

The full reasoning

No legible marked pedestrian crossing (zebra or table-top) visible near either candidate gate; carriageway shows dashed lane lines and red-painted edge strips only. The frontage is a wide undivided carriageway, so any crossing here would require a refuge for L3+. No such crossing observed within the visible stretch.

✓

Walking without stepping into trafficP3 · Footpath & separation

Footpaths on both sides

A continuous walking edge runs along both sides of the frontage.

Present

Also cited for this check

18.75 of 25 points

LevelGood (L3)

Points18.75 of 25

ConfidenceHigh

Coverage seen≈80%

VerificationConfirmed — both readers agreed

The full reasoning

Continuous raised tiled footpath with kerb runs along both sides of the arterial frontage; tree grates and tactile paving present at the building entrances. No continuous guard-rail or bollard line separating footpath from carriageway gate-to-crossing, so L4 not met. Parked motorcycles on the footpath are momentary and ignored.

Being seen and expectedP4 · Signage & zone identity

No school-zone signs

Drivers get no warning that a school gate is here.

Absent

0 of 10 points

LevelNone (L0)

Points0 of 10

ConfidenceMed

Coverage seen≈60%

VerificationConfirmed — both readers agreed

The full reasoning

An indistinct triangular warning sign and a circular red-bordered regulatory (likely speed-limit) sign are visible at distance on the arterial, but neither the warning face nor the regulatory value can be read at this resolution; no school-warning sign can be confirmed. LOW confidence, so the lower level is scored.

◑

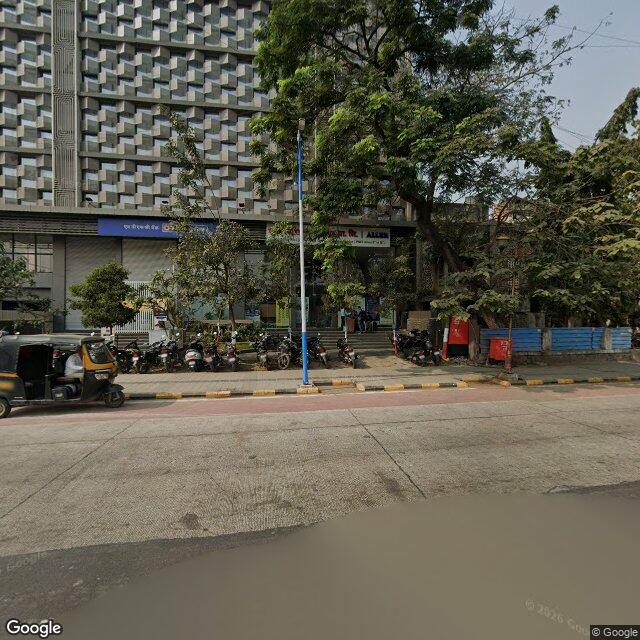

The gate itselfP5 · Gate environment

Space and a railing at the gate

A clear setback or railing gives room to gather off the carriageway.

Partial

5 of 10 points

LevelBasic (L2)

Points5 of 10

ConfidenceMed

Coverage seen≈60%

VerificationConfirmed — both readers agreed

The full reasoning

Main-entrance building fronts a wide raised tiled footpath giving clear off-carriageway assembly space, entrance set back with steps up from the footpath. No separate dedicated pedestrian opening or continuous rail from gate to a crossing is evident, so L3 not met.

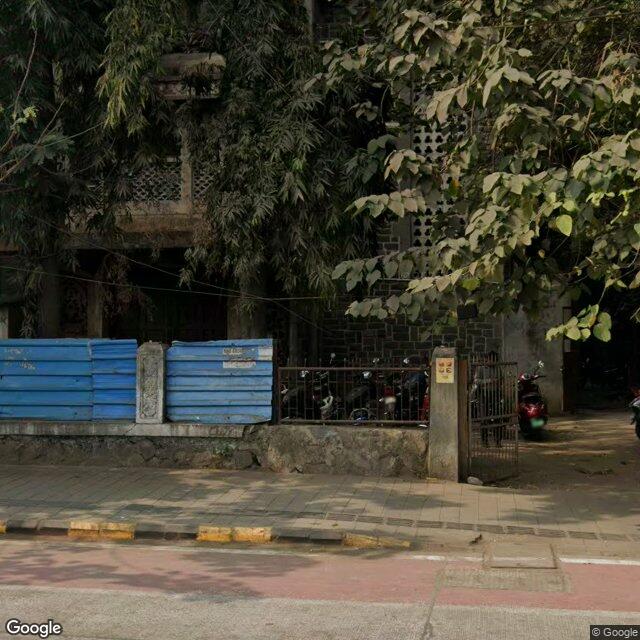

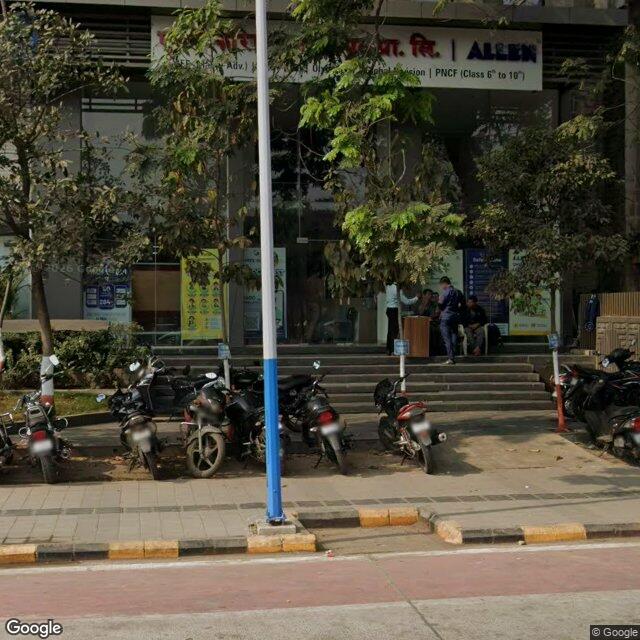

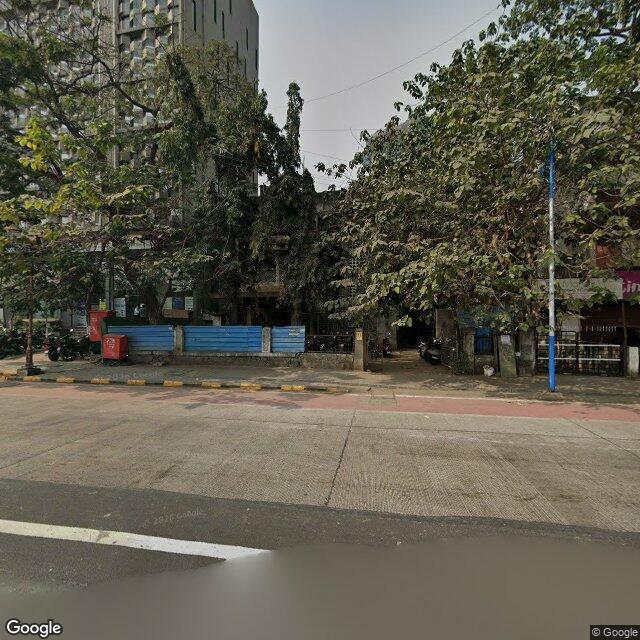

At the gate

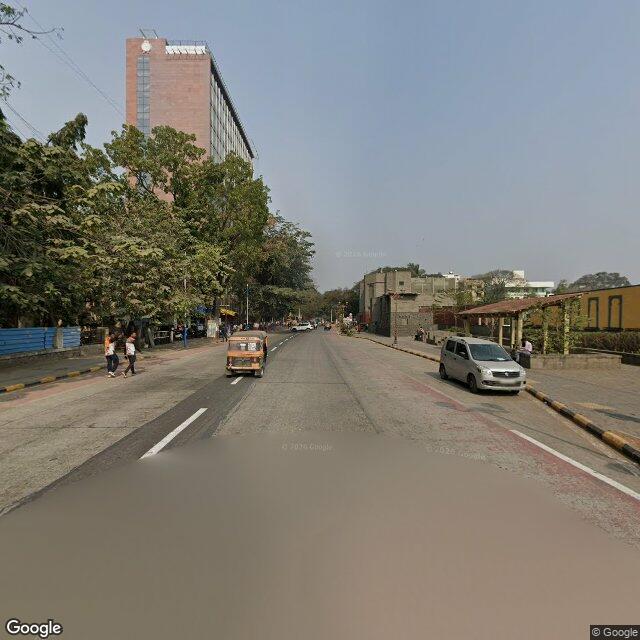

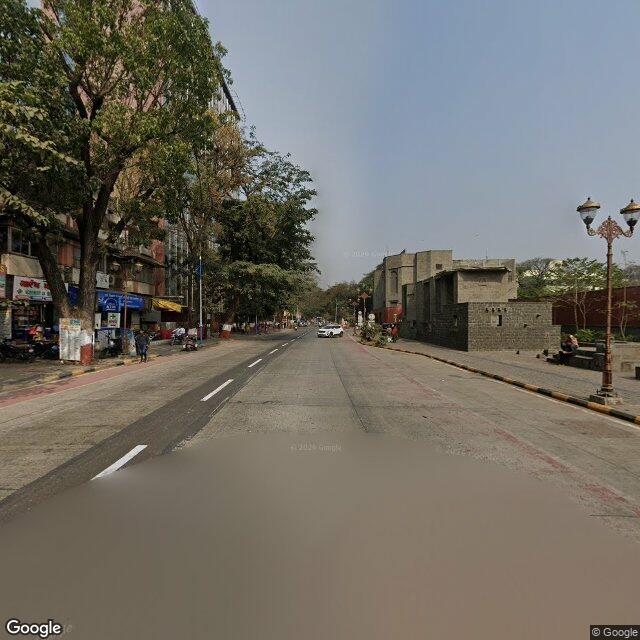

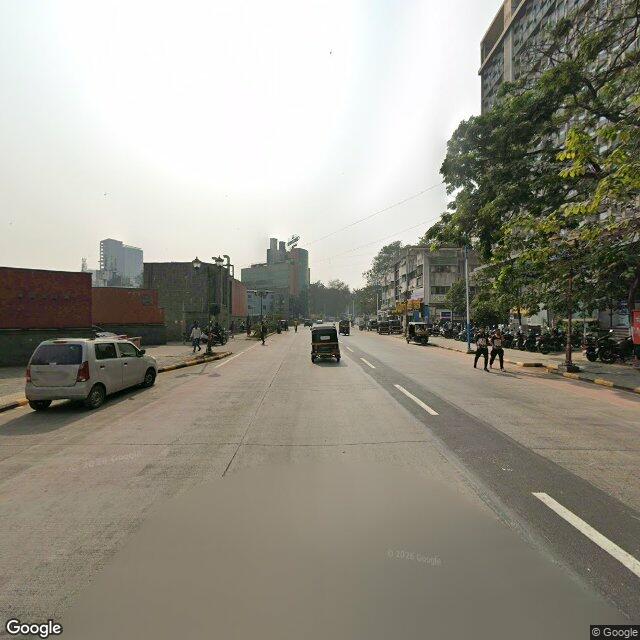

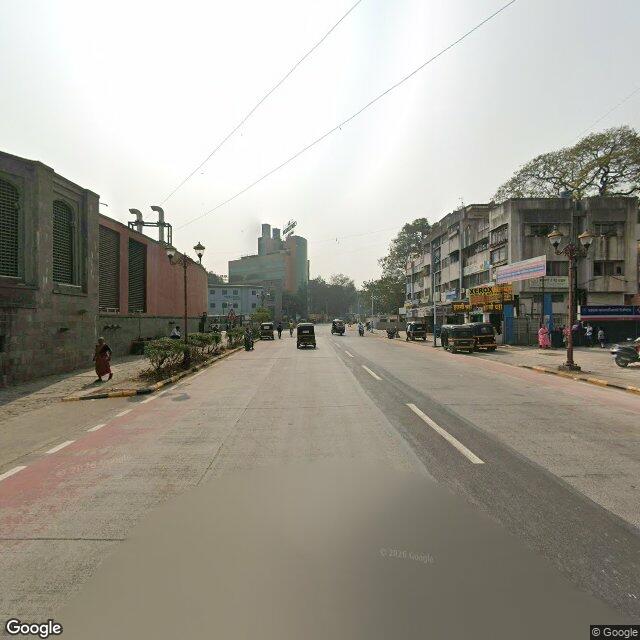

On the frontage road

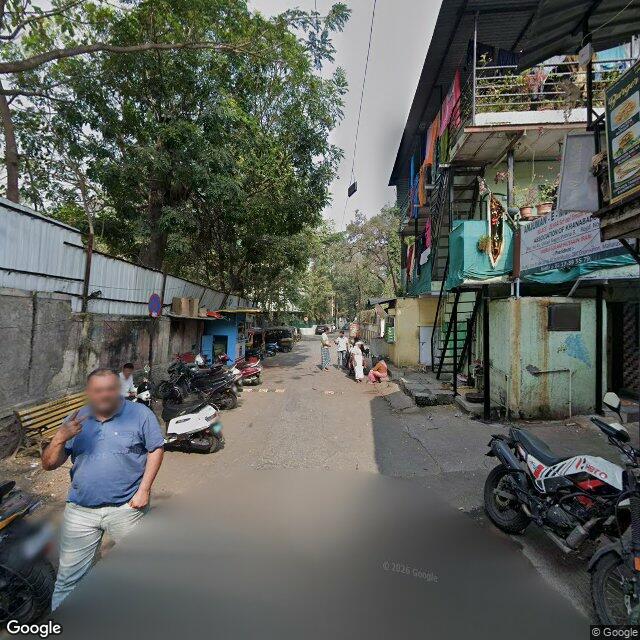

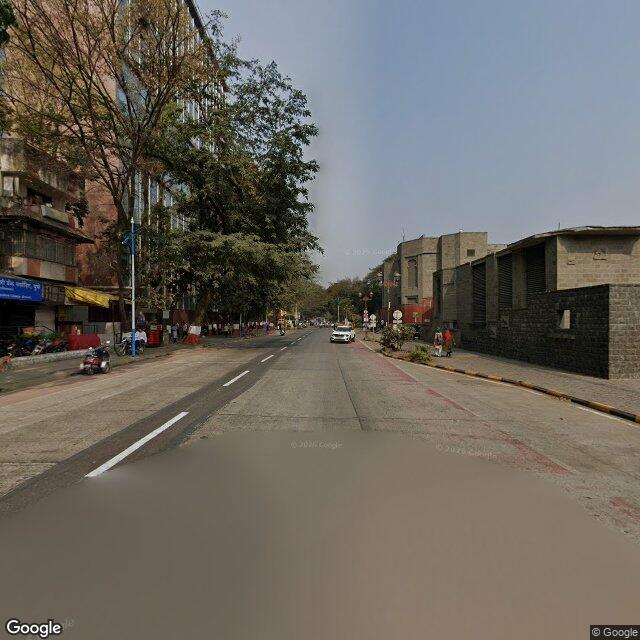

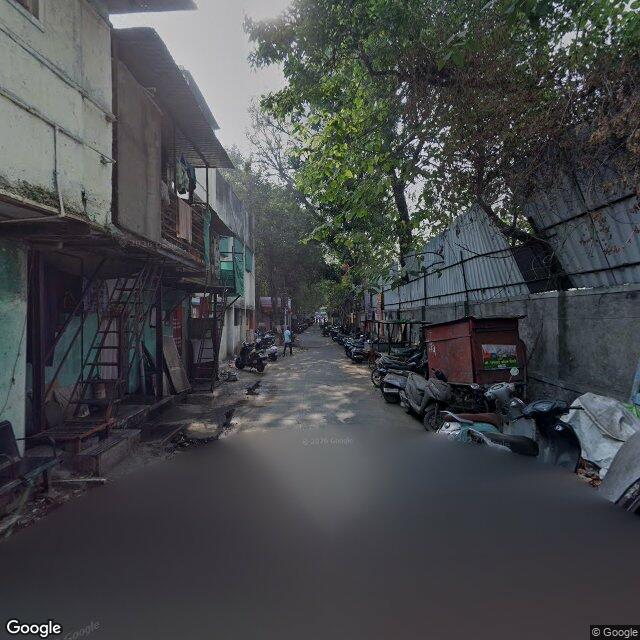

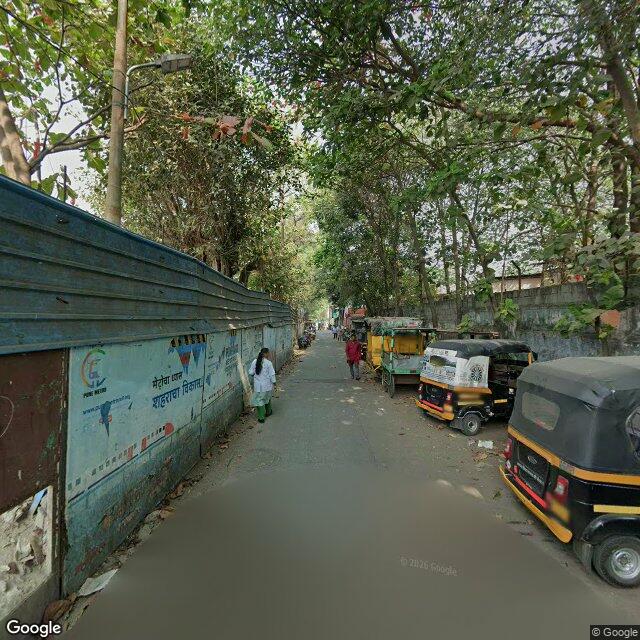

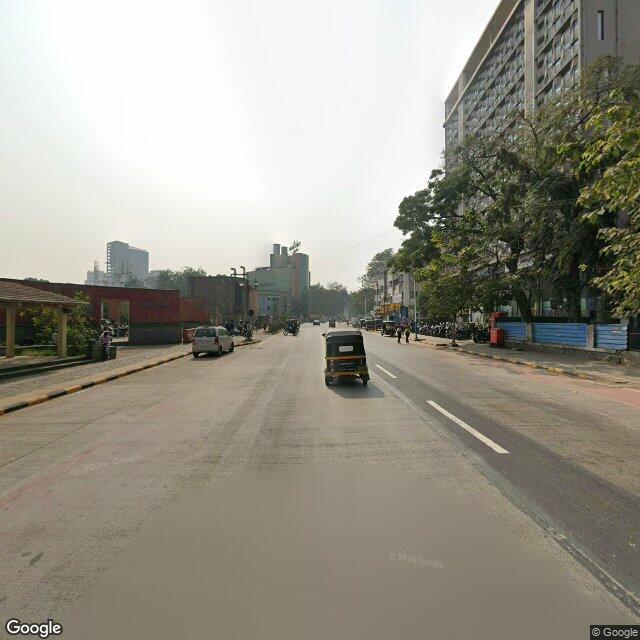

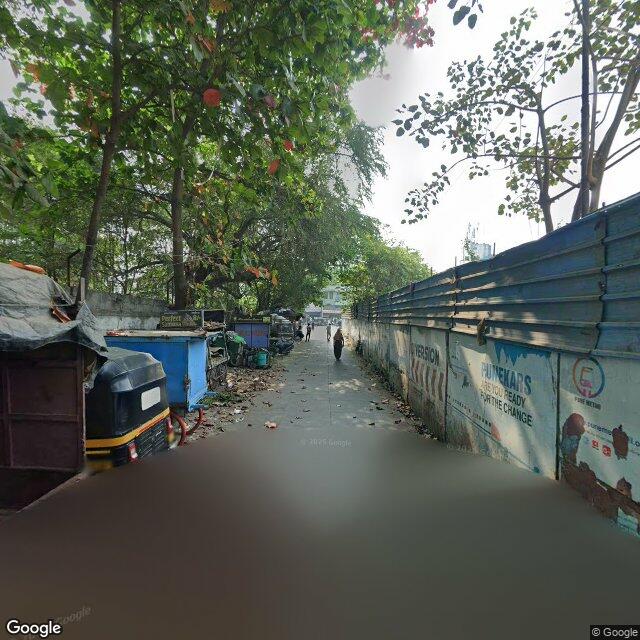

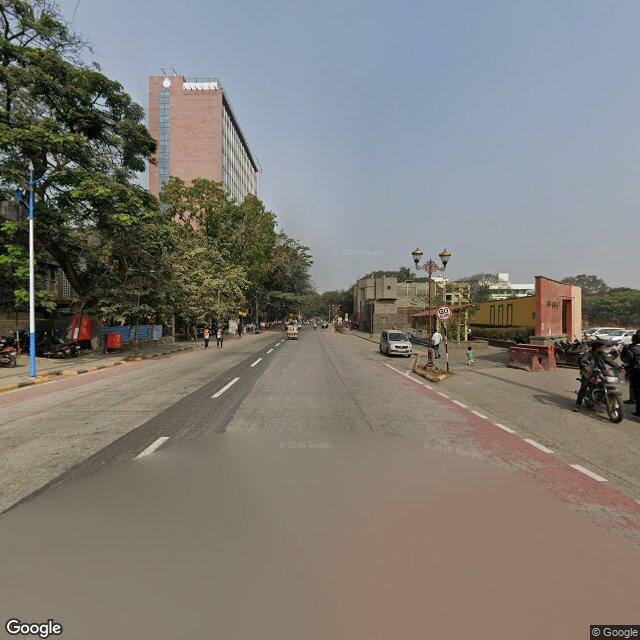

Along the street

Some captures sit on neighbouring lanes; older ones are shown greyed and were used only for context.

What must be fixed · 5 actions

What would make this road safe — and who owns each fix

Each action maps to a failing check, the relevant IRC:SP:32-2023 clause, and the responsible agency. Agency labels are provisional and correctable through the dispute channel.

01Lifts P1

Install a speed table or twin speed humps within 30 m of the gate

IRC:SP:32-2023 §5.13 · Table 5.1MCD / PWD · provisional

Speed humps near schools roughly halve child-pedestrian injury odds (Tester 2004); 30 km/h calmed zones ≈ 40% fewer casualties (Grundy 2009).

02Lifts P2

Mark a crossing within 20 m of the gate — table-top preferred

IRC:SP:32-2023 §5.4.3MCD / PWD · provisional

Raised crossings cut vehicle speeds at the exact conflict point.

03Lifts P4

School-zone warning signs on both approaches with the speed limit

IRC:SP:32-2023 §5.8MCD / PWD · provisional

The zone must announce itself to drivers before the gate.

04Lifts P3

Provide a continuous clear walking edge on the school side

IRC:SP:32-2023 §5.4.1MCD / PWD · provisional

A continuous footpath keeps children off the carriageway on the approach, not only at the gate.

05Lifts P5

Add space and a marked pick-up bay off the carriageway at the gate

IRC:SP:32-2023 §5.2MCD / PWD · provisional

Children should not step from the gate into a moving traffic lane.

Responsible-agency labels come from the CFI field instrument’s mapping and are correctable via the dispute channel.

Re-audit timeline

2026-08-06Audited

2027-02-06Re-audit due

Every published road is re-read every six months, or as soon as new Street View imagery lands, or on a sustained dispute.

Something wrong on this page?

The entrance, the imagery, a finding — if any of it is wrong, tell us. A dispute pauses this page while the audit is re-verified, and the correction is logged in the public record.

Dispute this audit
